Finance and Economics Discussion Series: 2009-03 Screen Reader version

GSE Activity and Mortgage Supply in Lower-Income and Minority Neighborhoods: The Effect of the Affordable Housing Goals

Neil Bhutta1

Keywords: GSE, regression discontinuity, FHA, affordable housing goals, homeownership, subprime mortgage, underserved areas


I estimate the credit supply effect of the Underserved Areas Goal (UAG), which establishes GSE purchase goals for mortgages to lower-income and minority neighborhoods. Taking advantage of discontinuous census tract eligibility rules and abrupt changes in tract eligibility in 2005, I find evidence of a small UAG effect on GSE activity, and this increase does not appear to crowd-out FHA and subprime lending. The results also indicate that the GSEs exploit the law's lack of precision-targeting, yielding effects that might diverge from the law's intent.

JEL Codes: G21, G18, R38

1. Introduction

In the 1990's Congress promoted policies to increase credit access and homeownership among lower-income and minority neighborhoods and households. Beliefs that credit access and homeownership entail individual and societal benefits (DiPasquale and Glaeser 1999, Aaronson 2000, Kubrin and Squires 2004, Garmaise and Moskowitz 2006), and that discrimination (Munnell et al 1996) and information externalities (Lang and Nakamura 1992) plague credit markets motivated such actions. One such policy is the "GSE Act", which calls on Fannie Mae and Freddie Mac to devote a large share of their business (a combined $1.5 trillion in mortgage asset purchases in 2007) to "underserved"groups. In light of recent turmoil many argue that such policies pressed lenders to take undue risks.2 In this paper I examine the first-order question of the extent to which this policy has affected these institutions'allocation of credit.

Before being conserved in 2008, Fannie Mae and Freddie Mac operated in the secondary mortgage market as private "government-sponsored enterprises"(GSEs), with implicit and explicit financial benefits from the government (CBO 2001).3 In return for their sponsored status Congress expected the GSEs to lower mortgage interest rates for consumers and to promote credit access and homeownership for lower-income and minority groups.4 The 1992 Federal Housing Enterprise Financial Safety and Soundness Act (or "GSE Act") formalized this latter responsibility. It instructed the Department of Housing and Urban Development (HUD) to create "Affordable Housing Goals"for the GSEs and monitor progress towards those goals.5 The 2008 Housing and Economic Recovery Act establishing a new GSE regulator retains the goals.

Figure 1 shows changes over time in the three HUD-determined goals (thick black lines) and the GSEs'corresponding purchase shares.6 Increases in the GSEs'goal-qualifying purchase shares tend to precede increases in the goal levels, suggesting the goals do not bind. Non-binding goals could result from GSE and/or political pressure on HUD to weaken the goals, or excessive concern on HUD's part of focusing GSE activity on lower-income groups. On the other hand, GSE anticipation of a rise in the goals might lead them to alter their activity prior to actual goal increases. The GSEs may also want to maintain a cushion above the goals, which would make the goals appear as though they are not binding.7 Also, in raising the goals in 2005, HUD stated their intention to make the GSEs stretch to reach the goals (Federal Register 2004).

In this paper, I use mortgage application data collected under the Home Mortgage Disclosure Act (HMDA) and evaluate the Underserved Areas Goal's (UAG) impact on GSE purchase activity and mortgage credit flow in targeted neighborhoods.8 A purchased loan counts towards the UAG if the loan is for an owner-occupied property in a census tract that has a median family income (MFI) less than or equal to 90 percent of the MSA MFI, or minority population share of at least 30 percent and MFI less than or equal to 120 percent of the MSA MFI. I use these discontinuous rules to help identify the UAG's impact, in essence testing whether tracts that barely meet the eligibility criteria experience greater credit flows than tracts that barely miss being targeted. Figure 2 illustrates this strategy. The discontinuity in the non-parametrically fitted lines at the income cutoff provides initial evidence of a modest UAG-induced increase in GSE purchases between 1997 and 2002.

The statistical analysis to come indicates a discontinuity in GSE purchases of about 4 percent over this period and a (presumably) subsequent 3 percent discontinuity in "GSE-eligible"mortgage originations. Also, I do not find evidence that this increased GSE activity crowds-out GSE-ineligible lending (e.g. FHA and subprime), which would be undesirable in that it would weaken the goal's effect on homeownership. Discontinuity estimates at the minority share threshold for the same period seem to suffer from omitted variables bias. Nevertheless, they similarly suggest against a large UAG-effect.

I also take advantage of abrupt changes in tracts'target status that arise because of intercensal tract demographic and income changes. I use these changes to help identify the UAG's effect in 2005 and 2006, years when HUD increased the goal sharply and years that have contributed heavily to the GSEs'credit losses.9 While loan growth between 2001/02 and 2005/06 is highly positively correlated with becoming targeted in 2005, the threshold analyses I conduct suggest this relationship, for the most part, is not causal.

I find only that a subset of newly targeted tracts - those whose relative income changed only slightly during the 1990's, but just enough to cross the threshold - experienced an increase in GSE purchases. This evidence conforms to the intuition that the GSEs would expand in relatively stable neighborhoods where expansion is least costly, and suggests that the GSEs goal-related efforts conflict with the law's intent to help stabilize neighborhoods in decline.

Overall, the results indicate that the goals bind but only slightly expanded lower-income and minority credit flow since the mid-1990s. Moreover, the model I present in Section 4 indicates that the discontinuity estimates overstate the UAG's effect since the GSEs optimally reduce their activity in not-targeted neighborhoods. Under more extreme conditions, the UAG would reduce GSE activity in both targeted and not-targeted areas.

In the next section I discuss how I build on previous research. Then I describe the data and regression discontinuity. In Sections 4 and 5 I focus on the UAG's effect at the income eligibility threshold for the 1997-2002 and 2005-2006 periods, respectively, and at the minority population share threshold in Section 6. Finally, I summarize and discuss some important caveats and policy considerations going forward.

2. Previous Research

Quercia et al (2003) describe and simulate the potential benefits of GSE flexible lending products and find that they could have a substantive effect on minority homeownership barring crowd-out of FHA lending. More similar to this paper, An et al (2007), An and Bostic (2008) and Gabriel and Rosenthal (2008a) use census tract level variation in target status to estimate the UAG's effect on housing and credit outcomes in 2000.10Since the UAG level rose from 24 percent to 38 percent after 2000, I fill an important gap by incorporating post-2000 outcomes. Also, I address some identification concerns with previous work, as I now describe.

An et al (2007) and An and Bostic (2008) estimate the UAG's effect on neighborhood housing outcomes (e.g. housing values) and FHA market share, respectively, the latter testing for crowd-out. Both papers use a two-stage strategy, where in the first stage they estimate the link between tracts'target status and tracts'GSE-purchased share of originations. Although both papers conclude that the GSE Act substantively affects the outcomes of interest, neither paper's first-stage results provide strong evidence that target-status affects GSE activity. Gabriel and Rosenthal (2008a), focusing on total credit flow in 2000, find no evidence of a UAG effect.11

To mitigate omitted variables bias these papers focus on census tracts within five to ten percentage points of the relative income cutoff. But tract characteristics are highly correlated with relative income around the cutoff, and not controlling precisely for this correlation biases downward UAG-effect estimates. Indeed, An et al (2007) find that GSE market share is nearly 13 percentage points lower in treatment versus control tracts.12

Also, previous researchers have combined variation in target status stemming from differences in tract income and minority population share, which will generate downward bias. In other words, including all tracts with minority share above 30 percent in the treatment group makes the treatment and control groups less comparable. In this paper, I address both issues by identifying the UAG's effect solely from small differences in tract relative income, as in Figure 2. (I perform a separate, analogous analysis at the minority share threshold.)

Finally, using loan share variables yield estimates that are difficult to interpret. Take for example (1) below, which regresses tract-level FHA loan share on GSE-purchased share, similar to An and Bostic (2008):

(1)  \left( {\frac{FHA-Insured}{originations}} \right) _{i} =\alpha +\beta\left( {\frac{GSE\mbox{-}Purchases}{originations}} \right) _{i} +\mathrm{\mathbf{X}}_{i} \mathrm{\mathbf{\theta}}+\varepsilon_{i}

Instrumenting GSE-purchase share with a UAG-treatment dummy variable as in previous research is problematic since the UAG may raise originations, which reduces the dependent variable even if the GSEs do not crowd-out FHA lending.

Another related issue is that HMDA data do not include GSE purchases of seasoned loans.13 Imagine the extreme case where the GSEs react to the UAG only by purchasing seasoned loans, which nevertheless frees lenders'capital and increases originations. In this case, one would estimate that the UAG reduces GSE-purchased shares. With these issues in mind, I estimate separately the impact of the UAG on (1) the number of GSE purchases reported in HMDA, (2) the total number of "GSE-eligible"originations and (3) the number of "GSE-ineligible"(e.g. FHA, subprime) loans in targeted tracts.

3. Data & Empirical Strategy

3.1. Overview and Terminology

In this section and the next, I focus on estimating the UAG's effect at the income threshold between 1997 and 2002. In Section 6 I adapt this framework to estimate the UAG's effect at the minority share threshold.

Recall, GSE purchases of mortgages for owner-occupied properties in census tracts with a ratio of tract-to-MSA median family income less than or equal to 0.90 count towards meeting the UAG. This ratio is the "assignment"variable and I refer to it as TM. I estimate the UAG's impact by measuring the jump in GSE purchase and loan volume at TM = 0.90.

HUD measures TM using decennial Census data. Between 1994 and 2002 almost all census tracts had a constant value of TM based on 1990 Census data and 1993 MSA definitions.14 In 2005, regulators re-calculated tracts'TM using 2000 Census data and new MSA definitions. In Section 5, I explain how I use this change to identify the UAG's effect in recent years.

3.2. Data & Summary Statistics

I generate tract-level mortgage data from lenders'records submitted under the Home Mortgage Disclosure Act (HMDA). Since 1990, HMDA has required covered lenders to provide information on individual mortgage applications; and since 1993, HMDA has covered most lenders, providing a nearly complete picture of MSA mortgage lending (Avery et al 2007).

Table 1 provides a list and short description of HMDA variables. Several are important for this analysis, including the census tract of the property where the loan is made15; lender ID, which I combine with data from HUD to identify subprime loans16; loan amount; disposition of the loan (e.g. approved); loan purpose (e.g. refinance); type of loan (FHA, VA or conventional); and the purchaser of the loan (e.g. Fannie Mae).

Although the GSE Act covers rural and urban areas, I focus on MSA census tracts since HMDA data are unreliable in rural areas (Avery et al 2007). I also exclude census tracts in Hawaii and Alaska and those in MSAs formed between 1993 and 1999 in order to maintain a constant set of geographies. I also drop tracts that in 1990 had fewer than 100 housing units, zero specified owner-occupied units, or more than 30 percent of the population living in group quarters. I also drop tracts with an extremely high ( >10) or low ( <0.2) number of originations between 1997 and 2002 per (1990) owner-occupied unit. Nevertheless, I use about 98 percent of MSA census tracts within five percentage points of the GSE-eligibility income cutoff.

Table 2 provides means of tract-level mortgage activity and tract characteristics.17 I use only owner-occupied home purchase and refinance loans from the HMDA data. Among these loans, I define "GSE-eligible"loans as conventional (i.e. not FHA- or VA- insured) originations with loan amounts below the GSE single-family conforming loan limit and not originated by a subprime lender. Despite this terminology, some "eligible"loans may not actually conform to GSE standards. Rather, eligible loans are those most likely to conform to GSE standards given the information available in the HMDA data. Panel A indicates that eligible loans account for about two-thirds of all loans across all sample tracts and the GSEs directly purchase just over 40 percent of eligible loans.18 Table 2 also reveals that eligible mortgages in tracts just below the cutoff (first column) are about 10 percent lower than in tracts just above.

The GSEs purchase few (less than five percent) "GSE-ineligible" loans. FHA-insured mortgages and loans from subprime specialists make up most of the loans in this group; VA-insured mortgages and loans above the single-family conforming loan limit also contribute.19

Although tracts below the cutoff experienced less credit flow than those above in 1997-2002, initial housing and demographic characteristics (panel B) suggest that these two groups of tracts are substantively different. In other words, tract characteristics change quickly as a function of TM around the cutoff. Next, I describe the regression discontinuity strategy I use to help distinguish the UAG's independent effect from the effect of these underlying differences in tract characteristics.

3.3. Empirical Strategy: Regression Discontinuity

Consider the following tract-level regression of potential outcomes such as mortgage origination volume on a treatment indicator variable,  D_{i}= 1[TM _{i }\le0.90]:

(2)  Y_{i} =\alpha+\beta D_{i} +e_{i}

The following expression captures the main idea of the regression discontinuity design:

(3)  \mathop {\lim }\limits_{h\to0} \left\{ {\mathrm{E}[e_{i} \vert0.90-h\le TM_{i} \le0.90]-\mathrm{E}[e_{i} \vert0.90<TM_{i} \le0.90+h]} \right\} =0

(3) implies that tracts arbitrarily close to the cutoff (TM = 0.90) are identical in expectation (except, of course, for their eligibility status). In other words, under (3) one can interpret a discontinuity in outcomes across the cutoff as a treatment effect.

One approach I take to estimate  \beta is to compare the mean of  Y_{i} across the cutoff using tracts within a small distance ("bandwidth"),  h, from the cutoff. However, since mortgage activity is positively correlated with tract income (Table 2) such nonparametric estimates of  \beta from will tend to be negatively biased (Porter 2003). I try to mitigate this bias by using a small bandwidth ( h = 0.02), and adding tract-level covariates into the regression, including a lagged ("pre-treatment") value of the outcome variable.

Imbens and Lemieux (2008) recommend local linear regression to estimate  \beta. This strategy controls explicitly for the correlation between lending and tract income, fitting a line to the data within a distance  hon either side of the cutoff. The difference between the intercepts of these two lines gives an estimate of  \beta, as in the following regression model:

(4)  Y_{i} =\alpha+\beta D_{i} +TM^{\prime}_{i} +TM^{\prime}_{i} \ast\mathrm{\mathbf{1}}[TM_{i} <0.90]+\mu_{i} \,,

where  TM^{\prime}_{i} =TM_{i} -0.90. The term  TM^{\prime}_{i} +TM^{\prime }_{i} \ast\mathrm{\mathbf{1}}[TM_{i} <0.90] in (4) is the "control function". Notably, (4) only controls for TM. Under (3), and assuming a linear control function is correct, other controls are not necessary to estimate  \beta consistently; the control function does the job. But including a good set of controls provides a specification check (i.e. the estimate of  \beta should not change considerably when they are added) and improves efficiency (Imbens and Lemieux 2008).

This empirical test also assumes that there is no other reason, such as another policy, for a discontinuity in credit flows at the UAG cutoff. The Community Reinvestment Act encourages federally insured deposit institutions to provide credit in lower-income neighborhoods and is structured similarly to the UAG, but targets census tracts with TM below 0.80.20

4. Results

4.1. The Effect of the UAG on GSE Purchasing Activity

Table 3 displays various estimates of the UAG's effect on GSE purchase activity and their standard errors clustered at the MSA-level. The first three columns show "non-RD" estimates. The estimate in column 1 represents the difference in mean GSE purchases across the cutoff, adjusting only for tract size and MSA, and shows the GSEs purchase about 10 percent fewer loans in tracts with TM between 85 and 90 relative to those between 90 and 95.21 After adjusting for the other tract characteristics listed in Table 2, the GSEs still purchase about 3 percent fewer loans in tracts below the cutoff (column 2). Since the GSE Act should not cause the GSEs to reduce their share of lower-income purchases, I consider these "non-RD" regression models to be misspecified.

As I mentioned in Section 2, some tracts with TM between 90 and 95 are actually targeted since their minority share in 1990 was at least 30 percent, and previous research mixes the two sources of variation in target-status, which may bias downward estimates of  \beta. To illustrate, column 3 shows the result from using the true target-status variable,  D*, rather than  D as in columns 1 and 2. The estimate does fall further below zero by about one percentage point.

Next I institute the local linear RD approach, similar to Figure 2. Controlling only for TM in column 4 raises the estimate substantially relative to columns 1 and 2, implying a UAG-effect of 3.4 percent. I include tract and MSA controls in column 5, and (log) GSE-purchases between 1994 and 1996 in column 6. This latter variable helps control for unobserved tract fixed effects.22 As I mentioned earlier, including covariates should not affect the point estimate substantively if the identification assumptions are plausible. The point estimates in columns 5 and 6 are quite similar to column 4, and that in column 6 is significant at the 10 percent level.23

Columns 7-9 show "nonparametric" RD estimates (in that they do not control parametrically for TM) with a bandwidth ( h) of just 0.02. The column 7 specification is identical to that in column 2, except for the difference in bandwidth. This reduction in bandwidth raises the point estimate by nearly five percentage points. Including the lag in column 8 raises the point estimate somewhat to 0.033, nearly identical to the baseline RD estimate (column 4), and is significant at the five percent level.24

Finally, in column 9 I use  D as an instrument for  D *. Although  D is an imprecise measure of tract target status since high-minority tracts are also targeted, I have used  D thus far as the regressor of interest because it is plausibly exogenous given TM. Instrumental variable (IV) estimation in column 9 scales the estimate in column 8 by the coefficient on  D from a first-stage regression of  D * on  D and the other regressors in column 8. IV raises the point estimate, as expected, by about one percentage point indicating that the UAG increased GSE purchases by just over 4 percent between 1997 and 2002. This estimate understates the UAG's effect to the extent that the GSEs purchase seasoned loans in response. Next, I explore how the UAG affected overall credit flow.

4.2. The UAG's Effect on Credit Flow

Table 4 shows RD estimates of the UAG's effect on eligible and non-eligible originations. To be more concise, I show only the specifications corresponding to those in columns 7,8 and 9 in Table 3. Other specifications shown earlier generate similar results. Columns 1-3 present estimates for (log) GSE-eligible originations. As before, including the lag as an independent variable yields a slightly higher and statistically significant estimate of 2.7 percent, and IV (column 3) increases the estimated effect to 3.4 percent.

If discontinuities exist at points other than TM = 0.90, that would confound the interpretation of the discontinuity at TM = 0.90. Figure 3 shows estimated discontinuities in (log) GSE-eligible originations using the specification in column 2 from Table 4 at 30 different values of TM. Other than the discontinuity at 0.90, there is a negative discontinuity at 0.88 and a positive discontinuity at 0.81. Although it is reasonable to expect one or two false positives, these discontinuities are somewhat disconcerting.25

Finally I test whether increased GSE activity crowds out FHA and subprime lending. The GSEs' introduction of mortgage products with more flexible underwriting could displace FHA and subprime loans that typically cater to marginal borrowers (Quercia et al 2003). Alternatively, increased GSE outreach and demand for mortgages in targeted areas might shift borrowers at the margin of prime credit quality away from FHA loans and subprime lenders, as An and Bostic (2006, 2008) argue. Along the same line, a reduction in conforming loan rates due to increased GSE demand might help otherwise non-prime customers have a qualifying payment-to-income ratio. The estimates of the UAG's effect on GSE-ineligible lending in columns 4-6 of Table 4, however, do not provide evidence of crowd-out. All of the point estimates are positive, small (just over 1 percent) and not statistically significant.26

4.3. Discussion

The findings thus far demonstrate that the GSEs have some degree of market power. If not, a shift in their purchases towards targeted neighborhoods would not affect the ultimate allocation of credit. Also interesting is the absence of crowd-out. This finding does not conform to the hypothesis that the GSEs compete with FHA and subprime lenders at the margin. One possible explanation is that sharp differences exist between non-prime and marginally prime borrowers such that a small change in GSE underwriting standards or conforming loan prices does not affect the non-prime borrowers.

The 3.4 percent estimated effect on GSE-eligible lending in Table 4 translates into about 23 extra home purchase and refinance originations per tract at the cutoff from 1997 to 2002.27 Applying this number to the roughly 1100 sample tracts within two percentage points below the cutoff establishes a lower bound on the aggregate impact of the UAG of about 25,000 loans from 1997 to 2002. Less conservatively, if the UAG had a constant treatment effect in tracts with TM between 0.70 and 0.90, it would have generated just over 160,000 extra home purchase and refinance loans between 1997 and 2002.28 ^{, }29

However, the discontinuity estimates overstate the credit expansion in targeted areas to the extent that the GSEs reduce credit supply in not-targeted neighborhoods.30 To illustrate, consider the following model. The GSEs purchase mortgages, m, in lower- ( L) and higher- ( H) income neighborhoods at a price,  p. They then produce securities,  M, backed by these mortgages which they sell to investors for a fee,  g. ^{ }% 31 The GSE objective function therefore is:

(5)  \prod=g\cdot M-m_{L} \cdot p_{L} (m_{L} )+m_{H} \cdot p_{H} (m_{H} )

I assume that the GSEs exert some market power (i.e.  p^{\prime}(m)>0). I also assume that fewer mortgages of a given credit quality can be made in lower-income neighborhoods at a given price. Figure 4 illustrates equilibrium in the absence of the UAG. The GSEs lower-income purchase share is  m_{L}% ^{\ast}/(m_{L}^{\ast}+m_{H}^{\ast})\equiv A_{0} .

Now imagine that HUD imposes a binding constraint, A>A_{0} , so that the GSEs maximize (5) subject to  m_{L}^{/}(m_{L}^{+}m_{H}^{)}\ge A. While this constraint is likely to increase GSE purchases in lower-income neighborhoods, it will reduce  m_{H}^{\ast} since additional higher-income purchases make attaining the UAG more difficult. In effect, the constraint pushes the marginal cost curves towards each other (dotted lines in Figure 4) and therefore suggests that any measured discontinuity in the data reflects a combination of increasing credit supply below the cutoff and reduced credit supply above the cutoff.32 More pessimistically, the model suggests that if the supply elasticity of  m_{L} is very high relative to that of  m_{H} , the UAG could result in fewer GSE purchases in both neighborhoods.

5. The Underserved Areas Goal and GSE Activity in 2005 and 2006

5.1. Basic Empirical Strategy & Summary Statistics

In addition to cross-sectional variation, TM also varies over time. HUD updated TM in 2005 to reflect tract and MSA income measured in the 2000 Census and new MSA definitions. I refer to the new value as TM _{new} and the old value as TM _{old}. I use the set of tracts not targeted through 2002 (i.e. TM _{old }> 0.90) and the change in target status for some of them (i.e. TM _{old }> 0.90 and TM  _{new }\le 0.90) to identify the UAG's effect on credit supply in 2005 and 2006. ^{ }33

For a sample of tracts not targeted through 2002, consider the following model: ^{ }

(6)  \Delta Y_{i} =\alpha+\beta\Delta D_{i} +\Delta e_{i}

where  \Delta represents the change between 2001/02 and 2005/06 and  \Delta D_{i} =\mathrm{\mathbf{1}}(TM_{i,new} \le0.90\vert TM_{i,old} >0.90). Equation (6) is not generally identified since unobserved factors could drive both changes in treatment status and changes in mortgage activity (i.e. unobserved deterioration in neighborhood quality could cause both treatment status and mortgage activity to change). However,  \Delta D is a deterministic function of TM _{new} (given that the sample is comprised of tracts with TM  _{old} \quad> 0.90). This observation leads to the following estimating equation:

(7)  \Delta Y_{i} =\alpha+\beta\Delta D_{i} +E \lbrack\Delta e_{i} \vert TM_{i,new} ]+\eta_{i}

where  \eta_{i} =\Delta Y_{i} -E \lbrack\Delta Y_{i} \vert TM_{i,new} ]. The third term in (7) represents the control function. Again, this term is a function of the assignment variable, TM _{new}, that controls for all variables correlated with  \Delta D and  \Delta Y not explicitly included in the regression.

Intuitively, this strategy aims to compare the change in lending in tracts that just switched treatment status to those that almost switched. (7) therefore merges a difference-in-difference (DD) identification strategy with an RD strategy.

Table 5 provides group means of various housing and credit flow variables for tracts that switched treatment status ("switchers") versus tracts that did not switch ("non-switchers"). I limit the sample to tracts used in the earlier analysis (see Section 2.2) with TM _{old}between 0.90 and 1.10 because most switchers (1850 of 1999 tracts) come from this group. I also exclude tracts with minority population share in 1990 above 0.30 since these would have been targeted under the UAG between 1997 and 2002. Finally, I use tracts with only minor boundary changes between 1990 and 2000 so that I can reliably compare pre and post outcomes.34

Not surprisingly, comparing TM _{old}and TM _{new} reveals that switchers and non-switchers had opposing income trends in the 1990's. The other tract characteristics in Table 5 also demonstrate these divergent trends. These differential pre-trends underline the importance of implementing the RD strategy to isolate the effect of switching into the treatment group.

Panels C and D show that GSE-eligible origination volume fell between 2001/02 and 2005/06, and more so for non-switching tracts.35At the same time, ineligible lending rose, indicative of the growing subprime market share during this period.36 GSE-purchase shares of eligible mortgages fell significantly for both switchers and non-switchers. One reason may be that an increasing number of "eligible" loans were not conforming during this period. Finally, the GSEs still purchase very few subprime-lender originated loans in 2005/06. Notably, the GSEs also purchase very few higher-priced mortgages (not shown), an alternative proxy for subprime mortgages in the HMDA data.

5.2. Results

The first three columns of Table 6 provide estimates of the effect of the UAG on GSE purchases in 2005/06. Column 1 shows that GSE purchase growth was ten percentage points higher in switching tracts, but because I use a broad window around TM _{new}=0.90 ( h= 0.20) this estimate lacks a clear causal interpretation.

In column 2 I use a bandwidth of 0.05 and control for a few tract characteristics. This estimate has a clearer causal interpretation and is about 80 percent smaller than that in column 1 (0.021 versus 0.105).

If it is more costly for the GSEs to expand in sharply deteriorating tracts, then the UAG's effect on credit supply should be a function of how much the tract's income has fallen.37 In column 3 I show the results from a regression ( h = 0.05) that allows for the effect of switching into the treatment group to vary with TM _{old} :

(8)  \Delta Y_{i} = \alpha + \beta_{1} \Delta D_{i} + \beta_{2} \Delta D_{i} \ast TM^{\prime}_{i,old} + \lambda TM^{\prime}_{i,old} + \mathrm{\mathbf{X}}_{i} \mathrm{\mathbf{\delta}}+\eta_{i}

where  TM^{\prime}_{i,old} =TM_{i,old} -0.90. The coefficient  \beta_{1} represents, in essence, the estimated effect of the UAG for tracts that fell from immediately above the threshold to immediately below.

The results imply that the UAG had nearly a six percent effect on GSE purchases for these "stable" tracts, while the estimate of  \beta_{2} indicates that this effect trails off by 0.5 percentage points per unit increase in TM _{old}. Columns 6 and 9 show similar results, but for GSE -eligible and -ineligible originations, respectively. Although neither estimate is statistically significant, the sign and size of the estimates point toward a modest increase in eligible originations in stable, switching tracts, and some crowding-out of FHA and subprime lending.38

Overall, these results do not support the notion that the sharp increase in the UAG goal level in 2005 and the relative rise in credit flow in newly targeted tracts were causally related. The evidence suggests the UAG's effect was limited to stable tracts. In so far as these stable neighborhoods are a relatively low priority for policy advocates, these results demonstrate how the broadly-targete
d GSE Act might interact with the GSEs' profit-motive to yield effects that are out of line with the intent of the law.

6. Discontinuity Estimates at the Minority Population Share Eligibility Threshold

From 1997 to 2006, the Underserved Areas Goal (UAG) roughly doubled from around 20 percent to nearly 40 percent of GSE purchases. In the previous two sections, I provided evidence suggesting that this large change in the goal had only a small effect on credit flow in census tracts just below the income threshold. I now look for evidence of an effect at the minority population share threshold using analogous techniques. As mentioned earlier, GSE purchases of mortgages in tracts with minority population share (minshare) of at least 30 percent and TM \le1.20 count toward the UAG. Since there are very few high minority tracts around the TM = 1.20 cutoff, I focus on the minority cutoff (i.e. minshare = 0.30).

I first test for a discontinuity in lending at minshare = 0.30 between 1997 and 2002, similar to the exercise presented in Section 3. Table 7 provides the main results. The sample for the test includes tracts within 3 percentage points of the minshare cutoff (i.e.  h = 0.03) and TM less than 1.20. As in Table 4, I show specifications excluding a control function in minshare.

Unfortunately, the negative estimates in Table 7 (although none are statistically significant) suggest that the model is not well identified. Again, the UAG should not cause a relative decline in targeted purchases. Reinforcing this view, I also find a negative and almost statistically significant difference in GSE-ineligible lending across the cutoff (not shown in Table 7) of -0.034 using the specification in column 2 of Table 7.

Although I can not precisely interpret the point estimates, they still suggest against the UAG having a large effect at the minority population share cutoff. The near equivalence of the point estimates in columns 1 and 2 implies that, conditional on the included covariates, there was no substantive difference across the cutoff in GSE-eligible lending in 1994-1996. Therefore, lending grew somewhat less quickly in targeted tracts relative to not-targeted tracts after 1996. While the UAG may have reduced the difference in growth across the cutoff, it is unlikely that the two groups of tracts are so different that credit flows would have trended in vastly different ways in the absence of the UAG.

I next estimate the UAG's effect at the minority threshold in 2005 and 2006. Table 8 shows the results of a test similar to that described in Section 5, except that I now focus on tracts that became targeted after 2005 because of an increase in their minority population share. One factor driving increases in minority population shares in the 1990's was a surge in immigration and the tendency for immigrants to settle in immigrant neighborhoods (Cutler et al 2008).

Again, I use a set of tracts not targeted prior to 2002: tracts with TM _{old} between 0.90 and 1.30 and with minority population share in 1990 (minshare _{old}) between 0.15 and 0.30. Then for this test,  \Delta D_{i} =1 if tract  i's minority population share in 2000 (minshare _{new}) is at least 0.30.

Table 8 is structured identically to Table 6. Columns 1, 4 and 7 provide estimates using a broad window, controlling only for MSA, and show that tracts that crossed the minority population share threshold between 1990 and 2000 experienced relatively greater loan growth between 2001/02 and 2005/06. Unlike in Table 6, growth in FHA and subprime lending is strongly correlated with growing neighborhood minority population share (column 7).

As in Table 6, the results in columns 2, 5 and 8, which use a smaller bandwidth and therefore have a more plausible causal interpretation, are considerably smaller in magnitude. And again, the negative estimate in column 8 is consistent with crowd out, although its magnitude is very small (-0.0062). Finally, columns 3, 6 and 9 provide IV estimates where I use  \Delta D as an instrument for the true change in treatment status,  \Delta D*. The discrepancy between  \Delta D and  \Delta D* arises because some tracts that do not cross the minority population share threshold still become targeted by crossing the relative income threshold (i.e. TM  \le 0.90), and some tracts that cross the minority population share threshold do not actually become targeted because their relative income in 2000 surpasses 1.20. As expected, the IV estimates for GSE purchases and GSE-eligible loans are larger, but none are statistically significant. Overall, Table 8 provides evidence of a modest but imprecise effect of the UAG on conforming credit flow in targeted neighborhoods.

7. Summary, Caveats and Policy Considerations

In this paper I estimate the impact of the Underserved Areas Goal (UAG) established under the GSE Act by taking advantage of discontinuities in the census tract eligibility rules. Previous research has had difficulty providing evidence of a positive effect of the UAG on credit supply. Using data on more recent outcomes to capture the potential effect of recent sharp increases in the UAG, and addressing identification concerns in previous studies, the results nevertheless suggest that the UAG has had only a limited effect on GSE purchases and total mortgage credit flow, inconsistent with the GSE Act having had a major impact on homeownership and household debt by expanding credit supply to marginal groups.

On the other hand, the other two housing goals (Figure 1) not analyzed in this paper may be more binding for the GSEs. These goals, which target mostly low-income borrowers, may be more difficult for the GSEs to achieve, and attaining them may lead to attainment of the UAG as well in so far as lower-income borrowers tend naturally to live in UAG-targeted neighborhoods.

This analysis might also understate the UAG's effect because the regression discontinuity strategy only identifies the goal's impact for tracts near the eligibility thresholds. While the impact in threshold tracts is small, it could be large in tracts further from the cutoff. However, the finding that the UAG mostly affects relatively stable tracts (Table 7) indicates that the GSEs respond where it is least costly. I suspect that the UAG's effect further from the cutoff is small since expansion costs are likely negatively related to tract income and minority share.39

Finally, due to data limitations I am unable to explicitly address the extent to which the UAG encouraged the GSEs to purchase private-label securities (PLS) backed largely by "goal-rich" non-prime mortgages (Manchester 2007). GSE purchases of PLS peaked in 2005 at $221 billion, compared to $951 billion in direct mortgage purchases that year (OFHEO 2008). Of course, one might expect to observe a discontinuity in subprime mortgage originations if the UAG drove recent GSE PLS purchases and subsequently the market supply of funds for mortgages, but I do not (Tables 6 and 8).

The 2008 Housing and Economic Recovery Act establishes a new GSE regulator and retains the goals, suggesting that the GSEs will reemerge as private entities with public ties. Goals that the GSEs can easily attain yield little public benefit. And easy goals may actually provide a net benefit to the GSEs. For one, the goals even if not binding can provide a convenient "excuse" to take risk. Second, attainment of well-publicized, regulator-established goals promotes a perception that the GSEs help provide certain public benefits, and this perception helps justify the institutions' sponsored status and ensuing advantageous market position. At the same time, elevated goals coupled with the GSEs' profit-motive may have undesired effects. They are more likely to channel funds to stable rather than unstable neighborhoods where society might value the funds most. Higher goals could even reduce GSE activity in targeted neighborhoods as I discuss in Section 4. Finally, elevated goals would encourage the GSEs to take risks that can simultaneously satisfy the profit-motive and the goals, such as recent subprime investments. Because of the GSEs' public ties, debt holders will exert little discipline on the GSEs and thus facilitate the acquisition of risky high-return assets.


Aaronson, Daniel. 2000. "A Note on the Benefits of Homeownership." Journal of Urban Economics, 47(3): 356-369.

Ambrose, Brent W. and Thomas G. Thibodeau. 2004. "Have the GSE Affordable Housing Goals Increased the Supply of Mortgage Credit?" Regional Science and Urban Economics, 34(3): 263-273.

An, Xudong and Raphael Bostic. 2008. "GSE Activity, FHA Feedback, and Implications for the Efficacy of the Affordable Housing Goals." The Journal of Real Estate Finance and Economics, 36(2): 207-231.

An, Xudong and Raphael W. Bostic. 2006. "Have the Affordable Housing Goals been a Shield Against Subprime? Regulatory Incentives and the Extension of Mortgage Credit." Lusk Center for Real Estate Working Paper 2006-1006.

An, Xudong, Raphael W. Bostic, Yongheng Deng, and Stuart A. Gabriel. 2007. "GSE Loan Purchases, the FHA, and Housing Outcomes in Targeted, Low-Income Neighborhoods" Brookings-Wharton Papers on Urban Affairs.

Avery, Robert B., Kenneth P. Brevoort, and Glenn B. Canner. 2007. "Opportunities and Issues in using HMDA Data" Journal of Real Estate Research, 29(4): 351-380.

Bernanke, Ben S. 2007. "GSE Portfolios, Systemic Risk, and Affordable Housing"

Bhutta, Neil. 2008. "Giving Credit where Credit is Due? The Community Reinvestment Act and Mortgage Lending in Lower-Income Neighborhoods." Board of Governors of the Federal Reserve Finance and Economics Discussion Paper 2008-61.

Board of Governors of the Federal Reserve System. 2007. "Report to the Congress on Credit Scoring and its Effects on the Availability and Affordability of Credit."

Bostic, Raphael W. and Stuart A. Gabriel. 2006. "Do the GSEs Matter to Low-Income Housing Markets? An Assessment of the Effects of the GSE Loan Purchase Goals on California Housing Outcomes" Journal of Urban Economics, 59(3): 458-475.

Congressional Budget Office (CBO). May, 2001. "Federal Subsidies and the Housing GSEs."

Cutler, David M., Glaeser Edward L. and Jacob L. Vigdor. 2008. "Is the Melting Pot Still Hot? Explaining the Resurgence of Immigrant Segregation" The Review of Economics and Statistics, 90(3): 478-497.

DiPasquale, Denise and Edward L. Glaeser. 1998. "Incentives and Social Capital: Are Homeowner's Better Citizens?" National Bureau of Economic Research Working Paper Series No. 6363.

Fannie Mae. 2008. "Fannie Mae 2008 Q2 10-Q Investor Summary".

Freddie Mac. 2008. "Freddie Mac Responds to the New York Times".

Federal Register. 2004. "Mortgage and Loan Insurance Programs: Federal National Mortgage Association (Fannie Mae) and Federal Home Loan Mortgage Corporation (Freddie Mac) - Government-Sponsored Enterprises Housing Goals (2005-2008 CYs)", vol. 69 no. 11.

Gabriel, Stuart A. and Stuart Rosenthal. 2008a. "The GSEs, CRA and Homeownership in Targeted Underserved Neighborhoods."

---. 2008b. "Do the GSEs Expand the Supply of Mortgage Credit? New Evidence of Crowd Out in the Secondary Mortgage Market."

Garmaise, Mark J. and Tobias J. Moskowitz. April, 2006. "Bank Mergers and Crime: The Real and Social Effects of Credit Market Competition" The Journal of Finance, LXI(2).

Gavin, Robert. 2008. "Syron's Side of the Story: Freddie Mac's Chief Says Mortgage-Backer's Mission Calls for Taking Risks" The Boston Globe (August 6).

Imbens, Guido W. and Thomas Lemieux. 2008. "Regression Discontinuity Designs: A Guide to Practice" Journal of Econometrics, 142(2): 615-635.

Kubrin, Charis E. and Gregory D. Squires. 2004. "The Impact of Capital on Crime: Does Access to Home Mortgage Money Reduce Crime Rates?" Paper presented at Annual Meeting of the Urban Affairs Association, Washington, DC.

Lang, William W. and Leonard I. Nakamura. 1993. "A Model of Redlining" Journal of Urban Economics, 33: 223-234.

Manchester, Paul B. May, 2002. "Goal Performance and Characteristics of Mortgages Purchased by Fannie Mae and Freddie Mac, 1998-2000." HUD Housing Finance Working Paper HF-015.

---. May, 2007. "Goal Performance and Characteristics of Mortgages Purchased by Fannie Mae and Freddie Mac, 2001-2005." HUD Housing Finance Working Paper HF-017.

McCrary, Justin. 2008. "Manipulation of the Running Variable in the Regression Discontinuity Design: A Density Test" Journal of Econometrics, 142(2): 698-714.

Munnell, Alicia H., M. B. T. Geoffrey, Lynn E. Browne, and James McEneaney. 1996. "Mortgage Lending in Boston: Interpreting HMDA Data" American Economic Review, 86(1): 25-53.

Office of Federal Housing Enterprise Oversight (OFHEO). 2008. "Report to Congress".

Porter, Jack. 2003. "Estimation in the Regression Discontinuity Model." Department of Economics, University of Wisconsin.

Quercia, Roberto G., George W. McCarthy, and Susan M. Wachter. 2003. "The Impacts of Affordable Lending Efforts on Homeownership Rates" Journal of Housing Economics, 12(1): 29-59.

Quigley, John M. 2006. "Federal Credit and Insurance Programs: Housing" Review: 281-310.

Sherlund, Shane M. 2008. "The Jumbo-Conforming Spread: A Semiparametric Approach." Board of Governors of the Federal Reserve Finance and Economics Discussion Paper 2008-01.

Wallison, Peter J. and Charles W. Calomiris. 2008. "The Last Trillion-Dollar Commitment: The Destruction of Fannie Mae and Freddie Mac" Financial Services Outlook (September).

White, Lawrence H. 2008. "What really Happened?" Cato Unbound (December).

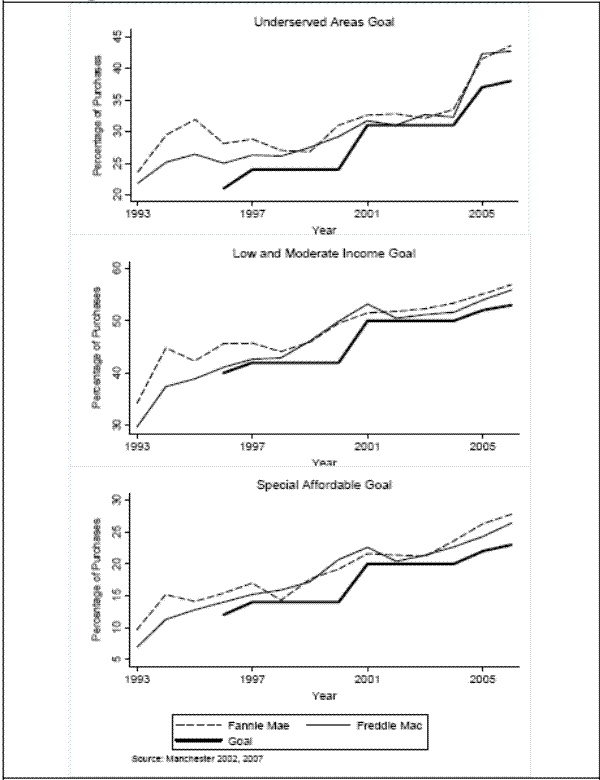

Figure 1: GSE Housing Goals and Perfomance

Please use the below link for figure data.

Notes: The "Underserved Areas" goal targets GSE purchases in low-income & minority neighborhoods: tracts with median family income less than or equal to 90% of the MSA median family income, or tracts with a minority population share of at least 30% and a median family income no greater than 120% of the MSA median family income. The "Low and Moderate Income" goal specifies a target share of purchases to borrowers with income below the MSA median family income. The "Special Affordable" goal targets borrowers with income below 60% of the MSA median family income and borrowers with income below 80% of the MSA median family income in a census tract that has a median family income less than or equal to 80% of the MSA median family income.

Figure 1 Data

Figure 2: Discontinuity in GSE-Purchases, 1997-2002

X-axis variable is tract to MSA median family income.  Y-axis values are number of GSE purchases of GSE-eligible mortgages (i.e. conforming amount, conventional not originated by a subprime specialist lender) between 1997 and 2002.  Each data point on the graph represents the mean of Y-axis variable within half percentage point bins of the X-axis variable, ranging from 0.80 to 1.00.  A vertical line appears at 0.90 indicating the GSE UAG cutoff with targeted tracts having an x-axis value to the left of the line (i.e. less than 0.90).  Also shown are local linear regression generated fits of the underlying values, created separately on either side of the cutoff that both hit the vertical line at 0.90 from opposite sides.  The plot shows a fairly linear trend with a modest difference between the two the fitted curves at the cutoff of about 25 mortgage purchases (about 300 purchases just to the left of the cutoff vs. about 275 purchases just to the right of the cutoff).

Notes: Each data point represents the mean number of GSE purchases of GSE-eligible originations between 1997 and 2002 for tracts within half percentage point bins of the X-axis variable. Also shown are local linear regression generated fits of the underlying tract-level Y-axis values, created seperately on either side of the cutoff.

Figure 3: Falsification Exercise: Discontinuity in GSE-Eligible Originations at GSE and non-GSE Cutoffs

Please use the below link for figure data.

Notes: Each point represents the estimated discontinuity in (log) number of GSE-eligible originations in a tract between 1997 and 2002 from a separate regression. Each regression includes tract covariates and scale variables and MSA-fixed effects, and bandwidth (h) is set to 0.02. Standard errors are clustered at MSA-level.

Figure 3 Data

Figure 4: GSEs' Optimal Response to the UAG

Supply-demand graph illustrating equilibrium with and without the UAG.  X-axis variable is the number of mortgage purchases, m.  Y-axis represents prices.  There is a horizontal line at g, representing the price the GSEs can obtain for their mortgage securities (M) (i.e. the GSEs face a perfectly elastic supply of credit because of their implicit government guarantee).  Two positively sloped, solid diagonal lines intersect this horizontal line, representing the supply of mortgages in lower income (L) and higher income (H) neighborhoods.  The line for higher-income neighborhoods lies to the right of the lower-income line.  From the points of intersection dotted lines drawn to the x-axis indicate equilibrium quantities of lower-income and higher-income mortgage purchases ($m_{L}$ & $m_{H}$, respectively).  Two dashed lines lie parallel to the solid diagonal lines are drawn to the right and left of the lower-income and higher-income lines, respectively.  Refer to text in Section 4.3 for more details.

Table 1: Primary Variables Available in HMDA Dataset, 1992-2006
Yearall yearsYear of mortgage application or purchase
Institution IDall years10 Character Lender Identifier
Regulatory Agency IDall yearsCode indicating OCC, Fed, FDIC, OTS, NCUA (credit unions) or HUD as supervisory agency
Loan Typeall yearsConventional or government insured (e.g. FHA, VA)
Loan Purposeall yearsHome purchase, refinance, home improvement or multifamily (i.e. 5+ family property)
Property Type2004-20051-4 Family, manufactured housing or multifamily structure
Occupancyall yearsOwner-occupied or investment property/second home
Loan Amountall yearsDollar amount of loan
Lien Status2004-2006Loan secured by first or subordinate lien
Rate Spread2004-2006APR spread above comparable Treasury, conditional on the spread exceeding 3 percentage points for first-lien mortgages and 5 percentage points for subordinate-lien loans
HOEPA Status2004-2006Indicator for high-cost loan (e.g. APR at consummation on first-lien mortgage exceeds yield for comparable Treasury by more than 8 percentage points.)
Action Takenall yearsSix possibilities: (1) Loan originated, (2) Borrower rejects lender offer (3) Application denied, (4) Application withdrawn by applicant (5) Application incomplete, (6) Loan purchased by the institution
Denial Reason (optional)all yearsInstitution can provide primary reason(s) for denial (e.g. credit history, insufficient collateral, debt load, etc)
Geographyall yearsState, county and census tract of property
Incomeall yearsGross annual family income, rounded to the nearest thousand dollar
Applicant(s) Ethnicity2004-2006Indicator for being Hispanic/Latino; may not be provided if telephone/internet application. "Hispanic" is a choice under Race variable in prior years
Applicant(s) Raceall yearsRace of primary applicant; race of co-applicant if applicable. May not be provided if telephone/internet application
Applicant(s) Sexall yearsSex of primary applicant; sex of co-applicant if applicable. May not be provided if telephone/internet application
Purchaserall yearsFor loans sold at time of origination, specifies purchaser of loan (e.g. Fannie Mae, commercial bank, etc.)

Table 2: Census Tract Mortgage Credit Flow and Characteristics
 85 ≤ TM ≤ 90
85 ≤ TM ≤ 90
ST Dev
90 < TM ≤ 95
90 < TM ≤ 95
ST Dev
All Tracts
All Tracts
ST Dev
# of Census Tracts (N)2,7282,7282,7982,79842,38142,381
Mortgages per Tract per year (1997-2002): # GSE-Eligible Originations (per tract)1104.4***(95.5)115.3(106.3)126.9(154.4)
Mortgages per Tract per year (1997-2002): Purchased by GSEs43.3***(45.6)48.5(51.1)55.3(74.7)
Mortgages per Tract per year (1997-2002): Purchased by non-GSEs22.4***(24.4)24.4(26.9)27.9(38.7)
Mortgages per Tract per year (1997-2002): # GSE-Ineligible Originations258.0***(57.9)60(62.5)63(79.5)
Mortgages per Tract per year (1997-2002): Purchased by GSEs1.6***(2.6)1.8(3.3)2.8(5.9)
Mortgages per Tract per year (1997-2002): Purchased by non-GSEs42.2***(45.5)43.3(48.7)42.8(55.5)
Tract Characteristics, 1990: Owner-Occupied Units1044.5***(585.6)1105.4(596.2)1050.6(686.0)
Tract Characteristics, 1990: Total Housing Units1856***(966.2)1870.4(981.3)1814.2(1018.8)
Tract Characteristics, 1990: Med Home Value ($2007, 000's)142.66***(94.16)151.35(102.21)178.03(137.72)
Tract Characteristics, 1990: Prop. Units Detached0.559***(0.252)0.597(0.235)0.584(0.278)
Tract Characteristics, 1990: Prop. Units Mobile Home0.077***(0.128)0.069(0.116)0.047(0.100)
Tract Characteristics, 1990: Prop. Units Built 1980-19890.143***(0.147)0.146(0.146)0.160(0.169)
Tract Characteristics, 1990: Prop. Units Built 1940-19690.442(0.217)0.447(0.221)0.426(0.226)
Tract Characteristics, 1990: Prop. Units Built pre-19400.217***(0.220)0.200(0.213)0.204(0.225)
Tract Characteristics, 1990: Prop. Units in Multifamily Bldg0.169***(0.199)0.157(0.181)0.177(0.209)
Tract Characteristics, 1990: Prop. Population Age > 650.139(0.072)0.138(0.073)0.128(0.072)
Tract Characteristics, 1990: Prop. Population Black0.103***(0.194)0.088(0.172)0.137(0.250)
Tract Characteristics, 1990: Prop. Population Hispanic0.079***(0.146)0.071(0.131)0.088(0.162)
Tract Characteristics, 1990: Prop. Population in Group Qtrs0.015***(0.032)0.015(0.034)0.016(0.036)
Notes: Standard deviations in parentheses. * p<0.10, ** p<0.05, *** p<0.01; p-value from test of differences between tracts just below versus above the cutoff, clustered at MSA-level. See text for discussion of sample selection. Mortgages include owner-occupied home purchase and refinance loans.
(1) GSE-eligible loans are conventional, conforming loans originated by lenders not classified as a subprime lender.
(2)Loans with loan amount above the conforming limit, FHA or VA loans, or loans originated by subprime lenders.

Table 3: Estimates of the Effect of the UAG on GSE Purchases in Census Tracts Below the Income Cutoff, 1997-2002
 (1) non-RD(2) non-RD(3) non-RD(4)
RD, parametric control
RD, parametric control
RD, parametric control
RD, non-parametric control
RD, non-parametric control
RD, non-parametric control
Below Cutoff Dummy (D)-0.1045***-0.0309** 0.03370.02260.0307*0.01800.0329**
Below Cutoff Dummy (D) Standard error(0.0160)(0.0133) (0.0486)(0.0232)(0.0166)(0.0216)(0.0154)
UAG-Targeted Dummy (D*)  -0.0394**     0.0425**
UAG-Targeted Dummy (D*) Standard error  (0.0155)     (0.0189)
Tract-to-MSA MFI (TM')   0.00700.0095*0.0071*
Tract-to-MSA MFI (TM') Standard error   (0.0119)(0.0053)(0.0043)
(TM')*(D)   0.0614***0.0029-0.0020
(TM')*(D) Standard error   (0.0194)(0.0078)(0.0059)
(log) # GSE Purchases, 1994-96     0.6264*** 0.6302***0.6303***
(log) # GSE Purchases, 1994-96 Standard error     (0.0218) (0.0343)(0.0318)
Bandwidth (h)
MSA & Tract Size Controls2YYY YYYYY
Other tract controls3 YY YYYYY
Notes: Standard errors, clustered at MSA-level, shown in parentheses. * p<0.10, ** p<0.05, *** p<0.01.
(1) Tracts with TM between 0.90 +/- h;
(2) tract scale variables are (log) owner-occupied units and (log) total housing units.
(3) See table 2 for full list of covariates.
+ Instrumental variable regression using D as an instrument for the true treatment status dummy variable, D*.

Table 4: Estimates of the UAG's Effect on Credit Flow in Tracts Below the Income Cutoff, 1997-2002 (h = 0.02)
(log) Number of GSE-Eligible Originations
(log) Number of GSE-Eligible Originations
(log) Number of GSE-Eligible Originations
Number of GSE-Ineligible Originations
Number of GSE-Ineligible Originations
Number of GSE-Ineligible Originations
Below Cutoff Dummy (D)0.02110.0266** 0.01230.0134
Below Cutoff Dummy (D) standard error(0.0167)(0.0104) (0.0198)(0.0127)
UAG-Targeted Dummy (D*)  0.0343***  0.0173
UAG-Targeted Dummy (D*) standard error  (0.0128)  (0.0152)
Tract-to-MSA MFI (TM')
Tract-to-MSA MFI (TM') standard error
(TM')*(D*) standard error
(log) # GSE Purchases, 1994-96 0.7045***0.7041*** 0.5774***0.5774***
(log) # GSE Purchases, 1994-96 standard error (0.0332)(0.0309) (0.0207)(0.0191)
Notes: Standard errors, clustered at MSA-level, shown in parentheses. * p<0.10, ** p<0.05, *** p<0.01. All regressions include MSA fixed effects, covariates (see table 2 for list) and two tract-level scale variables measured in 1990: (log) owner-occupied units and (log) total housing units. All regressions use tract in bandwidth (h) of 0.02 around TM = 0.90. Loans include owner-occupied refinance and home purchase mortgages originated between 1997 and 2002.
+ Instrumental variable regression using D as an instrument for the true treatment status dummy variable, D*.

Table 5: Summary Statistics - Tracts that Fell Below the Income Threshold versus Tracts that Remained Above the Threshold between 2001/02 and 2005/06
D = 1)1
D = 1)1 ST Dev
D = 0)2
D = 0)2 ST Dev
Number of Tracts (N)1,8501,8505,7595,759
Tract Characteristics, 2000: TMnew0.827***(0.064)1.045(0.119)
Tract Characteristics, 2000: Owner-Occ Units1080.9***(524.6)1340.3(631.7)
Tract Characteristics, 2000: Total Housing Units 1883.3***(827.8)1973.3(894.9)
Tract Characteristics, 2000: Minority Pop Share0.212***(0.163)0.128(0.119)
Tract Characteristics, 2000: Med House Value ($2007)135,432.00***(71,495.71)166,516.20(93,116.69)
Tract Characteristics, 1990: TMold0.969***(0.049)1.009(0.055)
Tract Characteristics, 1990: Owner-Occ Units1015.1***(459.5)1153.4(474.9)
Tract Characteristics, 1990: Total Housing Units1773.5(743.8)1744.8(725.7)
Tract Characteristics, 1990: Minority Pop Share0.105***(0.082)0.077(0.074)
Tract Characteristics, 1990: Med House Value ($2007)136,363.40***(78,397.57)160,108.50(97,344.43)
Mortgage Originations, 2005/06: GSE-Eligible Originations (per year)124.5***(98.1)161.7(149.3)
Mortgage Originations, 2005/06: Purchased by GSEs29.8***(23.0)41.7(38.0)
Mortgage Originations, 2005/06: GSE-Ineligible Originations59.5(85.8)63.7(74.5)
Mortgage Originations, 2005/06: Purchased by GSEs0.8***(1.6)1.3(1.9)
Mortgage Originations, 2001/02: GSE-Eligible Originations (per year)129.4***(89.8)197.5(152.9)
Mortgage Originations, 2001/02: Purchased by GSEs58.3***(44.6)89.6(75.9)
Mortgage Originations, 2001/02: GSE-Ineligible Originations54.5***(42.4)61.6(65.9)
Mortgage Originations, 2001/02: Purchased by GSEs1.5***(2.6)3.1(6.1)
Home-Purchase Mortgage Originations, 2005/06: GSE-Eligible Originations (per year)60.1***(53.3)77.9(93.4)
Home-Purchase Mortgage Originations, 2005/06: Purchased by GSEs14.7***(12.9)21.2(24.4)
Home-Purchase Mortgage Originations, 2005/06: GSE-Ineligible Originations30.5(53.3)31.7(43.2)
Home-Purchase Mortgage Originations, 2005/06: Purchased by GSEs0.3***(0.9)0.6(1.1)
Home-Purchase Mortgage Originations, 2001/02: GSE-Eligible Originations (per year)39.2***(31.5)56.9(53.7)
Home-Purchase Mortgage Originations, 2001/02: Purchased by GSEs17.3***(15.3)25.1(25.2)
Home-Purchase Mortgage Originations, 2001/02: GSE-Ineligible Originations27.6(22.8)28.4(33.6)
Home-Purchase Mortgage Originations, 2001/02: Purchased by GSEs0.6***(1.1)1.0(2.3)
Notes: Standard deviations in parentheses. * p<0.10, ** p<0.05, *** p<0.01; p-value from test of differences between switchers and non-switchers, clustered at MSA-level. Sample tracts are those with TMold between 0.90 and 1.10 and minority share in 1990 less than 0.30.
(1) Sample tracts with TMnew ≤ 0.90.
(2) Sample tracts TMnew > 0.90. Mortgages includes those for home-purchase or refinance of an owner-occupied property, first and junior liens. Ineligible mortgages have a loan amount above the single-family conforming limit, or are government insured, or are originated by subprime specialist institutions.

Table 6: Crossing the Income Threshold and Changes in Credit Flow, 2001/02-2005/06
Δ (log) GSE Purchases
Δ (log) GSE Purchases
Δ (log) GSE Purchases
Δ (log) GSE-Eligible Originations
Δ (log) GSE-Eligible Originations
Δ (log) GSE-Eligible Originations
Δ (log) GSE-Ineligible Originations
Δ (log) GSE-Ineligible Originations
Δ (log) GSE-Ineligible Originations
ΔD standard error(0.0146)(0.0160)(0.0294)(0.0129)(0.0124)(0.0250)(0.0125)(0.0130)(0.0261)
TM 'old * ΔD  -0.0047  -0.0008  0.0019
TM 'old * ΔD standard error  (0.0031)  (0.0028)  (0.0030)
Bandwidth (h)
Tract controls2noyesyesnoyesyesnoyesyes
Notes: Standard errors, clustered at MSA-level, shown in parentheses. * p<0.10, ** p<0.05, *** p<0.01. All regressions include MSA-level fixed effect. Mortgages include those for home purchase and refinance of owner-occupied sites.
(1) The bandwidth around TMnew = 0.90.
(2) Includes (log) median home value in 2000, (log) number of owner-occupied units in 2000, (log) total number of housing units in 2000, minority population share in 2000 and TMold.

Table 7: Estimates of the UAG's Effect in Tracts Below the Minority Population Share Cutoff (h = 0.03), Dependent variable (log) # GSE-eligible originations, 1997-2002
Below the Cutoff Dummy-0.0221-0.0250
Below the Cutoff Dummy standard error(0.0258)(0.0200)
(log) # GSE-eligible originations, 1994-96 0.7247***
(log) # GSE-eligible originations, 1994-96 standard error (0.0354)
Notes: Standard errors, clustered at MSA-level, shown in parentheses. * p<0.10, ** p<0.05, *** p<0.01. All regressions include MSA fixed effects, covariates (see table 2 for list) and two tract-level scale variables measured in 1990: (log) owner-occupied units and (log) total housing units. Dependent variable is the (log) number of GSE-eligible refinance and home purchase mortgages originations. For all regressions, bandwidth (h) is 0.03.

Table 8: Crossing the Minority Share Threshold and Changes in Credit Flow, 2001/02-2005/06
 (1) Δ (log) GSE Purchases(2) Δ (log) GSE Purchases(3)+ Δ (log) GSE Purchases(1) Δ (log) GSE-Eligible Originations(5) Δ (log) GSE-Eligible Originations(6)+ Δ (log) GSE-Eligible Originations(7) Δ (log) GSE-Ineligible Originations(8) Δ (log) GSE-Ineligible Originations(9)+ Δ (log) GSE-Ineligible Originations
ΔD0.0731***0.0261 0.1239***0.0285 0.0965***-0.0062
ΔD standard error(0.0186)(0.0304) (0.0167)(0.0287) (0.0313)(0.0340)
ΔD*  0.0433  0.0472  -0.0102
ΔD* standard error  (0.0435)  (0.0405)  (0.0489)
Bandwidth (h)
Tract controls2noyesyesnoyesyesnoyesyes
Notes: Standard errors, clustered at MSA-level, shown in parentheses. * p<0.10, ** p<0.05, *** p<0.01. All regressions include MSA-level fixed effect. Sample is tracts with TMold between 0.90 and 1.30, and minshareold between 0.15 and 0.30. Mortgages include those for home purchase and refinance of owner-occupied sites.
(1) The bandwidth around minsharenew = 0.30.
(2) (log) median home value in 2000, (log) # of owner-occupied units in 2000, (log) total # of housing units in 2000, TMold, TMnew, Hispanic share of population, African-American share of population, foreign-born share of population, share of population older than 25 with college degree, and share of population age 25-44.
+ Instrumental variable regression where ΔD is used to instrument for the true change in tract-eligibility status (ΔD*).


1. Board of Governors of the Federal Reserve System, Washington, DC 20551 ( ) The views expressed in this paper are solely those of the author. This research draws partially from my economics dissertation at MIT. I thank Christine Brickman, Paul Calem, Glenn Canner, Michael Greenstone, Hui Shan and Christopher L. Smith for very helpful comments and suggestions. All mistakes are mine. Thanks to the MIT Dewey Library staff, the MIT Shultz fund, the MIT Department of Economics and National Science Foundation for support. Return to Text
2. In a 2008 press release Freddie Mac stated, "Our losses could have been even lower had it not been for the need to balance our exposures with our affordable housing goals." Also see Gavin (2008), White (2008), and Wallison and Calomiris (2008). Return to Text
3. Congress established the GSEs to help create a thick secondary market for mortgage originations. The GSEs do not lend directly to consumers; they purchase "conforming" mortgages - loans that conform to relatively conservative credit characteristics (i.e. not subprime mortgages) - from lenders. The GSEs then pool these mortgages and sell mortgage-backed-securities (MBS) to investors, passing along the interest and principal payments from borrowers to investors less a credit guarantee fee. Investors perceive that the U.S. government backs this guarantees and therefore value it highly, giving the GSEs a major competitive advantage. The GSEs also invest in their own MBS and other private-label MBS by issuing bonds at a nearly a risk-free rate (Bernanke 2007). Return to Text
4. Quigley (2006) summarizes estimates of the GSEs' effect on mortgage rates, and Sherlund (2008) provides a more recent analysis. Return to Text
5. The penalty for failing to meet the goals might include bad publicity and eventual loss of Congressional support. Return to Text
6. See Figure 1 notes for complete description of each of the GSE housing goals. Notably, a single loan purchase can count towards multiple goals. The data for Figure 1 come from Manchester's analyses (2002, 2008) of GSE records. Return to Text
7. I thank Paul Calem (Freddie Mac) for making this point. Return to Text
8. I focus on this particular goal because of the compelling increases in the goal since 1996, because there are several sources of variation to help identify its impact, and to build upon existing literature. Return to Text
9. For instance, 2005 and 2006 vintage mortgages account for more than 50 percent of Fannie Mae's 2008 second quarter credit losses (Fannie Mae 2008). Return to Text
10. Bostic and Gabriel (2006) is similar to An et al (2007), but focuses just on California. An and Bostic (2006) is similar to An and Bostic (2008), but looks at crowd-out of subprime rather than FHA lending. Ambrose and Thibodeau (2004) use MSA-level variation in population share residing in UAG-targeted tracts to identify the UAG's effect between 1995 and 1998, and find a small impact. Return to Text
11. The authors suggest a finding of no effect may be because increased GSE purchasing crowds-out non-GSE purchases, as they provide evidence for in another paper (2008b). Return to Text
12. Gabriel and Rosenthal's (2008a) estimates are also negative, though not statistically significant. They use a five percentage point window, but, to my knowledge, do not control for the assignment variable. Return to Text
13. "Seasoned" loans are those more than a year old. HMDA only requires lenders to provide loan sale data only for loans that are sold in the same calendar year of origination. Return to Text
14. The exception is tracts that are part of the few newly formed MSAs between 1994 and 2002. Return to Text
15. 1990 tract definitions apply to HMDA data from 1992 to 2002, and 2000 tract definitions apply since 2003. Return to Text
16. HUD publishes a yearly "subprime lender list", whose loans are considered subprime ( Return to Text
17. I use Census tract-level data distributed by Geolytics. Return to Text
18. Non-GSEs may purchase eligible loans that are not actually conforming. Alternatively, non-GSE purchasers may be aggregators of conforming loans. Return to Text
19. GSE purchases of ineligible loans reflect several possibilities. First, the GSEs can and do purchase FHA-insured and subprime mortgages to a limited extent (Federal Register 2004). Second, subprime specialists may originate conforming loans that they sell to the GSEs. And third, some loans in HMDA above the single-family conforming loan limit may actually be for 2-4 unit structures and fall below the 2-4 unit loan limit and subsequently be eligible for purchase. HMDA only separately identifies multifamily unit (5+ units) loans. Return to Text
20. See Bhutta (2008) for an empirical evaluation of the CRA. Return to Text
21. I log-transform the outcome variables in all regressions. Return to Text
22. I consider 1994-1996 pre-treatment years since they come before the first goal increase in 1997. Of course, if the GSEs responded to the goals in these early years, then including this lag will reduce the estimate of  \beta. Return to Text
23. Using triangular kernel weights that give most weight to data near the cutoff raises the point estimates in columns 5 and 6 slightly to 0.038 and 0.037, respectively. McCrary (2008) suggests comparing observation density across the cutoff to test the identification assumption. I find 49.4 (50.6) percent and 50.3 (49.7) percent of sample tracts are below (above) the cutoff within five and two percentage points, respectively, of the cutoff, suggesting that the number of tracts is balanced around the cutoff. Return to Text
24. The point estimates in column 8 rises slightly with the inclusion a linear control function. Return to Text
25. The discontinuity at 0.88 represents the conditional mean for tracts in the TM interval [86, 88] relative to that in the interval (88, 90] and therefore may reflect a heterogeneous UAG effect that is greatest in tracts right near the cutoff. However, I find it more reasonable to think that the effect would decline smoothly as TM decreases. Return to Text
26. This test will not reveal crowd-out that occurs within subprime lending institutions, that is, if subprime lenders increase conforming originations and reduce subprime originations. Similarly, the net positive increase in GSE-eligible lending may mask some crowd-out within prime lenders. Return to Text
27. Tracts with 88 <TM=90 averaged 679 originations in 1997-2002; deflating that amount by 0.034 is 23 originations. Return to Text
28. Just over 4.7 million loans were originated in sample tracts with TM between 0.70 and 0.90 in this period. Return to Text
29. The estimated UAG-effect on GSE purchases presented in Section 4.1 is only slightly larger than that for GSE-eligible originations. Since the GSEs only purchase about 40 percent of eligible originations (Table 2), these estimates indicate that the level increase in originations is actually greater than the level increase in GSE purchases. As I discussed in Section 2, one reason for this discrepancy is that the GSEs respond to the goals by purchasing seasoned loans that are not reported in HMDA (Federal Register 2004). Return to Text
30. The GSEs have discussed that their response to the goals may include reducing their purchases of mortgages that do not count towards the goals. On the other hand, their charter requires them to be willing to purchase all qualified loans and may therefore limit such a response (Federal Register 2004). Return to Text
31. For simplicity, imagine a simple production function  M=m_{L} +m_{H} Return to Text
32. Interestingly, the value of  A that maximizes lower-income GSE purchases is generally less than one; at  A=1, the benefits to the GSEs of increasing  m_{H} exceed the cost of also having to raise  m_{L} in order to meet the constraint. Return to Text
33. Although HUD continued to use 1990 Census income data in 2003 and 2004 and therefore targeted the same tracts as in 2002 (except in cases due to tract boundary changes), 2000 Census income data was available and may have affected lending and business decisions in 2003 and 2004. As such, I use 2001/02 as the pre-period. Return to Text
34. I use the Census' population-based relationship file to link 1990 census tracts to their 2000 counterpart. I link just over 85 percent of the census tracts from my 1997-2002 analysis to a specific 2000 census tract, where a link requires that at least 90 percent of the 2000 tract's population resides within the 1990 tract boundary and vice versa. Most of the unlinked tracts were relatively large in 1990 and were split up for the 2000 Census. Return to Text
35. Loan growth measures are confounded by the inclusion of junior lien loans in the data in so far as such loans grew as a share of all loans during this period. Return to Text
36. HUD did not publish a subprime lender list for 2006. I identify subprime lenders in 2006 as those in the 2005 list (194 of the 210 lenders match in 2006), plus those highly likely to be subprime specialists, which I identify as lenders that made at least 500 site-built, owner-occupied home purchase or refinance originations (including junior liens), and that at least 75 percent of these originations were "higher-priced" (i.e. Rate Spread reported by the lender; see Table 1). In 2005, HUD classified 85 percent of lenders fitting this description as subprime. Return to Text
37. Changes in tracts' relative income are highly correlated with changes in tracts' median family income level. The correlation in the percent change in both measures between 1990 and 2000 is 0.68 for tracts in the  h = 0.05 sample. Return to Text
38. I also ran the same set of regressions in Tables 6 and 8 using only GSE purchases of home-purchase loans since HUD introduced a home purchase mortgage subgoal in 2005. The results are similar, if not more modest. Second, I redid the regressions in Tables 6 and 8 after excluding junior liens in the 2005/06 period to test if junior liens are driving differential growth across the cutoff. These results are basically identical to those in Table 6 and 8. Return to Text
39. For instance, credit scores are generally lower in lower-income and predominantly minority neighborhoods (Board of Governors 2007). Return to Text

This version is optimized for use by screen readers. Descriptions for all mathematical expressions are provided in LaTex format. A printable pdf version is available. Return to Text
