Board of Governors of the Federal Reserve System
International Finance Discussion Papers
Number 857, April 2006-Screen Reader Version*

Modeling Direct Investment Valuation Adjustments and Estimating Quarterly Positions

Jane Ihrig and Jaime Marquez¹

NOTE: International Finance Discussion Papers are preliminary materials circulated to stimulate discussion and critical comment. References to International Finance Discussion Papers (other than an acknowledgment that the writer has had access to unpublished material) should be cleared with the author or authors. Recent IFDPs are available on the Web at http://www.federalreserve.gov/pubs/ifdp/. This paper can be downloaded without charge from the Social Science Research Network electronic library at http://www.ssrn.com/.

Abstract:

This paper takes an in-depth look at U.S. direct investment valuation adjustments. We develop a methodology to generate valuation adjustments at the quarterly frequency, which can be combined with the Bureau of Economic Analysis's quarterly direct investment flows to obtain quarterly estimates of direct investment asset and liabilities. Our methodology involves two steps. First, we estimate valuation adjustment models with annual data. Our models rely on variables that reflect terms used by the Bureau of Economic Analysis in their data construction: exchange-rate changes, changes in the price of products, and changes in stock-market prices. Second, we apply quarterly data to the estimated models to generate quarter valuations and implement a procedure that ensures that the estimated valuations for the four quarters in a given year sum to the reported annual valuation adjustments. With this framework we consider how asset price shocks affect the net direct investment position and, hence, net international investment position.

1  Introduction

This paper takes an in-depth look at direct investment valuation adjustments. First, we estimate models of valuation adjustments for both the direct investment position in the United States and U.S. position abroad, both measured at current cost and market value. Then we use these models to provide quarterly valuation adjustments and positions, something that is not provided by the Bureau of Economic Analysis (BEA). Finally, we use the models to illustrate how valuation adjustments respond to asset price shocks.

The fact that valuation adjustments matter is clear from figure 1, which shows the net direct investment position of the United States under alternative valuation schemes. If one simply cumulates net direct investment flows from 1982 to 2004, then the United States has net claims on foreigners of approximately $250 billion. Alternatively, if one adjusts the values of assets and liabilities for inflation and changes in exchange rates -what is known as current cost- then U.S. net claims on foreigners in 2004 is near $600 billion. The $350 billion difference between these two measures of the net direct investment position reflects valuation adjustments over these two decades. Another way to see the impact of valuation adjustments is to look at the net position valued at market value. Here we see the United States moved from being a net debtor of $250 billion in 2001 to a net credit of $500 billion in 2004, most of the change in the position reflects valuation adjustments associated with the decline in the U.S. stock market.

Interest in both the magnitude and volatility of these positions is not new. For example, Cline (2005), Lane and Milesi-Ferretti (2005), Higgins et al. (2005) and Gourinchas and Rey (2005a and 2005b) have focused on the role valuation adjustments play in the process of external adjustment of the United States. What is new in this paper is the development of a methodology to alleviate a key limitation of all previous work: reliance on annual data. Having valuation adjustments at the quarterly frequency is important for a variety of reasons. First, if one is interested in external adjustment, quarterly changes are quite informative and this model can help in analyzing this issue. Second, BEA yearend international investment position data (valuation adjustments and, hence, the position) are released with nearly a six month lag. Researchers who need an estimate of the international investment position can use our valuation adjustment models to generate estimates of the positions many months prior to the data release. Last, one can combine our estimated quarterly valuation adjustments with BEA's quarterly data for direct investment (DI) flows to obtain quarterly estimates of assets and liabilities. As far as we know, such data are not available until now. These quarterly models can be embedded in a detailed economy-wide model of the U.S. economy, such as that used by the Federal Reserve Board, for standard forecasting purposes.

The implementation of the method we provide is straightforward and it is consistent with the data published by the BEA. Greatly simplified, our methodology involves two steps. First, we estimate valuation adjustment models with annual data. Our models rely on variables that reflect terms used by BEA in their construction; that is, independent variables in the models include exchange-rate changes, changes in the price of products, and changes in stock-market prices. This construct allows us to determine the importance of any of these asset price changes on valuation adjustments, and hence, on the net direct investment position (NDIP). This feature not only allows us to better understand the driving factors behind the historic evolution of these series, but also allows us to form expectations of future movement in these valuation adjustments. Second, we combine quarterly data and the estimated models to generate quarter valuations, with the underlying constraint that the valuations for the four quarters in a given year sum to the annual valuation adjustments reported by BEA.

We begin our analysis in section 2 with an overview of valuation adjustments. The econometric models explaining these adjustments are presented in Section 3. Section 4 constructs the quarterly valuation adjustments and quarterly positions that are consistent with BEA's annual data. Section 5 highlights how asset price shocks will affect the net direct investment position. Not only do we provide rules of thumb for how asset price shocks immediately affect the valuations but, we provide dynamic simulations to illustrate the longer-term effects on the valuation adjustments, DI positions and NDIP.

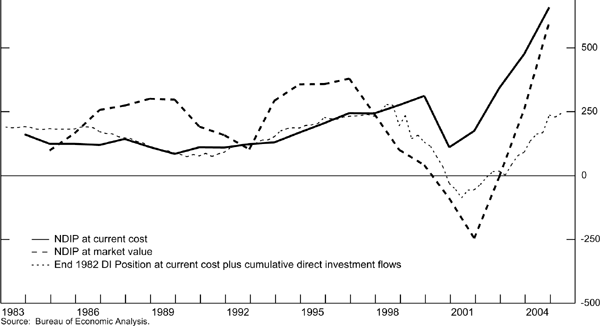

Figure 1. U.S. Net Direct Investment Position (NDIP) and Cumulated Flows

2  Overview of Valuation Adjustments

The BEA offers annual data for three measures of the U.S. DI position abroad and three measures of the DI position in the United States. These measures differ in the manner in how the stocks are valued: historical cost, current cost, and market value. The historical cost measure of direct investment values the DI position at book value, while current cost considers the value based on the current cost of plant and equipment, land, and inventories; the market-value measure insures the equity portion of the position is valued at current stock market prices.

Focusing on the current cost and market value measures, the change in the direct investment positions from one year to the next are a result of both flows and valuation adjustments. BEA decomposes the total valuation adjustments into three sources: exchange-rate adjustments, price adjustments, and `` other.''<sup>2</sup> The exchange rate adjustment measures the effect of translating the previous year's dollar value of assets into the current year-end dollar value of assets. Since firms hedge and not all assets are in foreign currency, BEA's exchange rate adjustment for DI abroad is not directly proportional to the change in the value of the dollar over the year.<sup>3</sup> The price adjustment varies by the type of valuation method one is using. For current cost, the price adjustment is for revaluing tangible assets using a perpetual inventory model for plant and equipment, general price indexes for land, and special adjustment factors for inventories. For positions valued at market value, the price adjustment reflects changes in the equity portion of the position associated with changes in stock market prices (i.e., revaluations associated with the local stock market).<sup>4</sup> The third valuation adjustment term, denoted as `` other'' by BEA, seeks to capture changes in the value of holdings that are not captured by either DI flows, price changes in the stock, or foreign exchange-rate markets. Examples of other valuation adjustments include correction of errors in recording positions or flows; expropriation of assets by foreign governments; impairments of assets due to natural disasters; changes in the firm's good will and changes in coverage.

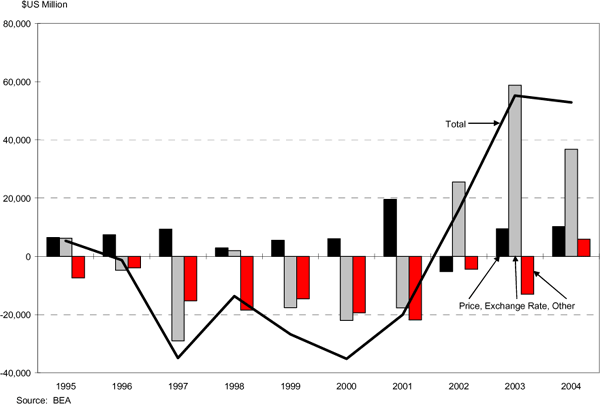

As shown in Figure 2, movements in the total valuation adjustment for the current-cost position abroad are volatile. For example, from 2000 to 2003, the valuation adjustment swung from -$36 billion to $56 billion, an increase of $112 billion. These swings are dominated by movements in exchange rates, which account for 46 percent of the volatility, and to a lesser extent by movements in foreign prices, which account for 21 percent of the volatility. Interestingly, movements in other valuation adjustments are not trivial and account for 33 percent of the volatility. Valuation effects due to prices and exchange rates are often of the opposite sign and thus tend to offset each other. When the valuation effects have the same sign, their combined effect can be substantial, as seen in 2003 and 2004.

Figure 2. Valuation Adjustments for DI Abroad at Current Cost

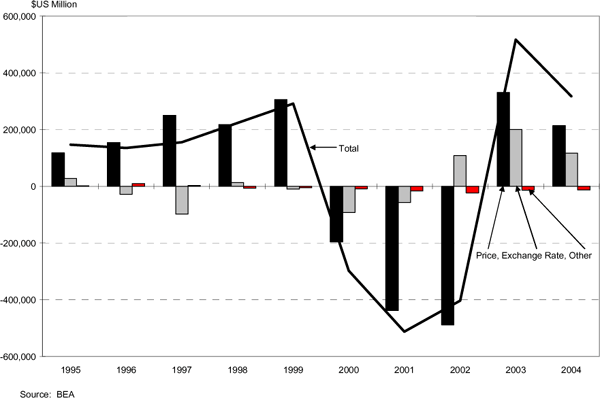

Figure 3 shows that the valuation adjustments for DI abroad at market value are even larger and more volatile than those for current cost (note the difference in scale of the y axis). In 2001, for example, the valuation adjustment was -$512 billion, which is close to the U.S. current-account deficit for that year. From 2001 to 2004, the valuation adjustment swung from -$512 billion to $515 billion, an increase of $1.2 trillion. These swings are dominated by movements in stock prices, which account for 77 percent of the volatility. To a lesser extent movements in exchange rates influence this valuation adjustment, which account for 20 percent of the volatility; other valuation adjustments are, in general, small.

Figure 3. Valuation Adjustments for DI Abroad at Market Value

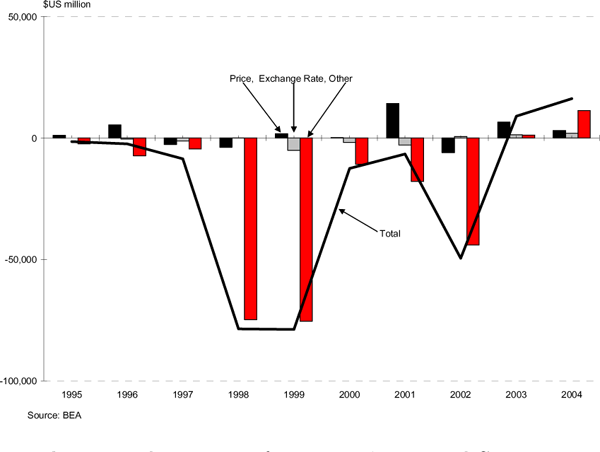

Figure 4 shows that, since 1995, movements in the valuation adjustments for DI in the United States have been dominated by factors other than prices and exchange rates: More than two-thirds of the volatility of the valuation adjustments stems from movements in other adjustments. Movements in U.S. prices account for one-quarter of the volatility of the valuation adjustment and, not surprisingly, exchange rate adjustments are a small portion of the adjustment, as we are focusing on dollar denominated DI in the United States.

Figure 4. Valuation Adjustments for DI in the United States at Current Cost

As in the case of DI abroad, market value adjustments for DI in the United States are large and volatile. As shown in Figure 5, the valuation adjustment was -$585 billion in 2002, exceeding the U.S. current-account deficit for that year by $100 billion. From 2002 to 2003, the valuation adjustment swung from -$585 billion to $370 billion, an increase of $960 billion. These swings are dominated by movements in stock prices, which account for 97 percent of the volatility, and to a much lesser extent by movements in other valuation adjustments; valuation adjustments due to exchange rates are negligible.

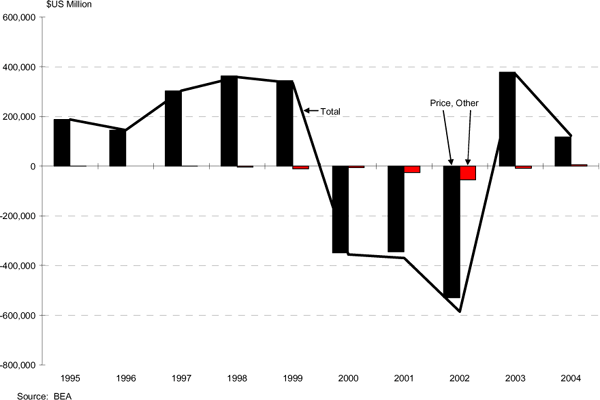

Figure 5. Valuation Adjustments for DI in the United States at Market Value

Another way to emphasize the importance of the magnitude and volatility of these valuation adjustments is to compare the annual valuation adjustment in a given year to the DI flow in that year. Figures 6 and 7 illustrate that, on average, over the past decade the current cost valuation adjustments for DI Abroad and DI in the United States represent 20 percent and 30 percent of the annual DI flows, respectively. In 2002 the absolute value of the current cost valuation adjustment for DI in the United States was larger than the inflow.

The market value valuation adjustments tend to be much larger than those associated with current cost (figures 8 and 9). Here we see that, on average, valuation adjustments are over 200 percent of the flows. In 2002 the market value valuation adjustment was over 750 percent of the DI inflow into the United States!

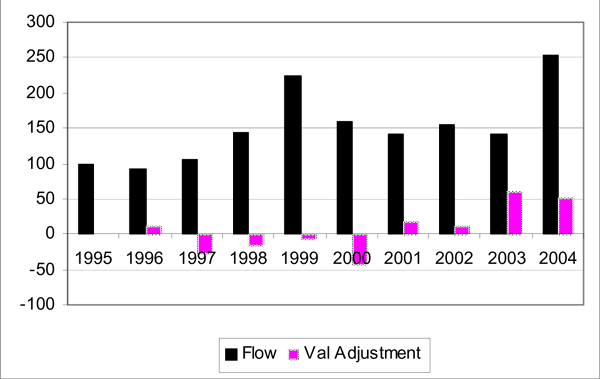

Figure 6. Annual DI Flows and Valuation Adjustments DI Abroad at Current Cost

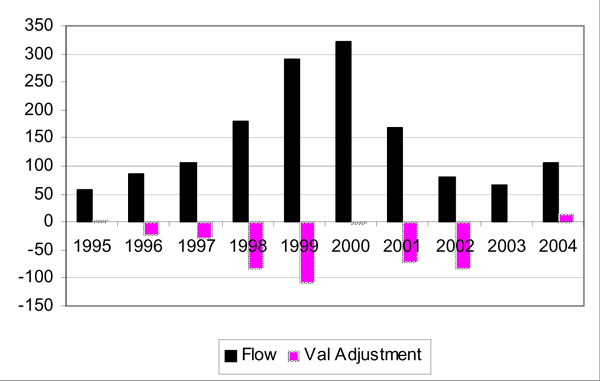

Figure 7. Annual DI Flows and Valuation Adjustments DI in U.S. at Current Cost

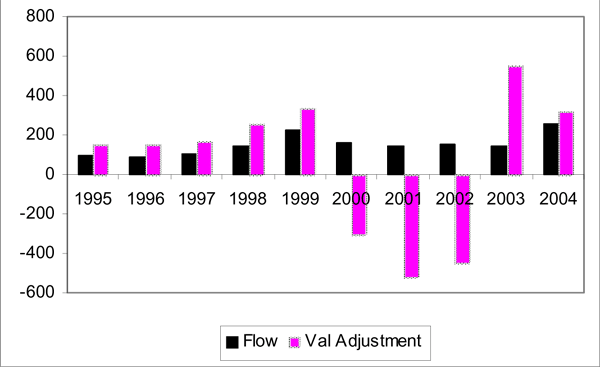

Figure 8. Annual DI Flows adn Valuation Adjustments DI ABroad at Market Value

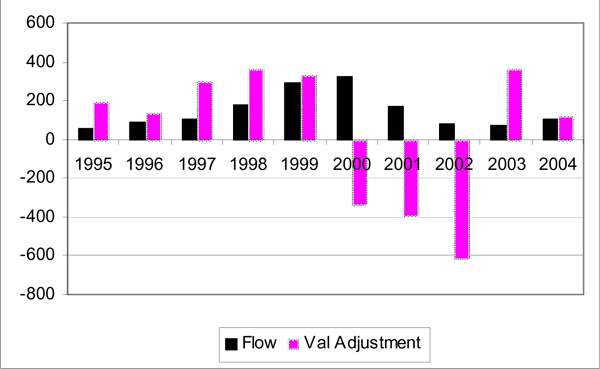

Figure 9. Annual DI Flows and Valuation Adjustments DI in U.S. at Market Value

3  Modeling Valuation Rates

The first step in modeling annual valuation adjustments is to define the valuation rates associated with each valuation method: current cost ($cc)$ and market value ($mv$). For U.S. assets abroad, we define the valuation rate associated with $ith$ measure ($cc$ or $mv$), $R\alpha_{it}^{a}$ as

$$R\alpha_{it}^{a}=\frac{\alpha_{it}^{a}}{A_{i,t-1}^{a}},i=cc,mv,$$

where $\alpha_{it}^{a}$ is BEA's annual nominal valuation adjustment for U.S. assets and $A_{it}^{a}$ is BEA's $a$nnual nominal asset position in year $t$. The valuation rate for U.S. liabilities to foreign residents is

$$R\lambda_{it}^{a}=\frac{\lambda_{it}^{a}}{L_{i,t-1}^{a}},$$  $$i=cc,mv,$$

where $\lambda_{it}^{a}$ is the annual nominal valuation adjustment for U.S. liabilities to foreigners associated with the $ith$ measure and $L_{it}^{a}$ is the $a$nnual nominal liability position in year $t.$

The second step is to link these annual valuation rates to the factors BEA uses in its reported valuation adjustments. Specifically, BEA links $\alpha_{cct}^{a}$ and $\lambda_{cct}^{a}$ to movement in exchange rates and prices on tangible assets (such as property, plant, equipment and inventories); $\alpha_{mvt}^{a}$ and $\lambda_{mvt}^{a}$ are linked to movements in dollar-valued stock prices. The resulting equations are

$$R\alpha_{it}^{a}=\theta_{i}X_{i,t}^{a}+u_{it}^{a},$$  $$i=cc,mv$$

$$R\lambda_{it}^{a}=\varphi_{i}X_{i,t}^{a}+v_{it}^{a},$$  $$i=cc,mv,$$

where $X_{i,t}^{a}$ is a vector of the variables used by BEA at an annual frequency. The next section selects the variables included in the $X_{i}^{\prime}s$ and estimates $\theta_{i}$ and $\varphi_{i}$ using OLS.

3.1  U.S. DI Abroad at Current Cost

Recall from section 2 that the valuation adjustment to DI abroad at current cost was dominated by movement in the exchange rate and prices of products. Thus we model the total valuation rates as

$$R\alpha_{cc,t}^{a}=\alpha\frac{\Delta E_{t}}{E_{t-1}}+\beta\pi_{t}^{\ast }+u_{cc,t}^{a},$$ (1)

where $\ \ E_{t}$: is the DI-weighted effective value of the dollar, end of quarter

$\qquad\pi_{t}^{\ast}$: is the DI-weighted foreign inflation (Q4/Q4), and

$\qquad u_{cc,t}^{a}$: is the residual.

In constructing both $\frac{\Delta E_{t}}{E_{t-1}}$ and $\pi^{\ast}$ we use data from 19 foreign countries. Specifically, $\frac{\Delta E_{t}}{E_{t-1}}$ is the DI-weighted sum of bilateral exchange rate growth rates, while $\pi^{\ast}$ is the DI-weighted sum of foreign CPI inflation rates. The weights vary over time, as the size of each country's year-end U.S. direct investment position varies relative to the total U.S. direct investment position abroad in these countries. Appendix 1 provides the list of countries used in these series construction.

We expect a dollar appreciation (an increase in $E$) to lower the current-cost value of U.S. assets abroad ($\alpha<0$) and an increase in the foreign inflation rate to produce the opposite effect ($\beta>0$). Ideally, $\alpha\frac{\Delta E_{t}}{E_{t-1}}$ should capture the exchange-rate component of the valuation rate, $\beta\pi_{t}^{\ast}$ should capture price adjustments, and $u_{cc,t}^{a}$ should represent factors not modeled explicitly.

Based on annual observations from 1976 to 2003, the estimation results confirm our priors (figure 10).⁵ The estimates indicate that a one percent appreciation of the dollar lowers the rate of current-cost valuation adjustments by about 0.5 percentage points; a one-percent increase in the foreign inflation rate raises the valuation rate by nearly 0.5 percentage points. The coefficient estimate on the exchange rate being less than one can be a result of many factors. First, some assets of the firms may be in dollars (as a matter of fact, some foreign affiliates keep their books in dollars). Second, firms use exchange rate hedges. Third, our DI-weighted dollar does not encompass all the recipients of U.S. direct investment, so that our independent variable is a proxy for the true exchange rate.

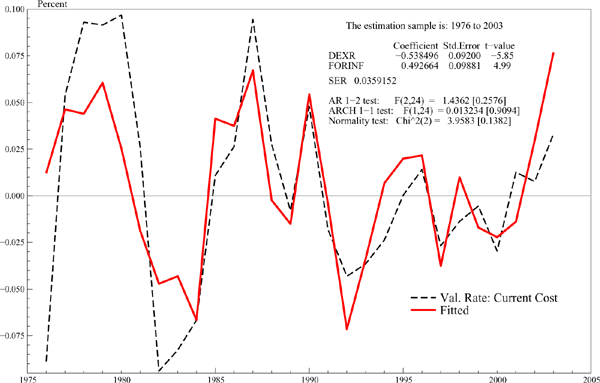

Figure 10. Regression for the Valuation Adjustment Rate of U.S. DI Abroad at Current Cost

As an alternative formulation, we augment equation (1) to include a role for intangible considerations, such as good will, that may be embodied in the ''other'' portion of the valuation adjustment. An example of goodwill is when a U.S. multinational purchases a foreign operation at a market value that is larger than its book value.⁶ We postulate that these intangibles are a fraction $\delta$ of the investment rate (flow/position):

$$goodwillRate_{_{cc,}t}^{a}=\frac{\delta\cdot O_{t}^{a}}{A_{cc,t-1}^{a}}.$$

Thus the empirical formulation becomes

$$R\alpha_{cc,t}^{a}=\alpha\frac{\Delta E_{t}}{E_{t-1}}+\beta\pi_{t}^{\ast }+\theta\cdot goodwillRate_{_{cc,}t}^{a}+u_{cc,t}^{a}.$$

Based on annual observations from 1976 to 2003, the estimation results suggest that our approach to modeling intangibles has no statistical effect on the valuation rate (figure 11). The estimates indicate that a one percent appreciation of the dollar lowers rate of current-cost valuation adjustments by 0.5 percentage points; a one-percent increase in the foreign inflation rate raises the valuation rate by 0.5 percentage points, about what one gets from the estimates of equation (1).

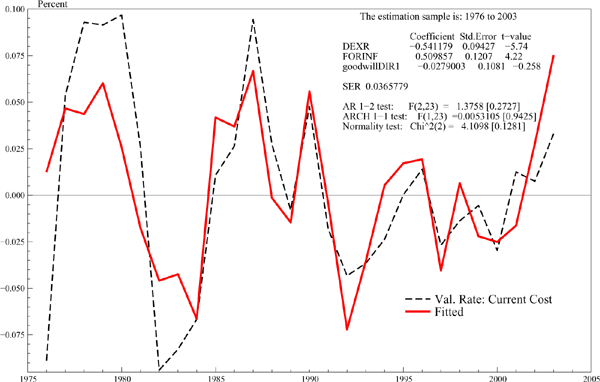

Figure 11. Alternative Regression for the Valuation Adjustment Rate of U.S. DI Abroad at Current Cost

3.2  U.S. DI Abroad at Market Value

BEA revalues the historical-cost value of equity in foreign affiliates of U.S. parents using a weighted average of foreign stock prices. Specifically, BEA uses a weighted average of individual Morgan Stanley stock indexes for countries with relatively large U.S. DI positions, and a world index, excluding the United States, to proxy for movements in other countries' stock markets. With these considerations in mind, we postulate that

$$R\alpha_{mv,t}^{a}=\eta\frac{\Delta FSM_{t}}{FSM_{t-1}}+u_{mv,t}^{a},$$ (2)

where $FSM$ is a yearend DI-weighted average of foreign stock-market index expressed in US dollars. Implicit in this formulation is that movements in the bilateral exchange rates and foreign stock markets affect the valuation adjustment homogeneously.⁷ To construct this series we use 20 individual country stock market series, as well as the Morgan Stanley ROW, excluding the United States, stock market index. BEA uses individual country stock market indexes for the countries with relatively large shares of U.S. DI and then proxies the remaining countries' stock market valuations with the Morgan Stanley index.⁸ Appendix 1 provides more details.

We expect that an increase in the dollar value of the foreign-stock market to raise the market value of U.S. assets abroad ($\eta>0).$ The results confirm this expectation (figure 12): a one-percent increase in the foreign stock market raises the valuation rate by three-fourths. Recall that our stock market variable is measured in dollars, so this 3/4 estimate combines the true stock market effect with the dollar effect, where we found a less than 1:1 impact from movement in the dollar on the current cost valuation rate.

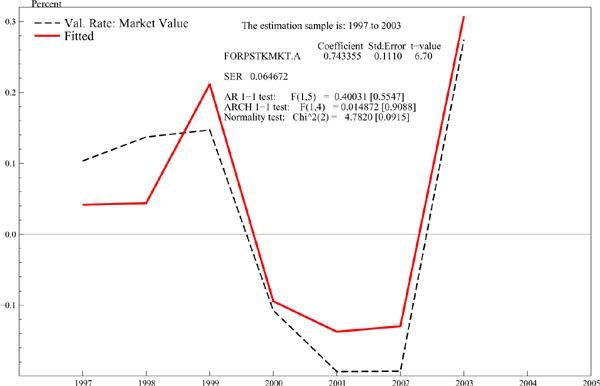

Figure 12. Regression for the Valuation Adjustment Rate of U.S. DI Abroad at Market Value

3.3  DI in the United States at Current Cost

As noted in section 2, when discussing the components of the valuation adjustments, the role of the exchange rate on valuation adjustments for DI in the United States is negligible. As a result, we focus on price adjustments in the valuation model.

Specifically, we postulate that

$$R\lambda_{cc,t}^{a}=\rho\pi_{t}+v_{cc,t}^{a}$$ (3)

where $\pi_{t}$ is the inflation rate of the nonresidential business fixed investment deflator (Q4/Q4) and $u_{cc,t}^{l}$ is the residual.⁹ Our expectation is for an increase in the U.S. inflation rate to raise the current cost of U.S. liabilities to foreigners ($\rho>0$). Based on annual observations from 1973 to 2003, the estimation results confirm this expectation (figure 13). A one-percent inflation rate in nonresidential business fixed investment in the United States translates into a 8/10 percent increase in the valuation rate. This coefficient estimate is not statistically different from one.

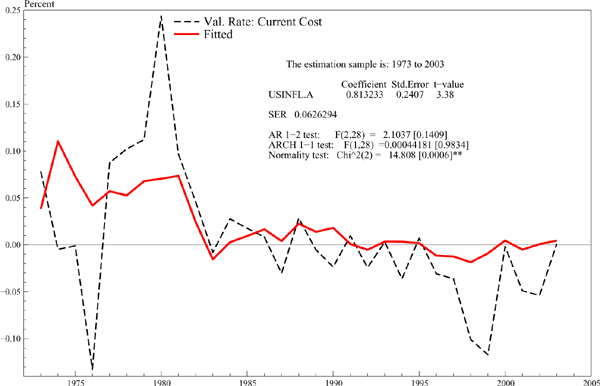

Figure 13. Regression for the Valuation Adjustment Rate of DI in the U.S. at Current Cost

We also consider the alternative formulation for the valuation rate where we augment equation (3) to include a role for intangibles. We postulate that these intangibles are a fraction of the investment rate:

$$goodwillRate_{_{cc,}t}^{l}=\frac{\delta\cdot I_{t}}{L_{cc,t-1}},$$

so that

$$R\lambda_{cc,t}^{a}=\rho\pi_{t}+\theta\cdot goodwillRate_{_{cc,}t} ^{l}+v_{cc,t}^{a}.$$

Based on annual observations from 1973 to 2003, the estimation results suggest that our approach to modeling intangibles has no statistical effect on the valuation rate (figure 14).

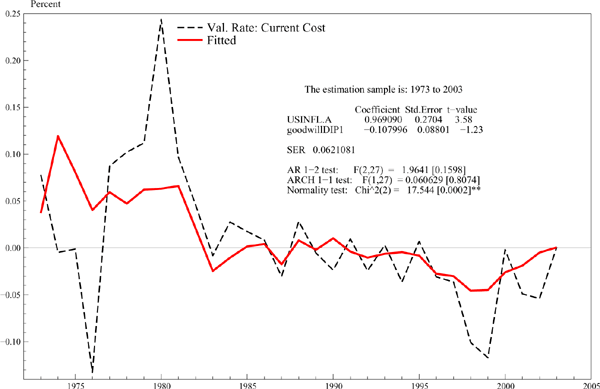

Figure 14. Alternative Regression for the Valuation Adjustment Rate of U.S. DI Abroad at Current Cost

3.4  DI in the United States at Market Value

BEA's market value valuation adjustment uses the Standard and Poor's 500 index to revalue the historical-cost value of equity in U.S. affiliates of foreign parents. Since the revaluation of (stock) prices is the key factor influencing the valuation adjustment, we mimic BEA's analysis by postulating that

$$R\lambda_{mv,t}^{a}=\gamma\frac{\Delta SM_{t}}{SM_{t-1}}+v_{mv,t}^{a},$$ (4)

where $SM$ is the end of year value of the Standard and Poor 500 index. We expect that an increase in the U.S. stock market will raise the value of U.S. external liabilities ($\gamma>0$). Based on data from 1982 to 2003, the results confirm this expectation (figure 15). Also, an increase in the U.S. stock market translates into a nearly proportional increase in the valuation rate. Notice that the regression has a tight fit over the past decade.

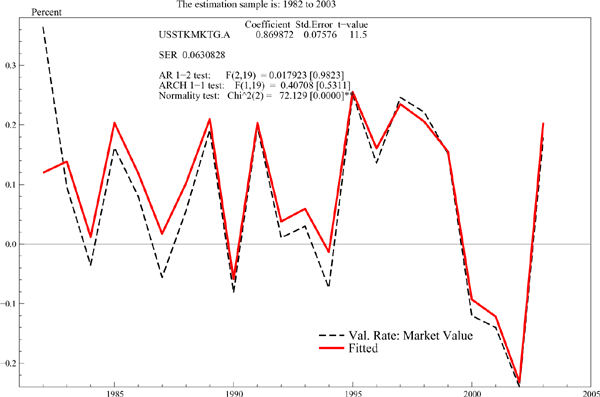

Figure 15. Regression for the Valuation Adjustment Rate of DI in the U.S. at Market Value

As an alternative formulation, we augment equation (4) to include a role for intangibles. Specifically, we postulate that these intangible considerations are a fraction of the investment rate:

$$goodwillRate_{_{mv,t}}^{l}=\frac{\delta\cdot I_{t}}{L_{mv,t-1}},$$

so that

$$R\lambda_{mv,t}^{a}=\beta\pi_{t}+\theta\cdot goodwillRate_{_{mv,t}} ^{l}+v_{mv,t}^{a}.$$

Based on annual observations from 1973 to 2003, the estimation results suggest that our approach to modeling intangibles has no statistical effect on the valuation rate (figure 16). The estimates indicate that a one percent rise in the U.S. stock market raises proportionally the valuation rate for market value.

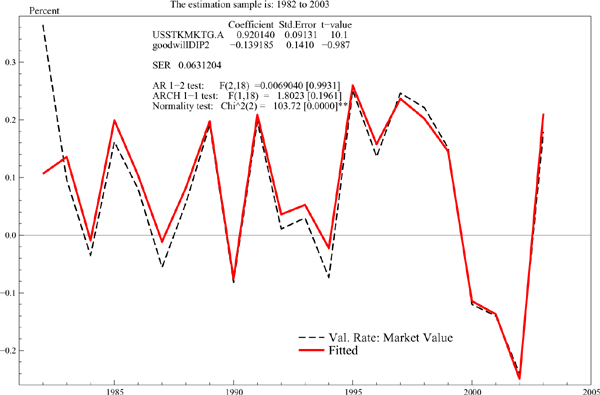

Figure 16. Alternative Regression for the Valuation Adjustment Rate of DI in the U.S. at Market Value

4  Positions and Valuation Adjustments: Annual and Quarterly Frequencies

4.1  Method

Recall from section 2 that BEA offers annual data for three measures of the U.S. DI position abroad and three measures of the DI position in the United States. These measures differ in the manner in how the stocks are valued: historical cost ($h$), current cost ($cc$), and market value ($mv$). The annual positions positions at current cost and market value are constructed as

$$A_{it}^{a} =A_{i,t-1}^{a}+O_{t}^{a}+\alpha_{it}^{a}, i=cc,mv$$

$$L_{it}^{a} =L_{i,t-1}^{a}+I_{t}^{a}+\lambda_{it}^{a}, i=cc,mv,$$

where $A_{it}^{a}$ is the $a$nnual asset position in year $t$ associated with $ith$ measure ($cc$ or $mv$); $L_{it}^{a}$ is the $a$nnual liability position in year $t$; $I_{t}^{a}$ is the $a$nnual inflow of direct investment; $O_{t}^{a}$ is the annual outflow of direct investment; $\alpha_{it}^{a}$ is the annual valuation adjustment for U.S. assets abroad and $\lambda_{it}^{a}$ is the annual valuation adjustment for U.S. liabilities to foreigners associated with the $ith$ measure.¹⁰ Substituting in our model estimates for the valuation rates, we rewrite these equations as

$$A_{it}^{a} =A_{i,t-1}^{a}+O_{t}^{a}+R\alpha_{it}^{a}\cdot L_{i,t-1} ^{a}, i=cc,mv$$

$$L_{it}^{a} =L_{i,t-1}^{a}+I_{t}^{a}+R\lambda_{it}^{a}\cdot L_{i,t-1} ^{a}, i=cc,mv,$$

where

$$R\alpha_{it}^{a} =\frac{\alpha_{it}^{a}}{A_{i,t-1}^{a}}=\theta_{i} X_{i,t}^{a}+u_{it}^{a}, i=cc,mv$$

$$R\lambda_{it}^{a} =\frac{\lambda_{it}^{a}}{L_{i,t-1}^{a}}=\varphi _{i}X_{i,t}^{a}+v_{it}^{a}, i=cc,mv.$$

To generate quarterly valuation adjustments from these annual estimates, we apply a two-step procedure. First, we use the estimates of $\theta_{i}$ and $\varphi_{i}$ to generate a first round of quarterly estimates of the valuation rates. This task involves applying the coefficient estimates to quarterly data:

$$\widehat{R\alpha}_{it}^{q} =\widehat{\theta}_{i}\cdot X_{i,t}^{q} +\widehat{u}_{it}^{q}$$

$$\widehat{R\lambda}_{it}^{q} =\widehat{\varphi}_{i}\cdot X_{i,t} ^{q}+\widehat{v}_{it}^{q}$$

where $X_{t}^{q}$ is the quarterly counterpart of $X_{t}^{a}.$ First round of quarterly positions are constructed using the first round valuation adjustments. These are

$$\widehat{A}_{it}^{q} =\widehat{A}_{it}^{q-1}+O_{it}^{q}+\widehat{\alpha }_{it}^{q}=\wi... ...A}_{it}^{q-1}+O_{it}^{q}+\widehat{R\alpha}_{it}^{q} \cdot\widehat{A}_{it}^{q-1}$$

$$\widehat{L}_{it}^{q} =\widehat{L}_{it}^{q-1}+I_{it}^{q}+\widehat{\lambda }_{it}^{q}=\w... ..._{it}^{q-1}+I_{it}^{q}+\widehat{R\lambda}_{it}^{q} \cdot\widehat{L}_{it}^{q-1}.$$

Notice that the above equations generate the level of the quarterly valuation adjustments endogenously. To ensure full consistency between the published annual positions and our quarterly estimates for the fourth quarter a second step is needed.

We define an iteration error for quarter $q$ of year $t$ as

$$e_{it}^{q}=\frac{\alpha_{it}^{a}-\Sigma_{q}\widehat{\alpha}_{it}^{q}}{4},$$

where annual data for $\alpha_{it}^{a}$ are available from the BEA. With this approximation error we generate a second round of quarterly valuation adjustments and positions as

$$\widehat{\widehat{\alpha}}_{it}^{q} =\widehat{\alpha}_{it}^{q}+e_{it} ^{q}=\widehat{R\alpha}_{it}^{q}\cdot\widehat{A}_{it}^{q-1}+e_{it}^{q}$$

$$\widehat{\widehat{A}}_{it}^{q} =\widehat{\widehat{A}}_{it}^{q-1}+O_{t} ^{q}+\widehat{\widehat{\alpha}}_{it}^{q}.$$

As shown in Appendix 2, this second round of quarterly positions is fully consistent with BEA's annual data: $\widehat{\widehat{A}}_{it}^{4}=A_{it}^{a}$.

We now turn to estimating quarterly positions.

4.2  Results

We estimate quarterly DI positions at current cost ($cc$) and market value ($mv$) for DI claims and liabilities. We create a given year's quarter positions by taking BEA's previous year-end DI position and adding the reported quarterly flows and add our quarterly valuation adjustments. In this procedure we ensure our Q4 position matches BEA's reported year-end position as noted above.

Table 1 provides the quarterly DI capital stocks, flows and total valuation adjustments over time for both the current cost and market value for DI Abroad. The fourth quarter capital stock is the same value as BEA's yearend value, and the sum of the four quarter valuation adjustments equals BEA's annual valuation adjustment. The valuation adjustment at current cost, on average, equals 35 percent, in absolute value, of the flow. At market value, the valuation adjustment is nearly 350 percent of the average flow in absolute value, with large positive and negative swings in the adjustment over time.

Table 2 provides the quarterly DI capital stock, flows and total valuation adjustments over time for both the current cost and market value for DI in the United States. Again, the fourth quarter capital stock is the same value as BEA's annual value, and the sum of the four quarter valuation adjustments equals BEA's annual valuation adjustment. The valuation adjustment at current cost, on average, equals 45 percent, in absolute value, of the flow. At market value, the valuation adjustment is over 600 percent of the average flow, with large positive and negative swings in the adjustment over time.

The data presented here are for historical positions, flows and valuation adjustments. The next section uses the valuation models to look into possible future paths of these series.

5  Asset-price Shocks and the Net Direct Investment Position

Now that we have an empirical model for the valuation rates, we can estimate the effect of future changes in asset prices on the net direct investment position ($NDIP)$. We consider changes in the inflation rates (U.S. and foreign), in the returns on the stock markets (U.S. and foreign) and in the exchange rate. We quantify the effect of a change each of these asset prices, individually, on the NDIP, for both the current cost and market value valuation. We begin, in the first subsection, by providing rules of thumb for the immediate impact of an asset price change on the NDIP. We find potentially large impacts on the NDIP from what might be considered small asset price shocks. In addition, a one-time shock to a asset price affects not only the immediate valuation adjustment and position but, as we show in the following subsection, there are long-term implications for the positions as well.

5.1  Short-run Effect

The model associated with the current-cost valuation is

$$NDIP_{cc,t} =A_{cc,t}-L_{cc,t}$$

$$A_{cc,t} =A_{cc,t-1}+O_{t}+R\alpha_{cc,t}\cdot A_{cc,t-1}$$

$$L_{cc,t} =L_{cc,t-1}+I_{t}+R\lambda_{cc,t}\cdot L_{cc,t-1}$$

$$R\alpha_{cc,t} =\alpha\widehat{E}_{t}+\beta\pi_{t}^{\ast}$$

$$R\lambda_{cc,t} =\rho\pi_{t},$$

Table 1. Direct Investment Abroad (in million $)

Year	Quarter	Current Cost KS	Current Cost Change in KS	Current Cost Flow	Current Cost Total VA	Market Value KS	Market Value Change in KS	Market Value Flow	Market Value Total VA
1995	1	815874	29309	21684	7625	1139108.425	24526	21684	2842
1995	2	834522	18648	16033	2615	1220437.089	81329	16033	65296
1995	3	856147	21625	23023	-1398	1293126.242	72689	23023	49666
1995	4	885506	29359	38010	-8651	1363792	70666	38010	32656
1996	1	911539	26033	26732	-699	1422439.031	58647	26732	31915
1996	2	927258	15719	16828	-1109	1464040.084	41601	16828	24773
1996	3	954129	26871	24803	2068	1508899.94	44860	24803	20057
1996	4	989810	35681	23522	12159	1608340	99440	23522	75918
1997	1	1010110	20300	32669	-12369	1682658.834	74319	32669	41650
1997	2	1037967	27858	27385	473	1862068.97	179410	27385	152025
1997	3	1056033	18066	23369	-5303	1950936.36	88867	23369	65498
1997	4	1068063	12030	21380	-9350	1879285	-71651	21380	-93031
1998	1	1111160	43097	45257	-2160	2166971.547	287687	45257	242430
1998	2	1148095	36935	46885	-9950	2180744.607	13773	46885	-33112
1998	3	1172812	24717	22958	1759	1962382.426	-218362	22958	-241320
1998	4	1196021	23209	27544	-4335	2279601	317219	27544	289675
1999	1	1248491	52470	72236	-19766	2362913.009	83312	72236	11076
1999	2	1298687	50196	52259	-2063	2480042.653	117130	52259	64871
1999	3	1381643	82956	66765	16191	2497631.309	17589	66765	-49176
1999	4	1414355	32712	33674	-962	2839639	342008	33674	308334
2000	1	1440131	25776	38510	-12734	2881114.96	41476	38510	2966
2000	2	1475532	35401	55407	-20006	2846239.198	-34876	55407	-90283
2000	3	1496762	21230	42712	-21482	2767258.588	-78981	42712	-121693
2000	4	1531607	34845	22583	12262	2694014	-73245	22583	-95828
2001	1	1543441	11834	39909	-28075	2425739.877	-268274	39909	-308183
2001	2	1588715	45274	30410	14864	2436059.619	10320	30410	-20090
2001	3	1658125	69410	47370	22040	2231787.876	-204272	47370	-251642
2001	4	1693131	35006	24660	10346	2314934	83146	24660	58486
2002	1	1718716	25585	51746	-26161	2345467.99	30534	51746	-21212
2002	2	1791898	73182	39655	33527	2239402.297	-106066	39655	-145721
2002	3	1810512	18614	36755	-18141	1913123.282	-326279	36755	-363034
2002	4	1860418	49906	26304	23602	2022588	109465	26304	83161
2003	1	1884847	24429	20065	4364	1934927.266	-87661	20065	-107726
2003	2	1966235	81388	48195	33193	2262344.991	327418	48195	279223
2003	3	1995223	28989	43413	-14424	2400031.425	137686	43413	94273
2003	4	2062551	67328	28906	38422	2718203	318172	28906	289266
2004	1	2115541	52990	55821	-2831	2820170.148	101967	55821	46146
2004	2	2146824	31283	63323	-32040	2815277.108	-4893	63323	-68216
2004	3	2212984	66161	43606	22555	2904705.551	89428	43606	45822
2004	4	2367386	154402	89262	65140	3287373	382667	89262	293405

Table 2. Direct Investment in the United States (in million $)

Year	Quarter	Current Cost KS	Current Cost Change in KS	Current Cost Flow	Current Cost Total VA	Market Value KS	Market Value Change in KS	Market Value Flow	Market Value Total VA
1995	1	628743	10761	9439	1322	817828	59975	9439	50536
1995	2	643186	14443	12198	2245	883917	66090	12198	53892
1995	3	662028	18842	17860	982	949925	66008	17860	48148
1995	4	680066	18038	18279	-241	1005726	55801	18279	37522
1996	1	701912	21846	28133	-6287	1065806	60080	28133	31947
1996	2	712038	10126	16698	-6572	1108550	42744	16698	26046
1996	3	725333	13294	16596	-3302	1139223	30673	16596	14077
1996	4	745619	20286	25075	-4789	1229118	89895	25075	64820
1997	1	767706	22087	28669	-6582	1276546	47428	28669	18759
1997	2	785055	17349	23787	-6438	1470443	193896	23787	170109
1997	3	797881	12826	19094	-6268	1573382	102939	19094	83845
1997	4	824136	26255	34053	-7798	1637408	64026	34053	29973
1998	1	821741	-2395	20060	-22455	1843982	206574	20060	186514
1998	2	821735	-6	21047	-21053	1917661	73679	21047	52632
1998	3	826904	5169	25124	-19955	1768107	-149554	25124	-174678
1998	4	920044	93140	112814	-19674	2179035	410928	112814	298114
1999	1	923979	3935	27659	-23724	2286675	107640	27659	79981
1999	2	1041967	117988	143988	-26000	2553859	267185	143988	123197
1999	3	1063539	21572	51944	-30372	2448168	-105691	51944	-157635
1999	4	1101709	38170	65853	-27683	2798193	350025	65853	284172
2000	1	1152751	51042	51465	-423	2882045	83852	51465	32387
2000	2	1246553	93802	94953	-1151	2886134	4089	94953	-90864
2000	3	1330294	83741	82124	1617	2920703	34569	82124	-47555
2000	4	1421017	90723	92732	-2009	2783235	-137468	92732	-230200
2001	1	1457945	36928	58691	-21763	2525102	-258133	58691	-316824
2001	2	1505227	47282	61036	-13754	2700887	175785	61036	114749
2001	3	1506803	1577	16576	-14999	2334809	-366078	16576	-382654
2001	4	1518473	11670	30718	-19048	2560294	225485	30718	194767
2002	1	1525562	7089	28116	-21027	2580329	20035	28116	-8081
