Board of Governors of the Federal Reserve System
International Finance Discussion Papers
Number 892, April 2007 --- Screen Reader Version*

U.S. External Adjustment: Is It Disorderly? Is It Unique? Will It Disrupt the Rest of the World?

Steven B. Kamin, Trevor A. Reeve, and Nathan Sheets^**

NOTE: International Finance Discussion Papers are preliminary materials circulated to stimulate discussion and critical comment. References in publications to International Finance Discussion Papers (other than an acknowledgment that the writer has had access to unpublished material) should be cleared with the author or authors. Recent IFDPs are available on the Web at http://www.federalreserve.gov/pubs/ifdp/. This paper can be downloaded without charge from the Social Science Research Network electronic library at http://www.ssrn.com/.

Abstract:

In recent years, a number of studies have analyzed the experiences of a broad range of industrial economies during periods when their current account deficits have narrowed. Such studies identified systematic aspects of external adjustment, but it is unclear how good a guide the experience of other countries may be to the effects of a future narrowing of the U.S. external imbalance. In contrast, this paper focuses in depth on the historical experience of external adjustment in the United States. Using data from the past thirty-five years, we compare economic performance in episodes during which the U.S. trade balance deteriorated and episodes during which it adjusted. We find trade balance adjustment to have been generally benign: U.S. real GDP growth tended to fall, but not to a statistically significant extent; housing construction slumped; inflation generally rose modestly; and although nominal interest rates tended to rise, real interest rates fell. The paper then compares these outcomes to those in foreign industrial economies. We find that the economic performance of the United States during periods of external adjustment is remarkably similar to the foreign experience. Finally, we also examine the performance of the foreign industrial economies during the periods of U.S. deterioration and adjustment. Contrary to concerns that U.S. adjustment will prove injurious to foreign economies, our analysis suggests that the foreign economies fared reasonably well during past periods when the U.S. trade deficit narrowed: the growth of domestic demand and real GDP abroad generally strengthened during such episodes, although inflation and interest rates tended to rise as well.

Keywords: current account deficit, trade deficit, exchange rate adjustment, disorderly correction.

JEL classification: F32, F41.

I.  Introduction and Summary

Observers have raised concerns that a future adjustment of the U.S. current account deficit driven by exchange rate depreciation may prove "disorderly"' for financial markets and U.S. economic performance. (See, inter alia, Eichengreen, 2004, Roubini and Setser, 2005, and Edwards, 2005.) In particular, it has been suggested that a fall in the dollar could boost interest rates, depress stock prices, and push the economy into recession. Such developments, it is argued, could outweigh the stimulus provided by a falling dollar via a rise in net exports, particularly if it took some time for net exports to respond.

How likely is the disorderly adjustment scenario to arise in practice? One approach to answering this question has been to examine the record of past external adjustments in industrial economies. By and large, such studies suggest that the experience of external adjustment has been reasonably benign, and that exchange rate changes associated with adjustment have not led to economic distress. Freund (2005) found, in 25 episodes of current account adjustment in industrial economies, indications of only moderate declines in GDP growth. Croke, Kamin, and Leduc (2006) revisited Freund's sample and found that in episodes where real exchange rates depreciated, growth was maintained; in episodes where real exchange rates did not depreciate, growth tended to decline, but that decline likely was the cause rather than the effect of current account adjustment. Freund and Warnock (2006) and Debelle and Galati (2005) come to similar conclusions, while Gagnon (2005) finds that currency crashes in industrial economies have generally led to lower, not higher, long-term interest rates. In contrast, Edwards (2005) presents results suggesting more disruptive effects of current account adjustment, but his methodology may not adequately control for the endogeneity of the current account with respect to growth.

These studies, for the most part, tend to undercut the view that a future U.S. external adjustment will be disruptive. Yet, it is generally acknowledged that owing to the size of its economy and of its external deficits, external adjustment in the United States may differ greatly from that in other industrial countries. The episodes studied in the above-mentioned papers include only one U.S. experience, the reduction of the trade deficit in the late 1980s, and accordingly any inferences drawn from them will be dominated by the experience of foreign economies.

The purpose of this paper is to characterize the effects of external adjustment on macroeconomic performance while focusing more closely on the U.S. historical experience. By so doing, we hope to make our findings as relevant as possible to a future U.S. adjustment. Using data from the past thirty-five years, this paper compares the economic performance of the U.S. economy during three episodes in which the U.S. nominal trade balance deteriorated significantly with economic performance in two episodes during which the trade balance adjusted. (Throughout this paper, we refer to a widening of the trade deficit as a "deterioration" and a narrowing of the trade deficit as an "adjustment.") The paper then examines the extent to which the behavior of key economic variables differed across the two types of episodes.¹

As a general statement, we find that the adjustment of the trade balance in these instances has been benign, occurring without financial crisis or significant economic upheaval. Nevertheless, the process of external adjustment has left a clear imprint on economic performance, with the following being some of the key features of the U.S. adjustment episodes:

• The real exchange value of the dollar has been roughly 13 percent weaker on average during periods of adjustment than during periods of deterioration.
• Real domestic demand has grown 2.6 percentage points more slowly during periods of trade balance adjustment than during periods of deterioration; most notably, growth of residential construction plunged at an annual rate of nearly 14 percentage points during adjustment periods.
• Slower domestic demand was offset in part by a substantial 1.6 percentage point rise in the contribution to GDP growth from net exports, as real exports surged and real imports decelerated.²
• On balance, real GDP growth was 1.1 percentage points slower during periods of external adjustment than during periods of deterioration, although this slowing is not statistically significant.
• Broad measures of inflation were generally higher during periods of external adjustment than during periods of deterioration. During adjustment, prices of tradeable goods appear to have risen relative to those of non-tradeable goods, thus supporting the process whereby exports rose and imports declined.
• Although nominal interest rates averaged a little higher during adjustment periods than during deterioration periods, real interest rates were lower during periods of adjustment.

These findings suggest that external adjustment in the United States, at least historically, has not been highly disruptive. Although domestic demand growth generally slowed during adjustment episodes, the effects on overall GDP growth were largely offset by an expansion of net exports.

Moreover, although our analysis is purely descriptive and does not address sources of shocks or directions of causality, it presents evidence that the weakening of domestic demand may not have owed to the external adjustment process itself. In the textbook case, exchange rate depreciation stimulates net exports and economic activity, thus pushing up real interest rates and curtailing domestic demand. Yet, we find that real interest rates declined during adjustment episodes. This lends support to an alternative possibility: autonomous declines in domestic demand may have led to lower real interest rates, declines in the dollar, and thus increases in net exports. That is, external adjustment may have been the effect rather than the cause of lower domestic demand and GDP growth.³ If this was the case, external adjustment would have played a stabilizing role, expanding net exports even as domestic demand weakened.

Our finding of relatively non-disruptive adjustment in the United States lines up well with the studies of adjustment, noted above, which draw primarily from the experiences of foreign industrial economies. To confirm that the U.S. and foreign industrial economies have responded similarly to the process of external adjustment, we identified periods of trade balance deterioration and adjustment in 20 OECD countries and, as we had for the United States, compared macroeconomic performance during the two types of episodes. By and large, we found the shifts in foreign real GDP growth and its components during transitions from external deterioration to adjustment to be remarkably similar to those in the United States: foreign GDP growth fell 1.1 percentage points as a 2.75 percentage point decline in domestic demand growth was offset by a 1.44 percentage point rise in the contribution of net exports to GDP growth. The foreign adjustment episodes did involve much less real exchange rate depreciation than in the United States, and foreign real interest rates rose rather than fell as in the United States. All told, however, we found little support for the view that the U.S. economy would exhibit a different--and perhaps more disorderly--response to external adjustment than other industrial economies.

Finally, in addition to raising concerns that a closing of the deficit would be disruptive to the U.S. economy, observers have also raised concerns about the effect of U.S. external adjustment on foreign economies. Lower U.S. trade deficits imply lower trade surpluses abroad, and contagion to foreign financial markets from disruptions in U.S. markets has also been highlighted as a risk. To shed some light on this concern, we extended the analyses described above to compare the macroeconomic performance of the foreign industrial economies during periods of U.S. trade balance deterioration and adjustment.

We found the performance of the foreign economies to be, in many respects, the mirror image of that of the U.S. economy. (This is not surprising, given our finding that the U.S. and foreign economies exhibit similar responses to their own external adjustment.) During periods of U.S. trade balance adjustment, the foreign economies exhibited (relative to periods of U.S. deterioration): higher growth of domestic demand and real GDP; weaker net exports; higher rates of inflation, with prices of non-tradeable goods rising relative to those of tradeables; and higher nominal and real interest rates. Some of these developments--in particular, the higher inflation, interest rates, and GDP growth--suggest that our trading partners likely were experiencing positive shocks to their domestic demand alongside the effects of slower U.S. demand for their products. In any event, the historical record suggests that U.S. external adjustment generally has not been injurious to our trading partners.

The remainder of this paper is organized as follows: The next section sketches out the methodology that we have used in our work. Section III section compares the performance of the U.S. economy during adjustment and deterioration episodes, while Section IV replicates the same analysis for the foreign industrial economies. Section V addresses the performance of the foreign economies during U.S. deterioration and adjustment periods. The final section offers some conclusions.

II.  Methodology

Looking at the U.S. experience in recent decades, we identify three periods in which the trade balance on goods and services deteriorated significantly: 1975:Q3 to 1978:Q1, 1980:Q4 to 1987:Q2, and 1997:Q2 to 2005:Q4. (These are the blue regions in Figure 1.) Although these periods were identified judgmentally rather than through application of formal numerical criteria, they quite obviously correspond to peaks and troughs in the trade balance. (Also, we found our results were not sensitive to small changes in the dating of the deterioration and adjustment periods.) We focus on the trade balance because theory indicates that improvement in the trade balance is necessary for sustained external adjustment. Only if the trade deficit is substantially closed will the growth of the U.S. net external debt be reined in so that the ratio of debt to GDP stabilizes.⁴

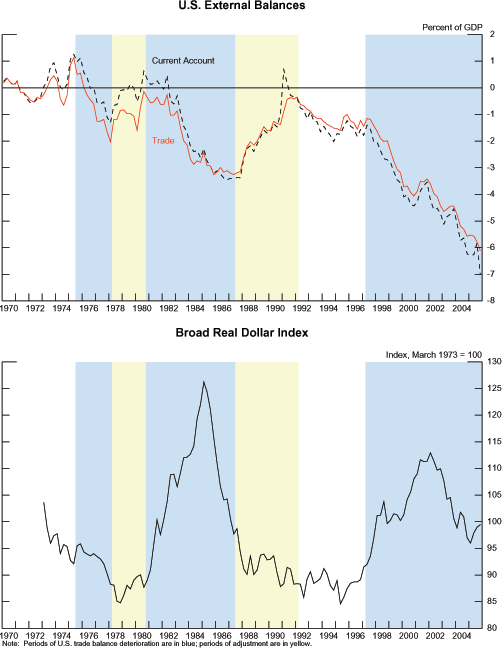

As shown in Figure 1, during the first of these episodes of deterioration, the trade balance slipped from a surplus of 1 percent of GDP to a deficit of 2 percent. In the second episode, during the 1980s, the trade balance declined from about balance to a deficit of 3 percent of GDP. Finally, in the latest episode, the trade deficit has widened from just over 1 percent of GDP to about 6 percent of GDP since mid-1997.

We also define two periods of trade balance adjustment: 1978:Q2 to 1980:Q3 and 1987:Q3 to 1992:Q1 (the yellow regions in Figure 1). In the first of these episodes, the trade balance improved about 2 percent of GDP over 2 1/2 years. In the second episode, the trade balance improved 3 percent of GDP over 5 1/2 years.

Having identified these episodes, we compare the real growth rates of GDP expenditure components during periods when the trade balance has adjusted with the behavior when the trade balance has deteriorated. We replicate this analysis for each component's share of nominal GDP, for the growth rates of various categories of imports and exports, and for other key macroeconomic variables.

Specifically, as indicated in the equation below, we regress the growth rate (or change in the nominal GDP share) of a given variable (y) on dummy variables indicating periods of trade balance deterioration ($$D^{\text{deterioration}}$$), periods of trade balance adjustment ($$D^{\text{adjustment}}$$), and periods when the trade balance was little changed ($$D^{\text{other}}$$). ⁵The estimated coefficients on the dummy variables measure the average performance of that variable during periods of deterioration and periods of adjustment. This methodology is equivalent to comparing means of variables across the different types of episodes, but it facilitates tests of statistical significance and also provides a framework in which we can test the robustness of our results.⁶

$$y=\beta_{1}\ast D^{\text{deterioration}}+\beta_{2}\ast D^{\text{adjustment} }+\beta_{3}\ast D^{\text{other}}+\varepsilon$$

Our results are reported in Tables 1-3 and discussed in detail below. As a robustness check, we run an alternative specification that includes U.S. GDP growth as an additional control variable. The purpose of this specification is to control for effects of the business cycle in order to more clearly identify the effects of trade balance deterioration and adjustment. The results from these regressions are reported in Table 4 and are similar to our baseline results.

III.  Results for the U.S. Economy

GDP components

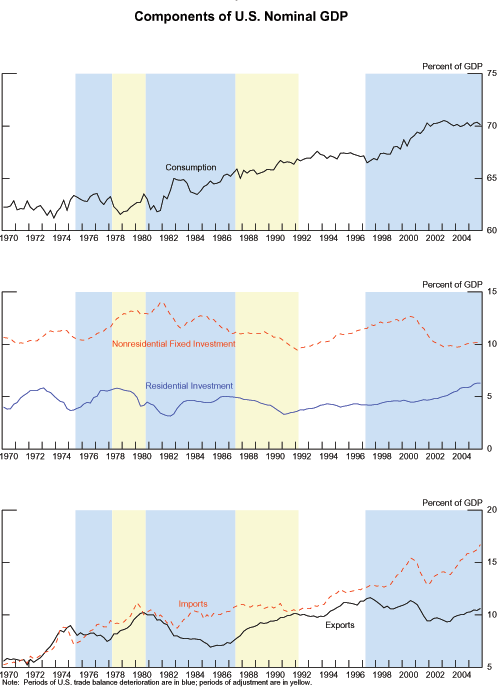

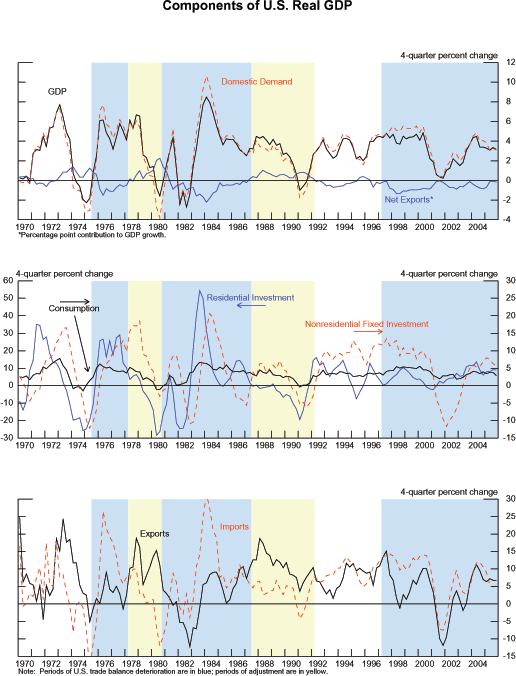

Table 1 focuses on the components of U.S. GDP. Column (1) summarizes the growth of real quantities of these components during periods of trade balance deterioration, column (2) draws on periods of adjustment, and column (3) presents the difference. Columns (4) through (6) present analogous calculations for changes in the shares of components in nominal GDP. Selected series are graphed in Figures 2 and 3.

Focusing first on column (1), it is apparent that the periods of trade balance deterioration enjoyed vigorous expansion as strong growth in domestic demand was only partially offset by a deterioration in net exports. Real GDP growth (line 1) averages 3 1/2 percent and domestic demand growth (line 2) averages over 4 percent. All of the major components of domestic demand grow solidly, but the 8.2 percent growth of total investment spending is notable and the 9.3 percent growth of residential investment is doubly so. Interestingly, real exports expand during these periods, averaging 3 1/2 percent growth, but imports grow over 10 percent. Accordingly, real net exports deteriorate, subtracting about 3/3 percentage point from GDP growth on average.

Turning to column (2), one would expect that adjustment of the trade balance would be associated with weaker domestic demand and stronger net exports, and this is confirmed by the data. During periods of adjustment, domestic demand growth averages only about 1 1/2 percent; as indicated in column (3), this represents a statistically significant slowing of 2.6 percentage points compared with periods of trade balance deterioration. All components of domestic demand weaken, but the slowing of residential investment is especially pronounced: its growth rate swings down an enormous 13.8 percentage points, to -4.4 percent, and its share of nominal GDP switches from rising nearly 0.3 percentage point a year during periods of deterioration (column 4) to declining about 0.4 percentage point a year during adjustment episodes (column 5).⁷ Housing is the foremost example of a non-traded good and, as such, its production would be expected to boom during periods of deterioration but to fall off during periods of adjustment (as shifts in relative prices redirect resources toward the production of tradables).

During periods of adjustment, a portion of the weakening in domestic demand growth is offset by a swing in the contribution from net exports to a positive 0.9 percentage point. Real export growth soars to 11 3/3 percent, 8 1/4 percentage points above its pace during the years of deterioration, and real import growth slows 9 percentage points to only about 1 percent annually.

On balance, real GDP growth averages only about 2 1/2 percentage points during periods of adjustment, about 1 percentage point slower than during periods of deterioration, although this difference falls short of statistical significance (t-value of 1.38). This result, while statistically insignificant, is surprising. In principle, if adjustment comes in response to a downward shock to the exchange rate, then higher net exports might be expected to offset weaker domestic demand, leaving GDP growth little changed--or even higher--on net. This issue will be discussed further below.

Another expectation we bring to external adjustment is that in response to real exchange rate depreciation, production of tradeable goods should perform more strongly than that of non-traded goods. Our findings provide only mixed confirmation of this prediction. Lines 13-15 present results for a breakdown of GDP into goods, services, and structures. The growth of structures GDP, which is non-traded, does indeed fall off sharply, by a statistically significant 4.2 percentage points. However, the growth of goods GDP, which is generally tradeable, also declines, by 1.1 percentage points (although this difference is not statistically significant). The growth of services GDP, which is generally considered to be non-traded, falls just 0.4 percentage point. Nonetheless, these results are likely clouded by the fact that some services are tradeable.

In an attempt to draw a finer line between tradeable and non-traded output, lines 11-12 present calculations based on data on U.S. GDP by industry.⁸ As is conventionally done, agriculture, mining, and manufacturing are classified as tradeable, whereas construction, utilities, wholesale and retail trade, and government are classified as non-traded. The remaining services industries were split into traded and non-traded following the classification in Jensen and Kletzer (2005).⁹ These calculations suggest that both traded and non-traded output performance weakens during adjustment, but growth of traded output slows by more. These differences, however, are not statistically significant.

The anomalous decline in both traded and non-traded sectors, discussed further below, may reflect that the initial impetus to trade adjustment owes to autonomous movements in domestic demand in addition to or instead of shocks to the dollar. In Table 4, which controls for U.S. GDP growth and thus may allow greater scope to identify the effects of external adjustment, the growth of goods GDP rises during adjustment episodes whereas that of both services and structures GDP declines; these movements are more consistent with the standard external adjustment scenario, although none of them are statistically significant. In contrast, growth of the traded aggregate continues to decline, albeit by a lesser and statistically insignificant amount.

Trade components

Does external adjustment rely more on export expansion or on import compression? Does it rely on strong performance in just a few trade categories, or are adjustments widespread? To address these questions, Table 2 compares movements in the components of trade during adjustment and deterioration periods. It indicates, first, that historically, external adjustment has involved both increases in the growth of exports and declines in the growth of imports. Secondly, no particular sub-categories of trade stand out as being especially important to adjustment, either on the import or the export side.

Prices, exchange rates, and interest rates

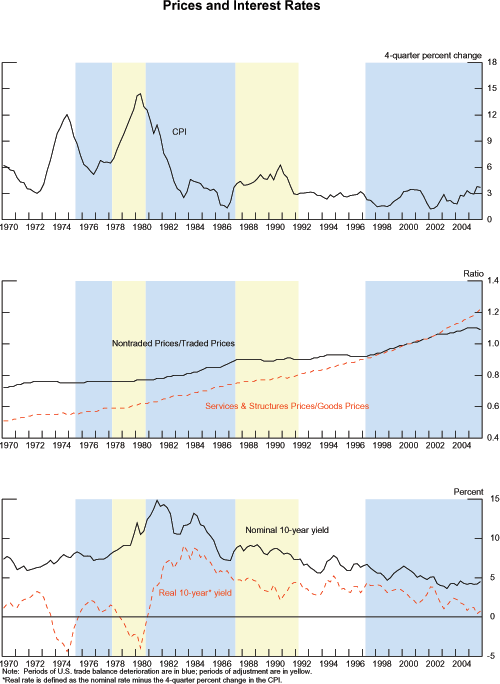

Table 3 examines whether other key economic variables differ systematically across the two types of periods. Unlike the variables reported in the previous tables, many of these variables have a significant secular trend, which complicates the time-series comparisons that we are making. The recent deterioration episode is particularly tricky in this respect, as there is no subsequent period of adjustment and because the low levels of inflation and nominal interest rates that have prevailed in recent years tend to pull down the averages for the deterioration periods. Selected series are graphed in Figure 4.

Accordingly, the first column in Table 3 uses our benchmark model to estimate the average difference in a variable's performance during periods of adjustment and periods of deterioration. The second column runs the regressions only through 1992 and thus focuses on the two matched episodes of deterioration and adjustment in our sample. The third column adds a time trend to our benchmark specification. And the final column defines the dependent variable as the variable of interest less its twenty-quarter moving average.

One result that emerges from the regressions is that broad measures of U.S. inflation (lines 1-2) generally appear to be higher during periods of adjustment than during periods of deterioration, suggesting a moderate effect of external adjustment on U.S. inflation.¹⁰ Lines 8-11 report the behavior of relative prices. By and large, moves in relative prices appear to support the process of adjustment in a manner consistent with what theory would suggest. Percent changes in the ratio of prices of non-traded to traded categories decline during the adjustment process, as do changes in the ratio of services prices to goods prices and in the ratio of structures prices to goods prices. This change in the evolution of relative prices during periods of external adjustment helps to shift U.S. demand away from goods (a proxy for tradables) and toward services and structures (proxies for non-tradables). In parallel, the shift in relative prices provides incentives for U.S. producers to shift toward the production of traded goods.

Lines 12 and 13 focus on the exchange rate. We find that on average during episodes of adjustment, the broad real dollar is about 13 percent weaker than during periods of deterioration. The annual rate of dollar depreciation appears (for three of the four specifications) to be 2 percentage points higher during periods of adjustment than during periods of deterioration, although the difference is not statistically significant. We note, however, that the dating of our episodes is geared toward adjustment of the nominal trade balance, which is not fully aligned with movements in exchange rates. The dollar started to depreciate during each of the deterioration periods shown in Exhibit 1, but it took time for the declines to show through to improved trade balances, consistent with J-curve effects. Accordingly, our results may understate the size of the currency moves that contributed to the adjustment of the trade balance.

Another important result is that trade prices (lines 14 and 15) increase significantly more rapidly during periods of external adjustment. We find that price inflation for imports and exports of core goods is higher by roughly 4 percentage points a year during periods of external adjustment.¹¹ These increases in rates of import and export price inflation during adjustment periods are considerably larger than can be explained by the 2 percentage point increase in the dollar's rate of depreciation during those periods.

What, then, is driving this surge in trade prices during external adjustment? Lines 16-19 look at the behavior of oil and commodity prices, important inputs in the production of some imports and exports.¹² The results are mixed. The level of oil prices is lower during adjustment periods, but the rate of change of those prices is (insignificantly) higher. Conversely, the level of non-fuel commodity prices is higher but their rate of change is (insignificantly) lower.¹³ All told, the variables that we consider do not seem able to explain fully the marked rise in the inflation rates of both import prices and export prices that have been a feature of U.S. adjustment episodes.

As shown in the next block of results, we find that nominal interest rates--both long-term and short-term--are generally higher, but real interest rates average 1 to 2 percentage points lower, during periods of external adjustment.¹⁴ These results will be discussed in greater detail below.

External adjustment and domestic demand

In standard textbook models of exchange-rate driven external adjustment, exchange rate depreciation stimulates net exports and pushes up trade prices. Both of these factors put upward pressure on domestic inflation, which prompts monetary policy to tighten and, thus, leads to a rise in real long-term interest rates. This increase in real long-term interest rates, in turn, induces a slowing of domestic consumption and investment. In principle, if the economy starts out in equilibrium and if monetary policy is geared toward price stability with maximum sustainable employment, the monetary policy reaction and the rise in real long-term rates should be just sufficient to maintain the economy's growth rate; that is, higher interest rates should induce a decline in domestic demand growth just sufficient to offset the rise in net exports.

In the two episodes of adjustment that we study, however, the growth rate of domestic demand falls more than the contribution from net exports rises, and GDP growth is accordingly lower (albeit not to a statistically significant extent). We are uncertain what is driving this result, especially given our finding that real interest rates-which we would expect to be a key mechanism for delivering adjustment of domestic demand-appear to have been lower during the periods of adjustment. One explanation is that growth of output and domestic demand have been unsustainably strong during periods of trade balance deterioration, and the slowdown in GDP growth during the adjustment has reflected, at least in part, a necessary moderation in domestic demand. In fact, it is possible that it was this slowing of demand and growth that led--via reductions in real interest rates and declines in the dollar--to external adjustment, rather than external adjustment leading to slowing growth. Note that in this scenario, external adjustment plays a stabilizing role, cushioning the decline in domestic demand through expansion of net exports.

This story that a cyclical weakening of domestic demand has represented a primary impetus for trade balance adjustment receives further support from the finding, noted above, that growth of goods GDP (and traded GDP more generally) slows more than that of services GDP (and non-traded GDP) during periods of adjustment. In principle, a depreciation shock to the exchange rate would boost traded goods output and depress non-traded goods output. However, if the initial impetus for adjustment is, instead, a cyclical slowing of the economy, this could explain why goods GDP growth falls off so much during adjustment: the demand for goods is generally more sensitive to cyclical conditions than the demand for services (see, for example, Stock and Watson, 2003), and thus cyclical effects on goods and services output may outweigh the effects of a more depreciated real exchange rate.

Real versus nominal external adjustment

Our results shed light on the differing features of real adjustment (the narrowing of the deficit in real net exports) compared with nominal adjustment (the narrowing of the nominal trade deficit). On the export side, external adjustment has reflected both increases in real exports (Table 1, column 2) and higher export prices (Table 3); accordingly, the share of nominal exports in GDP rises significantly (Table 1, column 5 and Figure 3). Conversely, whereas external adjustment also involves weaker real import growth relative to GDP (Table 1, column 2), the share of nominal imports in GDP does not decline significantly; increases in import prices (Table 3) offset slower import quantities, leaving the dollar value of imports little changed.

These results confirm research suggesting that import elasticities of demand are close to unity.¹⁵ Thus, when the dollar depreciates, increases in import prices lead to proportionate reductions in import quantities, leaving import values unchanged. Conversely, in response to dollar depreciation, increases in dollar export prices and export quantities both act in the same direction, raising the dollar value of exports. Accordingly, the improvement in real net exports associated with external adjustment has reflected both increases in real exports and declines in real imports; in contrast, the reduction of the nominal trade balance has mainly reflected increases in nominal exports, with nominal imports staying about flat. (See, also, Gust and Sheets, 2006.)

IV.  Does the U.S. Experience with Adjustment Differ from Foreign Experiences?

In the introduction, we noted that prior studies of external adjustment in a broad range of industrial economies had generally supported a relatively benign view. The question was whether the United States, owing to its particular characteristics (large size, low degree of openness, high degree of flexibility), might exhibit different behavior than that indicated by a broad sample of industrial economies. The results of the preceding section suggest that the prima facie answer to this question is: no. Consistent with findings by Freund (2005), Freund and Warnock (2006), Debelle and Galati (2005), and Gagnon (2005), external adjustments in the United States have been associated with some slowdown in GDP growth but not with marked disruptions to activity or financial markets.

In this section, we focus more closely on the extent of any differences in the external adjustment process between the United States and the other industrial economies. Using the methodology applied to U.S. data as described in Sections II and III, we estimate the value of a wide range of macroeconomic variables in 20 OECD countries during periods when their trade balances deteriorated and periods when their balances improved.¹⁶ As a measure of the net effect of external adjustment, we then calculate the differences in performance between the adjustment and deterioration periods for the foreign industrial countries, and compare those differences to the analogous calculations performed on U.S. data.

Methodology

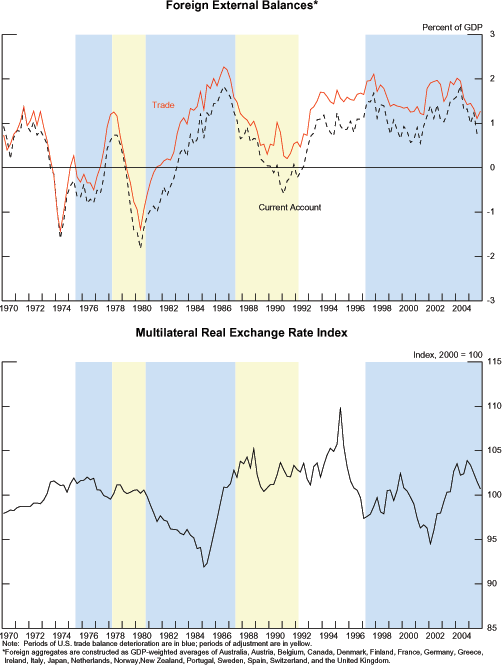

As in our analysis of the United States, we first identify periods of trade balance deterioration and adjustment. To automate this process we calculate a 9-quarter centered moving average of the ratio of the trade balance to GDP for each of the 20 countries. We then identify periods of deterioration or adjustment if the following two criteria are satisfied: (1) the trade balance/GDP ratio moves by at least 1 percentage point (up or down) over the period; and (2) the trade balance/GDP ratio moves by an average of at least 0.1 percentage point per quarter over the period. The numerical criteria are obviously arbitrary, but visual inspection suggests that they do a reasonable job of tracking periods of upswing and downswing in foreign trade balances (see Table 9).¹⁷ All told, we identified 79 adjustment episodes and 78 deterioration episodes.

With these periods of deterioration and adjustment in hand, we replicate the analysis that was applied to the U.S. data (Sections II and III), but use a pooled time series that includes both the United States and the 20 foreign OECD countries. The U.S. data are included in the regression to facilitate statistical comparison of the parameters for the United States with those of the foreign countries. Thus, to distinguish the effects of adjustment and deterioration in the United States from the effects abroad, we add interaction terms in which the standard period dummy variables are multiplied by a dummy variable ($$D^{\text{U.S.}}$$) that equals one for the United States and zero otherwise.

$$y_{i,t} =\beta_{1}\ast D_{i,t}^{\text{deterioration}}+\beta_{2}\ast D_{i,t}^{\text{adjustment}}+\beta_{3}\ast D_{i,t}^{\text{other}}$$

$$+\alpha_{1}\ast D_{i,t}^{\text{deterioration}}\ast D^{\text{U.S.}} +\alpha_{2}\ast D_{i,t}^{\text{adjustment}}\ast D^{\text{U.S.}}+\alpha_{3}\ast D_{i,t}^{\text{other}}\ast D^{\text{U.S.}}+\varepsilon_{i,t}$$

y: macroeconomic variable, i: country index, t: time index

Results

Table 5 presents the results of our analysis of the components of real GDP in both the foreign economies and the United States. As in Table 1 for the United States, columns (1) through (3) in Table 5 show the performance of these components during deterioration periods, adjustment periods, and the difference between the two. Column (4) presents the adjustment-minus-deterioration calculations for the United States. The U.S. estimates are based on the same dates for deterioration and adjustment periods as in Tables 1-4, but draw on the OECD and UN databases that are used for the foreign countries; accordingly, these estimates differ, but just slightly, from those shown in Table 1.¹⁸ Column (5) shows the differences between the adjustment-minus-deterioration calculations for the foreign countries and the United States, and indicates whether those differences are statistically significant. Finally, columns (6) through (10) present the analogous estimates for the change in nominal shares in GDP.

The salient message from Table 5 is the remarkably similar pattern of results for the foreign industrial countries compared with in the United States. In both cases, GDP growth falls by 1.1 percentage points in adjustment periods compared with in deterioration periods, with the growth of domestic demand falling by about 2 3/4 percentage points and the contribution of net exports to GDP growth rising around 1 1/4 percentage points. None of the differences for growth rates in the adjustment-minus-deterioration calculations (column 5) are statistically significant. That said, residential investment appears to fall off far more during adjustment periods in the United States than in foreign economies.

As with Table 3 for the United States alone, Table 6 compares adjustment-minus-deterioration calculations between foreign countries and the United States for prices, exchange rates, and interest rates. Here, some systematic differences do emerge. Most notably, as shown in lines 6 and 7, the external adjustment in the foreign economies appears to be associated with only a small amount of real exchange rate depreciation, compared with the more pronounced depreciation associated with U.S. adjustment. This difference may explain why the foreign economies appear to experience only small increases in consumer price inflation (lines 1 and 2) during adjustment periods and no increases in trade price inflation (lines 8 and 9). Interestingly, during adjustment periods, foreign nominal long-term interest rates and policy rates (lines 10 and 12) rise about the same as in the United States. However, because foreign inflation rises by much less than in the United States, real short- and long-term interest rates rise abroad, whereas they fall in the United States.

Interpretation

It is clear that during external adjustment, the growth of GDP and its components have reacted quite similarly in the foreign economies and in the United States. Moreover, compared with in the United States, it seems even less likely in the foreign economies that exchange rate declines caused the fall in GDP growth during adjustment, given the relatively modest amounts of depreciation we identified. This does raise the question, however, of why did foreign real interest rates rise rather than fall (as in the United States) during adjustment, and what caused foreign GDP growth to fall?

One possible explanation is that foreign monetary authorities historically have been more focused on the exchange rate than in the United States, so a smaller amount of depreciation led to greater real interest rate adjustment. Then, even a relatively modest amount of depreciation could have led to higher interest rates which lowered GDP growth (even though it would have been the lower GDP growth that achieved trade adjustment rather than the change in currency values). Or, alternatively, the initial shock might have been a slowdown in domestic demand leading to both declines in GDP growth and in the currency--but unlike in the United States, foreign authorities chose to raise real interest rates in response to exchange rate depreciation rather than lowering them in response to weaker activity. Resolving this issue will require further investigation.

V.  Performance of Foreign Economies during U.S. External Adjustment

U.S. external adjustment implies a reduction in the U.S. trade deficit and, accordingly, reductions in the trade surpluses of our trading partners. Some observers have voiced concerns that U.S. adjustment could pose a significant threat to economic activity abroad. What does the historical record indicate? Here, we compare the macroeconomic performance of the 20 OECD countries we studied in Section IV during the same periods of U.S. external deterioration and adjustment that we used to analyze U.S. macroeconomic performance in Sections II and III.¹⁹ All performance indicators represent averages over the foreign OECD sample, weighted by nominal dollar-value GDP at market exchange rates. The results are shown in Tables 7 and 8, and selected series are graphed in Figures 5-8.

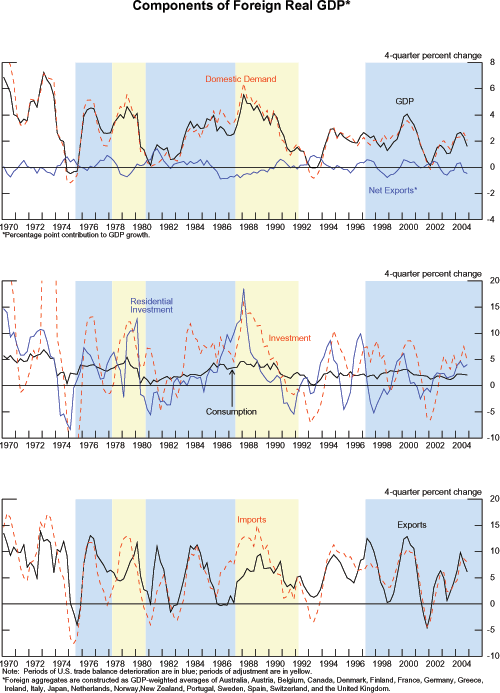

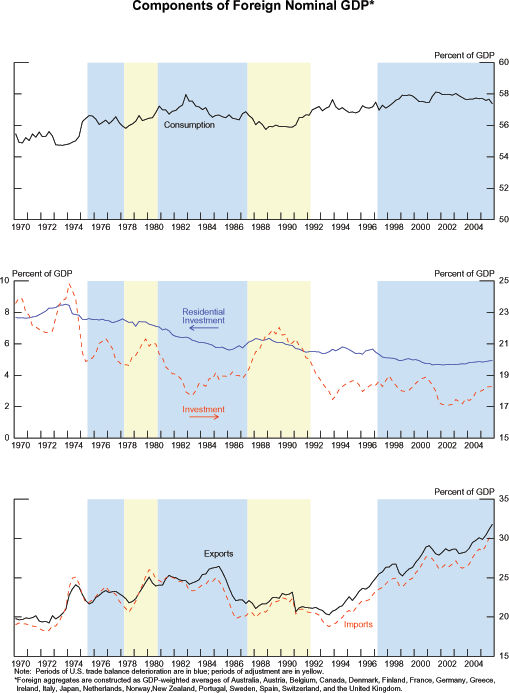

Analogous to Table 1 for the United States, Table 7 summarizes the performance of GDP and its components abroad. Column 1 indicates their average growth rates during periods when the U.S. trade deficit widened, column 2 presents analogous calculations for periods when the U.S. trade deficit narrowed, and column 3 indicates the difference; columns 4-6 analyze the shares of components in nominal GDP.

The central message of Table 7 is that foreign real GDP growth has been higher during periods of U.S. external adjustment than during periods of U.S. deterioration. Net exports impose a slight drag on GDP growth during U.S. adjustment periods, but this is offset by stronger domestic demand growth. All components of domestic demand show more rapid growth during U.S. adjustment periods, although these differences are only statistically significant for consumption.

In Section III, we noted that it was difficult to explain the decline in U.S. GDP growth solely by referring to a decline in the dollar. An autonomous decline in the dollar should have boosted net exports and left U.S. GDP growth at least as high as during periods of trade balance deterioration--therefore, some autonomous softening of domestic demand must also have been involved. By the same token, the rise in foreign GDP growth during periods of U.S. adjustment cannot be fully explained either by declines in the dollar or softenings of U.S. domestic demand. Either of these two events would have weighed on net exports in our trading partners, inducing declines in activity and prices that should have led to some decline in interest rates. Lower foreign interest rates, in turn, would have been expected to boost domestic demand abroad, but not to the extent that overall GDP growth would actually exceed what it would have been in the absence of U.S. external adjustment. Therefore, an autonomous strengthening of domestic demand abroad also appears to have been at work in pushing up foreign GDP growth during periods of U.S. adjustment.

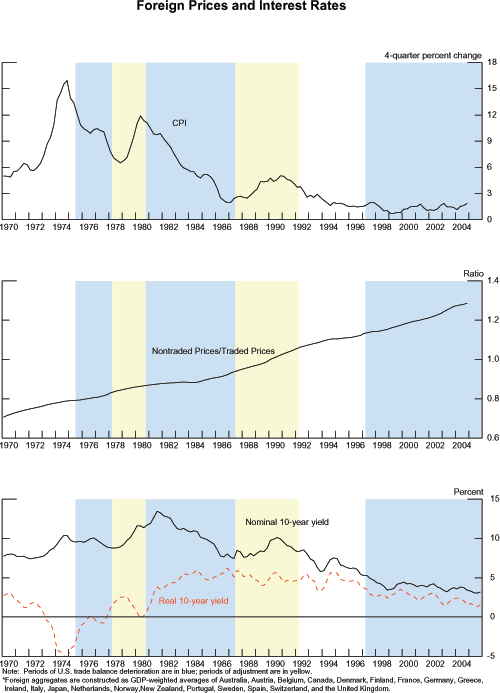

Table 8 summarizes the performance of foreign prices, exchange rates, and interest rates during periods of U.S. trade adjustment and deterioration. These calculations also point to a positive shock to domestic demand abroad during periods of U.S. trade adjustment. First, although foreign currencies are more appreciated during periods of U.S. adjustment (line 6), the results on lines 1-4 generally indicate that inflation is higher during periods of U.S. adjustment than deterioration, consistent with higher demand and growth.

Second, as also noted above, we would expect declines in the U.S. trade deficit, by themselves, to be reflected in lower net exports of our trading partners, diminished activity and prices, and hence lower interest rates. In fact, lines 10-13 of Table 8 point, for the most part, to higher nominal and real interest rates during periods of U.S. adjustment compared with periods of U.S. deterioration.

To sum up, the foreign industrial economies generally appear not to have been adversely affected by past U.S. external adjustments. Their benign experience appears to reflect more than merely flexible responses to the effects of reduced U.S. trade deficits. In fact, just as U.S. adjustments appear to have been associated with negative shocks to U.S. domestic demand, U.S. adjustments also appear to have been associated with positive shocks to domestic demand in foreign countries. And just as U.S. external adjustment may have played a stabilizing role in the United States, cushioning the falloff in domestic demand, the counterpart declines in net exports abroad may have played a similar stabilizing role by offsetting some of strength of domestic demand in foreign economies.

VI.  Conclusion

In this paper, we have analyzed the effects of U.S. external adjustment by comparing past episodes when the trade balance deteriorated with those when it narrowed. At the most general level, the purpose of our research was to identify the basic empirical characteristics of U.S. external adjustment. More specifically, we were interested in assessing the historical support for claims that future external adjustment in the United States, likely driven by a decline in the dollar, would prove injurious both for the U.S. economy and for that of our foreign trading partners.

We found that during periods of U.S. external adjustment, real GDP growth did tend to slow somewhat as improvements in net exports were more than offset by deteriorations in domestic demand. However, this slowing of real GDP growth was not statistically significant. Moreover, several features of the external adjustment episodes--the fall in real interest rates and the slowing of tradeable output growth--indicate that declines in GDP growth may in part have reflected autonomous weakenings of domestic demand. That is, declines in GDP growth may have been the cause as much as the outcome of external adjustment.

Our findings of relatively benign external adjustment episodes in the United States are consistent with the results of prior research focusing on the experiences of industrial economies more generally. To further explore this issue, we analyzed the macroeconomic performance of 20 foreign OECD countries during periods when their trade balances deteriorated and improved, using the same methodology that we had applied to U.S. data. Comparing adjustment episodes with deterioration episodes, we found that the foreign economies experienced falloffs in domestic demand growth, offsetting improvements in net exports, and resultant small declines in GDP growth that were remarkably similar to those in the United States. The foreign economies did experience much smaller real exchange rate depreciations during adjustment periods than in the United States, and increases rather than declines in real interest rates. All told, however, our results cast doubt on the proposition that the United States will exhibit unique responses to external adjustment.

Finally, our research addressed the concern that U.S. external adjustment might substantially drag down growth in our trading partners. In the mirror image to the experience of the United States, we found that compared with periods of U.S. trade balance deterioration, GDP growth in the foreign industrial economies actually rose during U.S. adjustment episodes: domestic demand strengthened significantly more than net exports weakened. This result, together with findings that foreign inflation and interest rates also rose during U.S. adjustment episodes, suggests that just as these adjustment episodes have been associated with negative demand shocks in the United States, they have been associated with positive demand shocks abroad.

This juxtaposition of negative demand shocks here and positive shocks abroad may be mere coincidence. An alternative possibility is that the U.S. trade deficit is most likely to adjust when both U.S. domestic demand experiences a negative shock and domestic demand abroad receives a positive shock. Such a combination of shocks would lead not only to a maximum income effect on the U.S. trade balance--lowering U.S. imports and raising U.S. exports--but also to a maximum exchange rate effect, with declining interest rates in the United States and rising interest rates abroad both pushing the dollar down. We leave it to additional research to pursue this issue further.

There is no guarantee that future adjustment episodes will follow in the footsteps of past episodes, and we cannot preclude the possibility that a reduction of the U.S. trade deficit will be injurious to both the U.S. and foreign economies. For example, the U.S. trade and current account deficits are presently much larger than they were at the start of prior adjustment episodes, so a future correction may involve considerably more adjustment than in the past; this, in turn, could entail more disruptive effects than the historical experience would indicate. However, the historical evidence suggests, at a minimum, that it is quite possible for the U.S. trade deficit to narrow without undue economic distress, either at home or abroad. Moreover, past experience points to the possibility that when U.S. external adjustment materializes, it could do so in a way that helps stabilize the global economy, cushioning declines in U.S. demand and limiting overheating in foreign economies.

References

Ahearne, Alan, John Ammer, Brian Doyle, Linda Kole, and Robert Martin (2005), "House Prices and Monetary Policy: A Cross-Country Survey," International Finance Discussion Papers No. 841, September, Board of Governors of the Federal Reserve System.

Croke, Hilary, Steven Kamin, and Sylvain Leduc (2006), "An Assessment of the Disorderly Adjustment Hypothesis for Industrial Economies," International Finance, Vol. 9, Issue 1.

Debelle, Guy and Gabbriele Galati (2005), "Current Account Adjustment and Capital Flows," BIS Working Paper No. 169, February.

Edwards, Sebastian (2005), "Is the U.S. Current Account Deficit Sustainable? And If Not, How Costly is Adjustment Likely to Be?" NBER Working Paper 11541, August.

Eichengreen, Barry (2004), "Why the Dollar's Fall is Not to be Welcomed," Financial Times, December 20.

Freund, Caroline (2005), "Current Account Adjustment in Industrial Countries," Journal of International Money and Finance, Vol. 24, Issue 8, December.

Freund, Caroline and Frank Warnock (2006), "Current Account Deficits in Industrial Countries: The Bigger They Are, The Harder They Fall," in Richard Clarida, ed., G7 Current Account Balances: Sustainability and Adjustment, Chicago: University of Chicago Press.

Gagnon, Joseph (2005), "Currency Crashes and Bond Yields in Industrial Countries," Board of Governors of the Federal Reserve System, International Finance Discussion Papers No. 837, August, Board of Governors of the Federal Reserve System.

Gramlich, Edward (2004), "Budget and Trade Deficits: Linked, Both Worrisome in the Long Run, But Not Twins," Speech to Los Angeles Chapter of the National Association for Business Economics, March, Board of Governors of the Federal Reserve System.

Gust, Christopher and Nathan Sheets (2006), "The Adjustment of Global External Imbalances: Does Partial Exchange Rate Pass-through to Trade Prices Matter?" International Finance Discussion Papers No. 850, January, Board of Governors of the Federal Reserve System.

Hooper, Peter and Jaime Marquez (1995), "Exchange rates, prices, and external adjustment in the United States and Japan," in Peter Kenen, ed., Understanding Independence, pp. 107-168, Princeton, NJ: Princeton University Press.

Jensen, Bradford and Lori Kletzer (2005), "Tradable Services: Understanding the Scope and Impact of Services Offshoring," in Lael Brainard and Susan Collins, eds., Brookings Trade Forum, 2005, Washington, DC: Brookings Institution Press.

Marquez, Jaime (2002), Estimating Trade Elasticities, Dordrecht, The Netherlands: Kluwer Aca-

demic Publishers.

Roubini, Nouriel and Brad Setser (2005), "Will the Bretton Woods 2 Regime Unravel Soon? The Risk of a Hard Landing in 2005-2006," unpublished working paper, February.

Senhadji, Abdelhak and Claudio Montenegro (1999), "Time Series Analysis of Export Demand Equations: A Cross-country Analysis," IMF Staff Papers 46, 259-73.

Stock, James and Mark Watson (2003), "Has the Business Cycle Changed and Why?" in Mark Gertler and Kenneth Rogoff, eds., NBER Macroeconomics Annual 2002, Vol. 17, pp. 159-218, Cambridge, MA: MIT Press.

Data Source Appendix

U.S. Data

• Data for the U.S. current account and international trade in goods and services are from the Balance of Payments Accounts, Bureau of Economic Analysis (BEA), http://www.bea.gov/bea/di/home/bop.htm.
• U.S. GDP data are from the BEA's National Income and Product Accounts (NIPA), http://www.bea.gov/bea/dn/home/gdp.htm.
• The traded and non-traded GDP data are constructed from the BEA's GDP-by-Industry Accounts, http://www.bea.gov/bea/dn2/home/annual_industry.htm. Traded output is defined as the sum of agriculture; mining; manufacturing; information services; finance and insurance; professional, scientific, and technical services; and management of enterprises (using "chained" arithmetic, as appropriate). Non-traded output includes construction, utilities, wholesale and retail trade, government; transportation and warehousing; real estate and rental and leasing; administrative and waste management services; education, health care, and social assistance; arts, entertainment, recreation, accommodation, and food services; and other services, except government. The annual data are converted to quarterly using a cubic spline technique.
• The U.S. GDP Gap is from the OECD Economic Outlook database. Information about this database can be found at http://www.oecd.org.
• The U.S. CPI is from the Bureau of Labor Statistics, http://www.bls.gov/cpi/home.htm.
• The U.S. broad real dollar index and U.S. interest rates are from the Federal Reserve Board, http://www.federalreserve.gov/releases/.
• Core import and export prices are constructed by the Federal Reserve Board from the NIPA data.
• U.S. oil import prices are provided by the BEA. Non-fuel commodity prices are from the International Monetary Fund, http://www.imf.org/external/np/res/commod/index.asp.

Foreign Data

• National Accounts data are from the OECD Quarterly National Accounts database and from countries' national statistical agencies.
• The traded and non-traded output data for all countries are from the United Nations, http://unstats.un.org/unsd/snaama/dnllist.asp. These data provide a breakdown of nominal and real gross value added for every country on an annual basis. Traded output is defined as the sum of Agriculture, Forestry, Fishing and Mining, and Manufacturing and Utilities. Non-traded output is the sum of Construction, Wholesale and Retail trade, Transport, Communications and Other Activities. The annual data are converted to quarterly using a cubic spline technique.
• The output gap, current account, import and export price deflators, and interest rates are from the OECD Economic Outlook database. Information about this database can be found at http://www.oecd.org.
• The consumer price index for most countries are from their national statistical agencies. CPI data for countries in the euro area are from the European Central Bank, http://www.ecb.int. They define core CPI as headline excluding food, energy, alcohol and tobacco. All other countries core CPI use headline excluding food and energy.
• The nominal and real effective exchange rates are from the Bank for International Settlements, http://www.bis.org/statistics/eer/index.htm.
• The bilateral exchange rates are from Bloomberg and the Federal Reserve Board, http://www.federalreserve.gov/releases/H10/Hist/.

Table 1 (Panel 1). U.S. GDP Components - Real Growth Rates (percent, a.r.)

* Denotes significance at the 10 percent level.

** Denotes significance at the 5 percent level.

/1 The regressions for this variable in real terms are expressed as percentage point contributions to real GDP growth.

Table 1 (Panel 2). U.S. GDP Components - Change in Nominal Shares (percentage pts., a.r.)

* Denotes significance at the 10 percent level.

** Denotes significance at the 5 percent level.

/1 The regressions for this variable in real terms are expressed as percentage point contributions to real GDP growth.

Table 2 (Panel 1). U.S. Trade Components - Real Growth Rates (percent, a.r.)

* Denotes significance at the 10 percent level.

** Denotes significance at the 5 percent level.

/1 Nominal shares for the categories of trade are defined as the percent of total exports (or imports) of goods and services.

Table 2 (Panel 2). U.S. Trade Components - Change in Nominal Shares (percentage pts., a.r.)/1

* Denotes significance at the 10 percent level.

** Denotes significance at the 5 percent level.

/1 Nominal shares for the categories of trade are defined as the percent of total exports (or imports) of goods and services.

Table 3. U.S. Prices and Related Variables -- Adjustment Minus Deterioration (percentage points, a.r.)

*Denotes significance at the 10 percent level.

**Denotes significance at the 5 percent level.

/1 Core imports are imports of goods excluding iol, computers, and semiconductors. Core exports are exports of goods excluding computers and semiconductors.

/2 Real rate is defined as the nominal rate minus the 4-quarter percent change in the CPI.

/3 Real rate is defined as the nominal rate minus the annualized quarterly percent change in the CPI.

Table 4 (Panel 1). GDP Components (Regressions include U.S. real GDP growth as an explanatory variable) - Real Growth Rates (percent, a.r.)

*Denotes significance at the 10 percent level.
**Denotes significance at the 5 percent level.
/1 The regressions for this variable in real terms are expressed as percentage point contributios to real GDP growth.

Table 4 (Panel 2). GDP Components (Regressions include U.S. real GDP growth as an explanatory variable) - Change in Nominal Shares (percentage pts., a.r.)

*Denotes significance at the 10 percent level.
**Denotes significance at the 5 percent level.
/1 The regressions for this variable in real terms are expressed as percentage point contributios to real GDP growth.

Table 5 (Panel 1). Foreign GDP Components - Real Growth Rates (prercent, a.r.)

Note: Foreign countries include Australia, Austria, Belgium, Canada, Denmark, Finalnd, France, Germany, Greece, Ireland, Italy, Japan, Netherlands, New Zealand, Norway, Portugal, Spain, Sweden, Switzerland, and the United Kingdom.
*Denotes significance at the 10 percent level.
**Denotes significance at the 5 percent level.
/1 The regressions for this variable in real terms are expressed as percentage point contributions to real GDP growth.
/2 The GDP gap is defined as (actual - potential)/potential, in percent.

Table 5 (Panel 2). Foreign GDP Components - Change in Nominal Shares (percentage pts., a.r.)

Note: Foreign countries include Australia, Austria, Belgium, Canada, Denmark, Finalnd, France, Germany, Greece, Ireland, Italy, Japan, Netherlands, New Zealand, Norway, Portugal, Spain, Sweden, Switzerland, and the United Kingdom.
*Denotes significance at the 10 percent level.
**Denotes significance at the 5 percent level.
/1 The regressions for this variable in real terms are expressed as percentage point contributions to real GDP growth.
/2 The GDP gap is defined as (actual - potential)/potential, in percent.

Table 6 (Panel 1). Other Foreign Variables -- Adjustment Minus Deterioration (percentage points, a.r.) - Benchmark Model

Note: Foreign countries include Australia, Austria, Belgium, Canada, Denmark, Finalnd, France, Germany, Greece, Ireland, Italy, Japan, Netherlands, New Zealand, Norway, Portugal, Spain, Sweden, Switzerland, and the United Kingdom.
*Denotes significance at the 10 percent level.
**Denotes significance at the 5 percent level.
/1 Real rate is defined as the nominal rate minus the 4-quarter percent change in the CPI.
/2 Real rate is defined as the nominal rate minus the annualized quarterly precent change in the CPI.

Table 6 (Panel 2). Other Foreign Variables -- Adjustment Minus Deterioration (percentage points, a.r.) - Time Trend

Note: Foreign countries include Australia, Austria, Belgium, Canada, Denmark, Finalnd, France, Germany, Greece, Ireland, Italy, Japan, Netherlands, New Zealand, Norway, Portugal, Spain, Sweden, Switzerland, and the United Kingdom.
*Denotes significance at the 10 percent level.
**Denotes significance at the 5 percent level.
/1 Real rate is defined as the nominal rate minus the 4-quarter percent change in the CPI.
/2 Real rate is defined as the nominal rate minus the annualized quarterly precent change in the CPI.

Table 7 (Panel 1). Foreign GDP Components during U.S. Deterioration and Adjustment Periods - Real Growth Rates (percent, a.r.)

Note: Foreign aggregates are constructed as GDP-weighted averages of Australia, Austria, Belgium, Canada, Denmark, Finalnd, France, Germany, Greece, Ireland, Italy, Japan, Netherlands, New Zealand, Norway, Portugal, Spain, Sweden, Switzerland, and the United Kingdom.
*Denotes significance at the 10 percent level.
**Denotes significance at the 5 percent level.
/1 The regressions for this variable in real terms are expressed as percentage point contributions to real GDP growth.

Table 7 (Panel 2). Foreign GDP Components during U.S. Deterioration and Adjustment Periods - Change in Nominal Shares (percentage pts., a.r.)

Note: Foreign aggregates are constructed as GDP-weighted averages of Australia, Austria, Belgium, Canada, Denmark, Finalnd, France, Germany, Greece, Ireland, Italy, Japan, Netherlands, New Zealand, Norway, Portugal, Spain, Sweden, Switzerland, and the United Kingdom.
*Denotes significance at the 10 percent level.
**Denotes significance at the 5 percent level.
/1 The regressions for this variable in real terms are expressed as percentage point contributions to real GDP growth.

Table 8. Other Foreign Variables -- U.S. Adjustment Minus U.S. Deterioration (percentage pts., a.r.)

Note: Foreign aggregates are constructed as GDP-weighted averages of Australia, Austria, Belgium, Canada, Denmark, Finalnd, France, Germany, Greece, Ireland, Italy, Japan, Netherlands, New Zealand, Norway, Portugal, Spain, Sweden, Switzerland, and the United Kingdom.
*Denotes significance at the 10 percent level.
**Denotes significance at the 5 percent level.
/1 Real rate is defined as the nominal rate minus the 4-quarter percent change in the CPI.
/2 Real rate is defined as the nominal rate minus the annualized quarterly percent change in the CPI.

Table 9. Foreign Trade Balance Adjustment and Deterioration Dates

Explanation for Figures 1 - 8

This paper contains 8 figures, each of which plot data from 1970:Q1 to 2005:Q4. Each figure contains background shading to indicate periods when the U.S. trade balance adjusted and periods when the U.S. trade balance deteriorated. These periods are discussed in the main text of the paper. The three periods of U.S. trade balance deterioration are 1975:Q3 to 1978:Q1, 1980:Q4 to 1987:Q2, and 1997:Q2 to 2005:Q4. The two periods of U.S. trade balance adjustment are 1978:Q2 to 1980:Q3 and 1987:Q3 to 1992:Q1.

Figure 1. U.S. External Balances (Panel One) and Broad Real Dollar Index (Panel Two)

Note: Periods of U.S. trade balance deterioration are in blue; periods of adjustment are in yellow.

Data for Figure 1

Dates	Panel 1, Line 1: U.S. Current Account Balance as Percent of GDP	Panel 1, Line 2: U.S. Trade Balance as Percent of GDP	Panel 2, Line 1: Broad Real Dollar Index
1970q1	0.24	0.18	NA
1970q2	0.38	0.36	NA
1970q3	0.2	0.2	NA
1970q4	0.08	0.13	NA
1971q1	0.25	0.23	NA
1971q2	-0.15	-0.18	NA
1971q3	-0.19	-0.18	NA
1971q4	-0.41	-0.32	NA
1972q1	-0.57	-0.46	NA
1972q2	-0.55	-0.53	NA
1972q3	-0.41	-0.36	NA
1972q4	-0.35	-0.41	NA
1973q1	0.04	-0.25	103.67
1973q2	0.25	0.01	98.89
1973q3	0.79	0.31	95.98
1973q4	0.94	0.45	97.39
1974q1	0.45	0.24	97.77
1974q2	0.03	-0.41	94.02
1974q3	-0.08	-0.65	95.72
1974q4	0.14	-0.3	95.38
1975q1	1.07	0.86	92.78
1975q2	1.25	1.13	92.14
1975q3	0.98	0.51	95.51
1975q4	1.12	0.55	95.85
1976q1	0.58	0.02	94.35
1976q2	0.37	-0.28	93.91
1976q3	-0.02	-0.45	93.61
1976q4	0.03	-0.6	94.02
1977q1	-0.55	-1.26	93.48
1977q2	-0.6	-1.25	93.04
1977q3	-0.53	-1.19	92.11
1977q4	-1.11	-1.66	90.24
1978q1	-1.31	-2.03	88.25
1978q2	-0.66	-1.18	88.13
1978q3	-0.63	-1.19	85.11
1978q4	-0.11	-0.85	84.77
1979q1	-0.07	-0.83	86.16
1979q2	-0.11	-0.97	88.08
1979q3	0.14	-0.97	87.4
1979q4	-0.01	-1.06	89.01
1980q1	-0.51	-1.6	89.76
1980q2	-0.14	-0.72	90.04
1980q3	0.62	-0.13	87.71
1980q4	0.33	-0.36	89.01
1981q1	0.13	-0.57	91.08
1981q2	0.16	-0.53	95.7
1981q3	0.26	-0.35	100.39
1981q4	0.09	-0.62	97.56
1982q1	-0.04	-0.63	100.44
1982q2	0.47	-0.26	103.73
1982q3	-0.49	-1.03	108.82
1982q4	-0.6	-1.03	108.92
1983q1	-0.3	-0.86	106.58
1983q2	-0.9	-1.48	109.11
1983q3	-1.44	-1.99	112.06
1983q4	-1.67	-2.14	112.13
1984q1	-2.2	-2.68	112.71
1984q2	-2.4	-2.87	114.22
1984q3	-2.35	-2.74	119.4
1984q4	-2.63	-2.8	122.02
1985q1	-2.28	-2.42	126.25
1985q2	-2.75	-2.92	124.41
1985q3	-2.94	-2.93	121.1
1985q4	-3.21	-3.26	115.92
1986q1	-3.12	-3.15	111.01
1986q2	-3.23	-2.99	106.62
1986q3	-3.39	-3.17	104.1
1986q4	-3.45	-3.11	104.29
1987q1	-3.4	-3.21	100.56
1987q2	-3.41	-3.26	97.72
1987q3	-3.37	-3.19	98.69
1987q4	-3.38	-3.14	94.24
1988q1	-2.66	-2.6	91.19
1988q2	-2.28	-2.21	90.13
1988q3	-2.17	-2.03	93.56
1988q4	-2.39	-2.15	90.08
1989q1	-2.12	-2.01	90.97
1989q2	-1.85	-1.74	93.75
1989q3	-1.59	-1.46	93.95
1989q4	-1.7	-1.6	92.84
1990q1	-1.65	-1.61	93
1990q2	-1.35	-1.26	93.62
1990q3	-1.47	-1.33	90.45
1990q4	-0.98	-1.38	87.87
1991q1	0.68	-0.88	88.37
1991q2	0.17	-0.43	91.47
1991q3	-0.28	-0.37	91.15
1991q4	-0.35	-0.41	88.3
1992q1	-0.4	-0.35	88.37
1992q2	-0.76	-0.63	88.32
1992q3	-0.83	-0.67	85.81
1992q4	-1.16	-0.81	89.24
1993q1	-0.9	-0.87	90.63
1993q2	-1.25	-1.07	88.45
1993q3	-1.28	-1.14	88.84
1993q4	-1.65	-1.14	89.39
1994q1	-1.45	-1.27	91.21
1994q2	-1.63	-1.37	90.25
1994q3	-1.78	-1.43	88.01
1994q4	-2.02	-1.51	87.18
1995q1	-1.72	-1.53	88.98
1995q2	-1.75	-1.6	84.61
1995q3	-1.45	-1.09	85.8
1995q4	-1.23	-1	87.48
1996q1	-1.44	-1.24	88.48
1996q2	-1.53	-1.31	88.72
1996q3	-1.83	-1.56	88.7
1996q4	-1.57	-1.22	89.14
1997q1	-1.78	-1.45	91.51
1997q2	-1.4	-1.15	92.05
1997q3	-1.56	-1.19	93.59
1997q4	-2.03	-1.42	96.93
1998q1	-2.04	-1.63	101.18
1998q2	-2.36	-1.9	101.23
1998q3	-2.66	-2.02	103.78
1998q4	-2.7	-1.98	99.65
1999q1	-2.78	-2.35	100.29
1999q2	-3.13	-2.75	101.52
1999q3	-3.45	-3.05	101.31
1999q4	-3.57	-3.19	100.24
2000q1	-4.09	-3.72	101.33
2000q2	-4.03	-3.68	104.18
2000q3	-4.36	-3.92	105.56
2000q4	-4.43	-4.06	108.02
2001q1	-4.29	-3.88	109.01
2001q2	-3.87	-3.5	111.65
2001q3	-3.67	-3.53	111.31
2001q4	-3.54	-3.42	111.37
2002q1	-4.22	-3.61	112.92
2002q2	-4.57	-3.96	111.45
2002q3	-4.52	-4.08	109.69
2002q4	-4.72	-4.43	109.95
2003q1	-5.12	-4.64	107.65
2003q2	-4.84	-4.55	104.23
2003q3	-4.75	-4.44	104.56
2003q4	-4.55	-4.44	100.64
2004q1	-5.1	-4.76	98.82
2004q2	-5.73	-5.2	101.83
2004q3	-5.64	-5.31	100.91
2004q4	-6.23	-5.58	96.99
2005q1	-6.3	-5.52	96.01
2005q2	-6.26	-5.57	97.92
2005q3	-5.83	-5.78	98.97
2005q4	-7.01	-6.12	99.49

Figure 2. Components of U.S. Real GDP

Note: Periods of U.S. trade balance deterioration are in blue; periods of adjustment are in yellow.

Data for Figure 2

Dates	Panel 1, Line 1:  4-Quarter Percent Change in U.S. Real GDP	Panel 1, Line 2:  4-Quarter Percent Change in U.S. Real Domestic Demand	Panel 1, Line 3:  4-Quarter Percentage Point Contribution of Real Net Exports to U.S. GDP Growth	Panel 2, Line 1:  4-Quarter Percent Change in U.S. Real Consumption	Panel 2, Line 2:  4-Quarter Percent Change in U.S. Real Nonresidential Investment	Panel 2, Line 3:  4-Quarter Percent Change in U.S. Real Residential Investment	Panel 3, Line 1:  4-Quarter Percent Change in U.S. Real Exports	Panel 3, Line 2:  4-Quarter Percent Change in U.S. Real Imports
1970q1	0.26	-0.11	0.37	2.5	2.62	-8.88	24.69	16.48
1970q2	0.16	-0.23	0.39	2.33	0.97	-14.02	6.34	-0.79
1970q3	0.43	-0.02	0.44	2.75	-1.21	-8.7	8.59	0.3
1970q4	-0.17	-0.34	0.17	1.66	-4.36	8.89	5.93	3
1971q1	2.77	2.58	0.19	3	-2.87	14.47	5.41	2.1
1971q2	3.15	3.54	-0.37	3.47	-0.95	35.02	0.77	7.69
1971q3	3.06	3.33	-0.26	3.39	-1.03	34.51	5.26	10.31
1971q4	4.47	4.81	-0.32	5.41	5.06	26.4	-4.45	1.24
1972q1	3.46	4.11	-0.63	4.8	7.54	28	5.28	17.45
1972q2	5.31	5.47	-0.17	5.8	7.8	18.54	2.42	5.33
1972q3	5.47	5.52	-0.06	6.58	9.01	13.24	4.31	5.19
1972q4	6.9	6.88	0	7.27	12.22	12.91	18.66	17.94
1973q1	7.7	7.28	0.41	7.78	13.73	9.4	15.16	7.64
1973q2	6.43	5.55	0.85	5.72	16.4	1.85	24.34	8.39
1973q3	4.86	3.99	0.85	4.49	16.55	-2.7	17.67	3.25
1973q4	4.16	2.95	1.19	1.81	11.67	-10.55	18.45	-0.45
1974q1	0.7	-0.72	1.39	-0.85	6.53	-19.79	11.76	-8.09
1974q2	-0.16	-1.06	0.87	-0.4	2.14	-19.19	11.8	-0.34
1974q3	-0.6	-0.97	0.35	-0.32	-0.7	-18.4	5.42	0.7
1974q4	-1.93	-2.28	0.33	-1.46	-4.22	-25.58	3.09	-1.06
1975q1	-2.26	-3.13	0.84	0.24	-10.01	-24.65	2.52	-7.83
1975q2	-1.82	-3.07	1.26	1.47	-12.16	-19.52	-5.09	-19.49
1975q3	0.81	-0.02	0.85	2.46	-10.3	-10.97	-1.37	-11.25
1975q4	2.54	1.94	0.61	5.04	-6.89	7.01	1.56	-5.57
1976q1	6.12	7.06	-0.88	6.22	1.04	25.71	0.14	11.52
1976q2	6.13	7.74	-1.5	5.45	4.98	26.6	4.2	26.49
1976q3	4.86	5.76	-0.85	5.06	6.27	16.42	9.06	21.55
1976q4	4.25	5.39	-1.09	5.34	7.38	25.75	4.27	19.22
1977q1	3.19	4.31	-1.12	4.51	9.54	17.53	3.32	17.51
1977q2	4.43	5.14	-0.72	4.15	11.37	27.32	5.04	13.66
1977q3	5.79	6.2	-0.43	4.05	11.31	29.03	2.86	7.68
1977q4	5.03	5.62	-0.61	4.24	12.86	12.94	-1.45	5.7
1978q1	4.11	4.56	-0.5	3.61	9.68	10.17	2.52	7.68
1978q2	6.13	5.89	0.17	5.25	15.61	3.61	10.24	7.04
1978q3	5.29	5.29	-0.05	4.71	17.22	5.38	10.6	9.98
1978q4	6.69	6.07	0.54	4	17.06	6.42	18.82	9.96
1979q1	6.55	5.46	0.99	3.95	18.52	3.41	16.18	2.74
1979q2	2.61	2.4	0.18	1.74	8.94	-3.17	5.49	2.98
1979q3	2.34	1.65	0.67	2.3	8.49	-5.63	8.09	0.1
1979q4	1.31	0.49	0.82	1.77	5.34	-8.88	10.47	0.86
1980q1	1.43	0.41	1.04	1.08	4.17	-13.83	13.48	1.27
1980q2	-0.71	-2.69	2.03	-1.14	-0.81	-28.44	15.3	-6.62
1980q3	-1.58	-3.82	2.27	-1.04	-3.08	-26.34	11.08	-12
1980q4	-0.05	-1.41	1.38	-0.01	-1.31	-15.97	3.91	-9.23
1981q1	1.65	0.75	0.9	0.58	-0.79	-10.64	2.95	-5.47
1981q2	2.94	2.99	-0.06	2.9	6.61	5.94	1.62	2.13
1981q3	4.36	5.28	-0.89	2.19	8.4	-3.87	-0.33	8.8
1981q4	1.18	1.72	-0.54	0.09	8.73	-21.4	0.7	6.2
1982q1	-2.46	-2.03	-0.42	0.32	4.43	-24.58	-5.4	-1.03
1982q2	-1.16	-0.91	-0.24	0.65	-1.26	-24.41	-5.38	-2.82
1982q3	-2.71	-1.74	-0.97	1.02	-6.85	-18.35	-7.61	2.85
1982q4	-1.4	-0.63	-0.76	3.64	-10.89	-2.37	-12.23	-3.94
1983q1	1.48	2.21	-0.71	3.97	-10.38	21.26	-6.8	1.14
1983q2	3.22	4.81	-1.58	5.67	-5.95	40.05	-7.05	10.73
1983q3	5.65	6.99	-1.39	6.72	1.72	54.42	-1.27	14.08
1983q4	7.72	9.34	-1.68	6.47	10.52	49.95	5.55	24.57
1984q1	8.49	10.64	-2.22	6.35	16.28	31.68	6.04	31.56
1984q2	7.92	9.59	-1.8	5.77	20.62	19.91	8.34	27.28
1984q3	6.86	8	-1.28	4.72	19.24	8.05	9.09	21.14
1984q4	5.58	6.55	-1.09	4.46	14.73	3.78	9.11	18.87
1985q1	4.51	4.64	-0.22	5.3	12.37	0.66	6.96	7.61
1985q2	3.62	4.05	-0.54	4.76	8.56	-0.38	3.99	8.36
1985q3	4.23	4.55	-0.44	5.93	3.47	1.87	0.25	4.59
1985q4	4.17	4.52	-0.48	4.79	2.75	4.18	1.19	5.55
1986q1	4.2	4.55	-0.45	3.92	0.21	8.97	4.37	7.88
1986q2	3.73	3.92	-0.29	4.07	-3.69	14.11	5.87	7.19
1986q3	3.11	3.42	-0.41	3.91	-3.62	14.42	9.9	11.26
1986q4	2.84	2.8	-0.05	4.33	-4.29	11.55	10.68	7.95
1987q1	2.54	2.66	-0.21	3.51	-5.61	6.7	7.3	7.3
1987q2	3.26	2.98	0.18	3.83	-0.87	1.53	10.46	5.52
1987q3	3.21	2.7	0.41	3.2	3.85	-0.31	12.64	4.66
1987q4	4.48	4.08	0.28	2.8	2.58	0.36	12.6	6.21
1988q1	4.31	3.49	0.7	4.47	6.26	-1.55	18.76	6.43
1988q2	4.48	3.34	1.04	3.8	6.33	-1.2	17.29	2.62
1988q3	4.1	3.18	0.82	3.5	3.55	-0.84	14.54	3.01
1988q4	3.66	2.87	0.7	4.46	4.87	-0.46	13.85	3.73
1989q1	4.2	3.61	0.5	3.13	5.84	1.08	10.98	3.89
1989q2	3.57	3.13	0.38	2.88	4.76	-2.69	12.7	6.69
1989q3	3.75	3.13	0.57	3	7.22	-3.81	11.93	4.38
1989q4	2.66	2	0.62	2.27	4.54	-6.65	10.38	2.66
1990q1	2.8	2.27	0.49	2.72	4.17	-5.08	11.87	5.22
1990q2	2.4	2.1	0.26	2.58	0.93	-5.94	8.55	4.82
1990q3	1.68	1.4	0.26	2.03	-1.27	-10.31	8.21	4.55
1990q4	0.65	-0.04	0.7	0.84	-1.71	-13.46	7.54	-0.07
1991q1	-1	-1.77	0.8	-0.4	-5.49	-19.43	3.61	-4.25
1991q2	-0.61	-1.44	0.84	0.14	-4.75	-14.23	6.06	-2.61
1991q3	-0.14	-0.85	0.71	0.16	-6.25	-5.29	7.7	0.11
1991q4	1.09	0.7	0.38	0.79	-4.93	2.46	9.08	4.61
1992q1	2.66	2.44	0.21	2.89	-2.85	14.5	10.43	7.75
1992q2	2.98	3.08	-0.11	2.59	1.99	16.14	6.57	7.4
1992q3	3.49	3.49	-0.01	3.16	5.06	11.77	6.32	6.12
1992q4	4.15	4.36	-0.24	4.45	8.8	13.09	4.5	6.59
1993q1	3.2	3.74	-0.54	3.12	9.95	8.09	2.89	8.09
1993q2	2.73	3.19	-0.47	3.44	8.56	5.33	4.05	8.36
1993q3	2.26	2.95	-0.7	3.54	7.58	8.72	1.59	8.23
1993q4	2.51	3.13	-0.64	3.27	8.8	10.44	4.37	10.26
1994q1	3.42	3.97	-0.57	4.04	9.23	12.11	5.14	10.23
1994q2	4.24	4.74	-0.54	3.87	8.53	14.54	7.36	11.78
1994q3	4.29	4.56	-0.32	3.48	9.36	9.55	11.65	13.46
1994q4	4.11	4.37	-0.3	3.59	9.6	2.96	10.54	12.21
1995q1	3.35	3.51	-0.19	2.62	12.95	-1.28	11.55	12.05
1995q2	2.2	2.26	-0.09	2.73	11.5	-7.55	9.49	9.08
1995q3	2.46	2.13	0.3	2.89	10.19	-3.66	10.2	6.46
1995q4	2.02	1.59	0.4	2.56	7.65	-0.19	9.4	4.95
1996q1	2.45	2.18	0.24	3.3	5.98	4.76	8.78	5.75
1996q2	3.94	3.81	0.07	3.57	8.28	12.8	9.1	7.4
1996q3	3.97	4.6	-0.67	3.33	11.12	9.1	5.38	10.56
1996q4	4.42	4.58	-0.18	3.48	11.85	5.57	10.28	11.01
1997q1	4.49	4.75	-0.3	3.69	11.93	3.23	10.93	12.44
1997q2	4.37	4.49	-0.16	3.05	11.5	0.29	13.43	13.54
1997q3	4.79	4.78	-0.06	4.08	13.43	1.02	15.15	13.95
1997q4	4.34	5.09	-0.8	4.29	11.37	3.11	8.29	14.3
1998q1	4.69	5.53	-0.91	4.31	12.27	4.88	6.82	13.71
1998q2	3.8	5.08	-1.32	5.47	12.93	6.44	1.62	12.3
1998q3	3.71	4.99	-1.33	5.02	8.46	8.85	-1.16	9.68
1998q4	4.51	5.52	-1.07	5.35	10.9	10.34	2.65	11.02
1999q1	4.24	5.26	-1.08	5.24	9.22	9.03	1.32	9.82
1999q2	4.42	5.29	-0.97	5.21	9.18	7.01	3.58	10.7
1999q3	4.43	5.27	-0.95	5.05	10.75	4.79	6.77	13.12
1999q4	4.7	5.54	-0.96	4.93	7.69	3.59	5.6	12.13
2000q1	4.08	4.87	-0.92	5.55	9.39	3.74	8.24	13.63
2000q2	4.85	5.5	-0.81	4.58	9.87	1.94	10.16	14
2000q3	3.52	4.23	-0.85	4.5	7.86	-0.74	10.08	13.85
2000q4	2.24	3	-0.86	4.09	7.83	-1.85	6.53	11.17
2001q1	1.86	2.26	-0.49	2.88	3.16	-2.31	3.42	5.95
2001q2	0.59	0.67	-0.11	2.49	-3.91	-0.07	-2.87	-1.41
2001q3	0.35	0.37	-0.04	1.96	-6.09	2.48	-9.94	-7.16
2001q4	0.23	0.4	-0.19	2.82	-9.59	1.42	-11.86	-7.59
2002q1	1.03	1.41	-0.44	2.76	-11.68	3.39	-9.52	-4.1
2002q2	1.27	1.92	-0.71	3.1	-9.82	4.32	-4.02	2.15
2002q3	2.22	2.83	-0.7	3.23	-8.66	4.37	1.64	6.42
2002q4	1.87	2.7	-0.9	1.86	-6.54	7.02	3.76	9.7
2003q1	1.49	2.02	-0.61	2.03	-3.92	5.47	1.06	5.33
2003q2	1.81	2.35	-0.64	2.34	0.11	5.7	-1.86	3.32
2003q3	3.05	3.3	-0.38	3.22	2.87	10.59	0.1	2.85
2003q4	3.68	3.63	-0.12	3.44	4.93	11.67	5.77	4.8
2004q1	4.35	4.51	-0.38	4.1	6.08	11.38	9.12	8.79
2004q2	4.49	4.87	-0.6	3.93	5.23	13.65	11.24	11.75
2004q3	3.41	3.99	-0.77	3.46	5.47	8.96	9.56	11.93
2004q4	3.4	4.06	-0.85	3.96	6.85	6.07	7.01	10.57
2005q1	3.29	3.81	-0.7	3.47	7.96	8.08	6.37	8.99
2005q2	3.09	3.04	-0.11	3.79	7.44	8.12	7.17	5.39
2005q3	3.36	3.26	-0.09	3.79	6.35	9.12	6.77	4.9
2005q4	3.15	3.12	-0.15	2.9	5.57	9.03	6.7	5.18

Figure 3. Components of U.S. Nominal GDP

Note: Periods of U.S. trade balance deterioration are in blue; periods of adjustment are in yellow.

Data for Figure 3

Dates	Panel1, Line 1: U.S. Nominal Consumption as Share of Nominal GDP	Panel 2, Line 1: U.S. Nominal Nonresidential Investment as Share of Nominal GDP	Panel 2, Line 2: U.S. Nominal Residential Investment as Share of Nominal GDP	Panel 3, Line 1: U.S. Nominal Exports as Share of Nominal GDP	Panel 3, Line 2: U.S. Nominal Imports as Share of Nominal GDP
1970q1	62.26	10.63	4	5.59	5.26
1970q2	62.26	10.59	3.81	5.86	5.34
1970q3	62.36	10.53	3.84	5.74	5.37
1970q4	62.87	10.25	4.27	5.8	5.5
1971q1	62.01	10.05	4.43	5.74	5.34
1971q2	62.11	10.13	4.88	5.64	5.66
1971q3	62.1	10.08	5.12	5.74	5.75
1971q4	62.84	10.25	5.34	5.23	5.38
1972q1	62.26	10.36	5.59	5.77	6.06
1972q2	61.97	10.3	5.57	5.48	5.82
1972q3	62.28	10.33	5.57	5.72	5.93
1972q4	62.4	10.61	5.77	5.92	6.15
1973q1	61.98	10.79	5.83	6.29	6.39
1973q2	61.47	11.09	5.52	6.7	6.52
1973q3	61.95	11.28	5.39	7.01	6.55
1973q4	61.22	11.16	5.08	7.51	6.89
1974q1	61.86	11.24	4.77	8.07	7.62
1974q2	62.19	11.27	4.54	8.53	8.71
1974q3	62.91	11.39	4.45	8.36	8.82
1974q4	61.95	11.29	3.87	8.79	8.79
1975q1	62.97	10.89	3.67	9	7.95
1975q2	63.37	10.64	3.73	8.52	7.18
1975q3	63.21	10.5	3.89	8.06	7.34
1975q4	63	10.42	4.01	8.31	7.51
1976q1	62.85	10.38	4.3	8.1	7.84
1976q2	62.81	10.44	4.47	8.12	8.15
1976q3	63.27	10.61	4.39	8.26	8.48
1976q4	63.49	10.71	4.91	8.28	8.63
1977q1	63.55	11.04	5.03	8.01	9.1
1977q2	62.83	11.15	5.57	8.07	9.12
1977q3	62.5	11.25	5.57	7.85	8.85
1977q4	62.98	11.58	5.54	7.47	8.87
1978q1	63.25	11.64	5.63	7.66	9.46
1978q2	62.29	12.13	5.74	8.18	9.18
1978q3	62.01	12.44	5.81	8.19	9.21
1978q4	61.56	12.63	5.75	8.5	9.18
1979q1	61.83	12.93	5.62	8.59	9.33
1979q2	61.89	12.86	5.56	8.74	9.62
1979q3	62.24	13.16	5.52	9.01	9.89
1979q4	62.48	13.14	5.31	9.53	10.54
1980q1	62.71	13.26	4.92	9.85	11.17
1980q2	62.7	12.86	4.09	10.16	10.72
1980q3	63.52	12.96	4.17	10.22	10.02
1980q4	63.02	12.9	4.48	10.03	10.26
1981q1	62.03	12.88	4.3	10.01	10.47
1981q2	62.4	13.31	4.18	10	10.43
1981q3	61.82	13.48	3.79	9.51	9.75
1981q4	61.94	14.01	3.43	9.53	9.99
1982q1	63.33	13.91	3.29	9.2	9.71
1982q2	63.05	13.32	3.17	9.09	9.22
1982q3	63.87	12.8	3.16	8.54	9.44
1982q4	65	12.41	3.36	8	8.9
1983q1	64.86	11.84	3.88	8	8.73
1983q2	64.81	11.56	4.22	7.82	9.13
1983q3	64.88	11.69	4.53	7.75	9.57
1983q4	64.53	12.08	4.63	7.77	9.7
1984q1	63.72	12.08	4.64	7.69	10.18
1984q2	63.61	12.39	4.64	7.73	10.4
1984q3	63.47	12.59	4.56	7.69	10.3
1984q4	63.78	12.72	4.53	7.65	10.32
1985q1	64.22	12.63	4.45	7.41	9.64
1985q2	64.38	12.65	4.43	7.25	10.02
1985q3	64.74	12.25	4.43	6.94	9.72
1985q4	64.48	12.35	4.52	7.03	10.15
1986q1	64.54	12.02	4.7	7.12	10.03
1986q2	64.67	11.69	4.97	7.1	10.04
1986q3	65.28	11.43	5.03	7.13	10.23
1986q4	65.4	11.46	5.02	7.37	10.32
1987q1	65.2	10.99	4.99	7.3	10.36
1987q2	65.57	11.05	4.97	7.57	10.72
1987q3	65.89	11.21	4.91	7.8	10.86
1987q4	65	10.99	4.86	8.02	11.01
1988q1	65.77	11.03	4.73	8.45	10.97
1988q2	65.51	11.11	4.71	8.67	10.8
1988q3	65.75	11.03	4.66	8.8	10.75
1988q4	65.8	11.02	4.65	8.87	10.94
1989q1	65.42	11.02	4.56	9.02	10.85
1989q2	65.53	11.04	4.4	9.27	10.95
1989q3	65.64	11.24	4.31	9.19	10.62
1989q4	65.86	11.03	4.21	9.23	10.72
1990q1	65.82	10.97	4.18	9.4	10.87
1990q2	65.82	10.66	3.98	9.42	10.65
1990q3	66.32	10.7	3.74	9.5	10.84
1990q4	66.71	10.58	3.54	9.74	11.09
1991q1	66.48	10.33	3.32	9.76	10.46
1991q2	66.57	10.08	3.37	9.93	10.34
1991q3	66.53	9.84	3.48	9.98	10.36
1991q4	66.34	9.66	3.51	10.14	10.49
1992q1	66.86	9.45	3.62	10.12	10.35
1992q2	66.66	9.65	3.74	9.98	10.52
1992q3	66.83	9.7	3.72	10.06	10.68
1992q4	66.95	9.82	3.83	9.93	10.63
1993q1	66.93	9.82	3.86	9.86	10.62
1993q2	67.25	9.99	3.9	9.9	10.88
1993q3	67.58	10	4.03	9.76	10.83
1993q4	67.28	10.23	4.18	9.89	10.97
1994q1	67.2	10.2	4.24	9.86	10.98
1994q2	66.89	10.25	4.33	10.05	11.39
1994q3	67.16	10.33	4.28	10.36	11.76
1994q4	67.03	10.59	4.22	10.49	11.91
1995q1	66.85	10.93	4.13	10.7	12.1
1995q2	67.41	10.98	4	10.87	12.43
1995q3	67.42	10.91	4.09	11.18	12.23
1995q4	67.35	10.98	4.15	11.16	12.09
1996q1	67.45	11.04	4.22	11.12	12.23
1996q2	67.28	11.07	4.33	11.05	12.3
1996q3	67.2	11.3	4.32	10.94	12.43
1996q4	67.07	11.38	4.22	11.32	12.41
1997q1	67.15	11.46	4.2	11.33	12.6
1997q2	66.48	11.51	4.2	11.58	12.65
1997q3	66.69	11.88	4.19	11.64	12.83
1997q4	66.89	11.79	4.22	11.46	12.82
1998q1	66.77	11.93	4.26	11.24	12.75
1998q2	67.39	12.12	4.37	10.97	12.84
1998q3	67.4	12	4.47	10.68	12.66
1998q4	67.3	12.09	4.53	10.84	12.78
1999q1	67.3	12.14	4.56	10.59	12.88
1999q2	67.99	12.32	4.6	10.6	13.35
1999q3	68.04	12.36	4.59	10.74	13.8
1999q4	67.79	12.11	4.58	10.84	13.96
2000q1	68.68	12.4	4.66	10.96	14.55
2000q2	68.09	12.59	4.57	11.12	14.85
2000q3	68.79	12.65	4.49	11.38	15.44
2000q4	69.04	12.56	4.49	11.21	15.27
2001q1	69.41	12.27	4.55	10.98	14.9
2001q2	69.28	11.72	4.62	10.47	14.04
2001q3	69.64	11.52	4.71	9.9	13.47
2001q4	70.29	10.98	4.66	9.45	12.89
2002q1	69.97	10.5	4.71	9.45	13.06
2002q2	70.23	10.24	4.81	9.67	13.66
2002q3	70.26	10.08	4.8	9.72	13.84
2002q4	70.37	9.92	4.93	9.6	14.08
2003q1	70.51	9.75	5.04	9.46	14.12
2003q2	70.43	9.85	5.11	9.33	13.96
2003q3	70.2	9.86	5.28	9.39	13.85
2003q4	70.01	9.85	5.45	9.8	14.27
2004q1	70.14	9.73	5.53	9.93	14.68
2004q2	69.95	9.77	5.8	10.01	15.22
2004q3	70.05	9.92	5.87	10.05	15.39
2004q4	70.3	10.04	5.86	10.24	15.86
2005q1	69.99	10.1	5.95	10.3	15.86
2005q2	70.26	10.14	6.2	10.48	16.04
2005q3	70.36	10.15	6.29	10.44	16.23
2005q4	70.13	10.25	6.3	10.62	16.71

Figure 4. Prices and Interest Rates

Note: Periods of U.S. trade balance deterioration are in blue; periods of adjustment are in yellow.
*Real rate is defined as the nominal rate minus the 4-quarter percent change in the CPI.

Data for Figure 4

Dates	Panel 1, Line 1: 4-Quarter Percent Change in U.S. CPI	Panel 2, Line 1: Ratio of U.S. Nontraded Prices to Traded Prices	Panel 2, Line 2: Ratio of U.S. Services and Structures Prices to Goods Prices	Panel 3, Line 1: Nominal 10-Year Treasury Yield	Panel 3, Line 2: Real 10-Year Treasury Yield
1970q1	6.23	0.51	0.72	7.37	1.14
1970q2	6.04	0.51	0.72	7.71	1.67
1970q3	5.69	0.51	0.73	7.46	1.77
1970q4	5.6	0.52	0.73	6.85	1.25
1971q1	4.81	0.52	0.74	6.02	1.2
1971q2	4.31	0.53	0.74	6.25	1.93
1971q3	4.27	0.53	0.75	6.48	2.21
1971q4	3.54	0.54	0.75	5.89	2.35
1972q1	3.51	0.54	0.75	6.03	2.53
1972q2	3.23	0.55	0.76	6.14	2.92
1972q3	3.03	0.55	0.76	6.29	3.26
1972q4	3.33	0.55	0.76	6.37	3.04
1973q1	4.11	0.55	0.76	6.6	2.49
1973q2	5.61	0.55	0.76	6.81	1.2
1973q3	6.84	0.55	0.76	7.21	0.37
1973q4	8.42	0.55	0.76	6.75	-1.67
1974q1	9.91	0.55	0.76	7.05	-2.86
1974q2	10.55	0.56	0.75	7.54	-3
1974q3	11.46	0.56	0.75	7.96	-3.49
1974q4	12.05	0.55	0.75	7.67	-4.38
1975q1	11.13	0.55	0.75	7.54	-3.59
1975q2	9.54	0.56	0.75	8.05	-1.49
1975q3	8.68	0.55	0.75	8.3	-0.38
1975q4	7.38	0.56	0.75	8.06	0.68
1976q1	6.34	0.56	0.75	7.75	1.41
1976q2	6.02	0.57	0.76	7.77	1.76
1976q3	5.59	0.57	0.76	7.73	2.14
1976q4	5.19	0.57	0.76	7.19	2
1977q1	5.9	0.57	0.76	7.35	1.45
1977q2	6.8	0.58	0.76	7.37	0.57
1977q3	6.57	0.59	0.76	7.36	0.78
1977q4	6.59	0.59	0.76	7.6	1
1978q1	6.48	0.59	0.76	8.01	1.53
1978q2	7.03	0.59	0.76	8.32	1.29
1978q3	8.02	0.59	0.76	8.49	0.47
1978q4	8.93	0.59	0.76	8.82	-0.11
1979q1	9.78	0.59	0.76	9.11	-0.68
1979q2	10.75	0.59	0.76	9.11	-1.64
1979q3	11.72	0.6	0.76	9.1	-2.62
1979q4	12.64	0.61	0.76	10.45	-2.2
1980q1	14.21	0.61	0.77	11.99	-2.22
1980q2	14.43	0.62	0.77	10.48	-3.95
1980q3	12.94	0.62	0.77	10.95	-1.98
1980q4	12.54	0.62	0.77	12.42	-0.12
1981q1	11.26	0.63	0.77	12.96	1.7
1981q2	9.87	0.63	0.77	13.75	3.88
1981q3	10.85	0.63	0.78	14.85	3.99
1981q4	9.58	0.64	0.78	14.09	4.5
1982q1	7.58	0.65	0.78	14.29	6.71
1982q2	6.91	0.65	0.79	13.93	7.02
1982q3	5.82	0.66	0.79	13.12	7.3
1982q4	4.44	0.67	0.8	10.67	6.22
1983q1	3.59	0.67	0.8	10.56	6.97
1983q2	3.3	0.67	0.8	10.54	7.24
1983q3	2.53	0.67	0.8	11.63	9.1
1983q4	3.23	0.67	0.81	11.69	8.45
1984q1	4.63	0.68	0.81	11.94	7.32
1984q2	4.4	0.69	0.82	13.2	8.8
1984q3	4.3	0.69	0.82	12.87	8.57
1984q4	4.15	0.7	0.83	11.74	7.59
1985q1	3.64	0.7	0.84	11.58	7.94
1985q2	3.61	0.7	0.85	10.81	7.21
1985q3	3.35	0.71	0.85	10.34	6.98
1985q4	3.51	0.72	0.85	9.76	6.25
1986q1	3.11	0.72	0.85	8.56	5.45
1986q2	1.68	0.73	0.85	7.6	5.92
1986q3	1.67	0.73	0.86	7.31	5.64
1986q4	1.35	0.74	0.87	7.26	5.92
1987q1	2.04	0.74	0.88	7.19	5.16
1987q2	3.7	0.74	0.89	8.34	4.64
1987q3	4.16	0.75	0.9	8.88	4.71
1987q4	4.41	0.75	0.9	9.12	4.72
1988q1	3.97	0.76	0.9	8.42	4.45
1988q2	3.98	0.76	0.9	8.91	4.93
1988q3	4.14	0.76	0.9	9.1	4.96
1988q4	4.31	0.76	0.9	8.96	4.65
1989q1	4.67	0.77	0.9	9.21	4.53
1989q2	5.16	0.77	0.9	8.77	3.61
1989q3	4.71	0.77	0.89	8.11	3.4
1989q4	4.63	0.77	0.89	7.91	3.28
1990q1	5.23	0.77	0.89	8.42	3.19
1990q2	4.58	0.78	0.89	8.68	4.09
1990q3	5.56	0.78	0.9	8.7	3.14
1990q4	6.28	0.79	0.9	8.4	2.12
1991q1	5.26	0.79	0.9	8.02	2.76
1991q2	4.85	0.78	0.91	8.13	3.28
1991q3	3.85	0.79	0.91	7.94	4.09
1991q4	2.97	0.79	0.9	7.35	4.38
1992q1	2.89	0.8	0.9	7.3	4.41
1992q2	3.07	0.81	0.9	7.38	4.3
1992q3	3.07	0.81	0.9	6.62	3.54
1992q4	3.12	0.82	0.9	6.74	3.62
1993q1	3.17	0.82	0.9	6.28	3.11
1993q2	3.12	0.83	0.91	5.99	2.87
1993q3	2.82	0.83	0.91	5.62	2.8
1993q4	2.77	0.83	0.92	5.61	2.84
1994q1	2.54	0.84	0.92	6.07	3.53
1994q2	2.38	0.84	0.93	7.08	4.7
1994q3	2.86	0.85	0.93	7.33	4.48
1994q4	2.6	0.85	0.93	7.84	5.23
1995q1	2.84	0.86	0.93	7.48	4.64
1995q2	3.1	0.87	0.93	6.62	3.52
1995q3	2.66	0.87	0.93	6.32	3.66
1995q4	2.63	0.88	0.93	5.89	3.27
1996q1	2.78	0.88	0.92	5.91	3.13
1996q2	2.83	0.88	0.92	6.72	3.89
1996q3	2.9	0.89	0.92	6.78	3.88
1996q4	3.23	0.9	0.92	6.34	3.11
1997q1	2.94	0.9	0.92	6.56	3.62
1997q2	2.3	0.91	0.92	6.7	4.39
1997q3	2.23	0.91	0.93	6.24	4.02
1997q4	1.89	0.92	0.93	5.91	4.02
1998q1	1.48	0.93	0.94	5.59	4.1
1998q2	1.58	0.94	0.94	5.6	4.01
1998q3	1.6	0.94	0.95	5.2	3.61
1998q4	1.53	0.95	0.96	4.67	3.14
1999q1	1.69	0.95	0.97	4.98	3.3
1999q2	2.11	0.96	0.97	5.54	3.43
1999q3	2.35	0.97	0.98	5.88	3.54
1999q4	2.62	0.98	0.99	6.14	3.52
2000q1	3.26	0.99	0.99	6.48	3.22
2000q2	3.29	1	1	6.18	2.88
2000q3	3.47	1	1	5.89	2.42
2000q4	3.44	1.01	1.01	5.57	2.12
2001q1	3.41	1.02	1.01	5.05	1.64
2001q2	3.32	1.02	1.02	5.27	1.95
2001q3	2.68	1.03	1.03	4.98	2.3
2001q4	1.87	1.03	1.03	4.77	2.9
2002q1	1.25	1.04	1.04	5.08	3.83
2002q2	1.3	1.05	1.05	5.1	3.8
2002q3	1.58	1.06	1.06	4.26	2.68
2002q4	2.23	1.07	1.06	4.01	1.77
2003q1	2.88	1.09	1.06	3.92	1.04
2003q2	2.15	1.1	1.06	3.62	1.47
2003q3	2.22	1.11	1.07	4.23	2.02
2003q4	1.89	1.12	1.07	4.29	2.39
2004q1	1.82	1.13	1.08	4.02	2.2
2004q2	2.8	1.13	1.08	4.6	1.8
2004q3	2.71	1.15	1.09	4.3	1.59
2004q4	3.34	1.16	1.1	4.17	0.84
2005q1	3.04	1.17	1.1	4.3	1.26
2005q2	2.95	1.18	1.1	4.16	1.21
2005q3	3.8	1.2	1.1	4.21	0.41
2005q4	3.73	1.22	1.09	4.49	0.76

Figure 5. Foreign External Balances*

Note: Periods of U.S. trade balance eterioration are in blue; periods of adjustment are in yellow.
*Foreign aggregates are constructed as GDP-weighted averages of Australia, Austria, Belgium, Canada, Denmark, Finland, France, Germany, Greece, Ireland, Italy, Japan, Netherlands, Norway, New Zealand, Portugal, Sweden, Spain, Switzerland, and the United Kingdom.

Data for Figure 5

Dates	Panel 1, Line 1: Trade Balance as Share of Nominal GDP	Panel 1, Line 2: Current Account Balance as Share of Nominal GDP	Panel 2, Line 1: Multilateral Real Exchange Rate Index
1970q1	0.7345287	0.9251762	97.96098
1970q2	0.3986413	0.643065	98.11153
1970q3	0.5305574	0.2004895	98.34296
1970q4	0.751668	0.6831108	98.25645
1971q1	0.8481681	0.8375135	98.60307
1971q2	1.044374	0.8167231	98.74982
1971q3	1.374844	1.370004	98.74915
1971q4	0.9442737	0.942073	98.74314
1972q1	1.05928	0.8161592	98.73896
1972q2	1.275251	1.037644	99.12555
1972q3	0.9572813	0.7342547	99.12138
1972q4	1.265208	0.8409593	99.03554
1973q1	0.9062433	0.6970767	99.47479
1973q2	0.6105474	0.5241892	100.1824
1973q3	0.191255	-0.0121398	101.5015
1973q4	-0.1777113	-0.1429387	101.6022
1974q1	-0.9925855	-0.9572389	101.3276
1974q2	-1.431044	-1.592608	101.0959
1974q3	-0.9891299	-1.203454	101.1307
1974q4	-0.4680047	-0.6169781	100.3214
1975q1	0.0275687	-0.4036511	101.3155
1975q2	0.2686255	-0.289354	101.9156
1975q3	-0.2130627	-0.6555875	101.3123
1975q4	-0.3239981	-0.6664645	101.6335
1976q1	-0.1473549	-0.3732462	101.6797
1976q2	-0.3391595	-0.8021771	102.0358
1976q3	-0.3424317	-0.7050852	101.7244
1976q4	-0.4968322	-0.790175	101.9104
1977q1	-0.1930357	-0.5078651	100.6101
1977q2	0.0247308	-0.5768743	100.5672
1977q3	0.3912754	-0.2199516	99.95228
1977q4	0.9202025	0.4266805	99.78859
1978q1	1.202909	0.6185917	99.55778
1978q2	1.255512	0.7355767	100.2087
1978q3	1.168506	0.7351419	101.168
1978q4	0.6955953	0.5220909	101.1749
1979q1	0.3346029	0.2015473	100.4278
1979q2	-0.05825	-0.2423192	100.1634
1979q3	-0.3378477	-0.8689775	100.3254
1979q4	-0.7651607	-1.39714	100.5586
1980q1	-0.9388017	-1.44735	100.5966
1980q2	-1.391192	-1.823489	100.2128
1980q3	-0.9378158	-1.35967	100.5855
1980q4	-0.5946723	-1.083814	99.84296
1981q1	-0.3052255	-0.9449087	98.84025
1981q2	-0.1066394	-0.8626195	98.006
1981q3	0.0259063	-0.9918813	97.02126
1981q4	0.0527873	-0.7333586	97.67706
1982q1	0.1523677	-0.4341816	97.20695
1982q2	0.2005776	-0.6275088	97.05764
1982q3	0.1732693	-0.4174353	96.20099
1982q4	0.354388	-0.2362083	96.13933
1983q1	0.7748852	0.0561742	96.07671
1983q2	1.020168	0.3466763	95.70145
1983q3	1.12543	0.4405686	95.53429
1983q4	0.9851358	0.2531413	96.15031
1984q1	1.335591	0.7533929	95.50078
1984q2	1.294339	0.5340008	95.18951
1984q3	1.376534	0.6382564	93.97698
1984q4	1.71643	1.217648	94.11153
1985q1	1.308416	0.6642185	91.92475
1985q2	1.872468	1.240401	92.30178
1985q3	1.78207	1.142346	93.90299
1985q4	2.011873	1.445754	95.61514
1986q1	1.844459	1.450316	97.29332
1986q2	2.073871	1.663357	99.11726
1986q3	2.268733	1.834629	100.9063
1986q4	2.207872	1.715585	100.8835
1987q1	1.984025	1.5857	101.2932
1987q2	1.583254	1.260677	102.8143
1987q3	1.482293	1.068615	102.0164
1987q4	1.222211	0.6570034	103.8191
1988q1	1.137177	0.7029295	103.5562
1988q2	1.078536	0.9202702	104.3143
1988q3	0.9451265	0.5788035	103.074
1988q4	1.047069	0.6619157	105.2332
1989q1	0.8283177	0.6408297	102.3087
1989q2	0.503073	0.2076081	100.9826
1989q3	0.5301463	0.1239234	100.4145
1989q4	0.3006237	0.0429453	100.8093
1990q1	0.5303796	0.0366028	101.2056
1990q2	0.5026362	-0.1112887	101.2069
1990q3	1.022226	0.0552875	102.2706
1990q4	0.7968722	-0.4079719	103.6762
1991q1	0.2661599	-0.590567	102.8351
1991q2	0.2075536	-0.297335	102.1163
1991q3	0.3225412	-0.2094824	102.0594
1991q4	0.5384893	0.0754067	103.3505
1992q1	0.5825884	-0.2250278	102.8621
1992q2	0.4671693	-0.0964158	102.6118
1992q3	0.7601125	0.0306784	103.6097
1992q4	0.7308769	0.4019281	101.847
1993q1	1.306086	0.7033807	101.1416
1993q2	1.372753	0.782846	103.2334
1993q3	1.505224	1.082206	103.626
1993q4	1.702034	1.099985	102.0387
1994q1	1.690026	1.182991	103.4194
1994q2	1.60838	0.9266155	104.4981
1994q3	1.485273	0.7977604	105.2694
1994q4	1.441067	0.7121252	104.9341
1995q1	1.74422	1.242301	105.7344
1995q2	1.568181	0.9395044	109.8853
1995q3	1.487627	0.8461778	105.5044
1995q4	1.58981	0.8718836	103.1989
1996q1	1.535249	1.047206	101.6082
1996q2	1.517003	0.7964131	100.8225
1996q3	1.655316	1.099902	100.5362
1996q4	1.681733	1.096186	99.68931
1997q1	1.64913	1.129083	97.3969
1997q2	1.950552	1.493717	97.60912
1997q3	1.965128	1.484177	97.86161
1997q4	2.110638	1.682279	98.74153
1998q1	1.715697	1.114028	99.74646
1998q2	1.864769	1.420211	98.10557
1998q3	1.786917	1.394717	97.90609
1998q4	1.572017	1.043801	100.532
1999q1	1.386475	0.755285	100.5792
1999q2	1.429511	1.083295	99.38945
1999q3	1.387504	0.8570431	100.523
1999q4	1.375962	0.656108	102.4572
2000q1	1.339368	0.9322674	100.8225
2000q2	1.364374	0.8211437	100.4545
2000q3	1.252276	0.5697715	99.7756
2000q4	1.265975	0.6289054	98.99839
2001q1	1.377118	0.9100267	97.37389
2001q2	1.221911	0.5511259	96.29791
2001q3	1.193323	0.9388729	96.65643
2001q4	1.786223	1.169952	96.30154
2002q1	1.906232	1.395748	94.53258
2002q2	1.943098	1.10674	95.99431
2002q3	1.967693	1.424571	97.92998
2002q4	1.878186	1.076751	97.98336
2003q1	1.490752	1.031691	99.28227
2003q2	1.617038	1.20137	100.3302
2003q3	1.941767	1.497122	100.3855
2003q4	1.871998	1.540743	102.6799
2004q1	2.019307	1.613898	103.5538
2004q2	1.951531	1.851152	102.24
2004q3	1.567763	1.299497	102.4088
2004q4	1.421827	1.327618	103.9023
2005q1	1.449114	0.9996589	103.3826
2005q2	1.32435	1.233837	102.4348
2005q3	1.108644	0.773488	101.5362
2005q4	1.270317	0.8232111	100.6982

Figure 6. Components of Foreign Real GDP*

Note: Periods of U.S. trade balance eterioration are in blue; periods of adjustment are in yellow.
*Foreign aggregates are constructed as GDP-weighted averages of Australia, Austria, Belgium, Canada, Denmark, Finland, France, Germany, Greece, Ireland, Italy, Japan, Netherlands, Norway, New Zealand, Portugal, Sweden, Spain, Switzerland, and the United Kingdom.

Data for Figure 6

<

Dates	Panel 1, Line 1: 4-Quarter Percent Change in Foreign Real GDP	Panel 1, Line 2: 4-Quarter Percent Change in Foreign Real Domestic Demand	Panel 1, Line 3: 4-Quarter Percentage Point Contribution of Real Net Exports to Foreign GDP Growth	Panel 2, Line 1: 4-Quarter Percent Change in Foreign Real Consumption	Panel 2, Line 2: 4-Quarter Percent Change in Foreign Real Investment	Panel 2, Line 3: 4-Quarter Percent Change in Foreign Real Residential Investment	Panel 3, Line 1: 4-Quarter Percent Change in Foreign Real Exports	Panel 3, Line 2: 4-Quarter Percent Change in Foreign Real Imports
1970q1	6.88	8.73	0.08	5.69	25.61	14.66	13.51	14.67
1970q2	6.31	8.32	-0.46	5.13	23.65	13.94	11.58	17.32
1970q3	5.7	7.8	-0.74	5.76	21.37	9.28	9.22	16.43
1970q4	4.03	6.49	-0.32	4.91	16.73	10.2	10.85	13.36
1971q1	3.9	3.97	-0.09	4.36	5.46	7.6	9.91	10.58
1971q2	3.38	3.24	0.23	5.16	-1.33	5.85	9.77	6.92
1971q3	3.69	3.17	0.52	4.6	-0.67	5.85	11.29	5.05
1971q4	3.56	3.58	0.08	4.74	1.07	6.53	7.01	4.41
1972q1	4.99	5.2	-0.03	6.07	3.08	9.25	7.93	7.83
1972q2	5.09
