Board of Governors of the Federal Reserve System

Industrial Production and Capacity Utilization - G.17

Current Release (250 KB PDF) (ASCII)

Release Date: July 15, 2011

Industrial production increased 0.2 percent in June after having edged down 0.1 percent in May. For the second quarter as a whole, total industrial production increased at an annual rate of 0.8 percent. Manufacturing output was unchanged in June. In the second quarter, supply chain disruptions following the earthquake in Japan curtailed the production of motor vehicles and parts and restrained output in related industries; the production index for overall manufacturing was little changed for the quarter. The output of mines rose 0.5 percent in June, while the output of utilities climbed 0.9 percent. At 93.1 percent of its 2007 average, total industrial production in June was 3.4 percent above its year-earlier level. The capacity utilization rate for total industry remained unchanged at 76.7 percent in June, a rate 2.2 percentage points above the rate from a year earlier but 3.7 percentage points below its average from 1972 to 2010.

Industrial Production and Capacity Utilization: Summary

Seasonally adjusted
Industrial production 2007=100 Percent change
2011 2011 June '10 to
June '11
Jan.[r] Feb.[r] Mar.[r] Apr.[r] May[r] June[p] Jan.[r] Feb.[r] Mar.[r] Apr.[r] May[r] June[p]

Total index 92.8 92.5 93.1 93.0 92.9 93.1 .2 -.3 .7 -.1 -.1 .2 3.4
Previous estimates 92.7 92.4 92.9 92.9 93.0   .1 -.3 .6 .0 .1

Major market groups
Final Products 94.6 94.3 94.5 94.4 94.6 94.4 .8 -.3 .2 .0 .1 -.2 3.1
Consumer goods 93.7 93.0 93.3 93.2 93.0 93.0 .4 -.7 .3 -.1 -.3 .0 1.4
Business equipment 94.1 94.8 94.5 94.3 95.4 94.7 1.9 .8 -.3 -.3 1.2 -.7 7.7
Nonindustrial supplies 83.2 83.0 83.7 83.6 83.5 83.7 -.1 -.3 .8 -.1 -.1 .2 1.4
Construction 74.9 74.5 75.3 75.4 76.3 76.5 .7 -.6 1.2 .1 1.1 .3 4.0
Materials 94.5 94.1 95.1 94.9 94.6 95.1 -.2 -.4 1.1 -.2 -.3 .5 4.3

Major industry groups
Manufacturing (see note below) 89.4 89.5 90.1 89.7 89.7 89.8 .7 .1 .6 -.5 .1 .0 3.7
Previous estimates 89.3 89.4 89.9 89.4 89.8   .6 .1 .6 -.5 .4
Mining 104.0 102.6 104.4 104.7 105.4 106.0 -.6 -1.3 1.7 .3 .7 .5 6.1
Utilities 103.4 101.0 100.7 102.0 100.0 100.9 -1.7 -2.3 -.3 1.4 -2.0 .9 -1.5

Capacity utilization Percent of capacity Capacity
growth
Average
1972-
2010
1988-
89
high
1990-
91
low
1994-
95
high
2008-
09
low

2010
June

2011 June '10 to
June '11
Jan.[r] Feb.[r] Mar.[r] Apr.[r] May[r] June[p]

Total industry 80.4 85.2 78.8 85.1 67.3 74.5 76.9 76.6 77.0 76.8 76.7 76.7 .4
Previous estimates             76.8 76.5 76.8 76.7 76.7

Manufacturing (see note below) 79.0 85.5 77.3 84.7 64.4 71.7 74.3 74.4 74.8 74.4 74.4 74.4 .0
Previous estimates             74.2 74.3 74.7 74.2 74.5
Mining 87.4 86.3 83.8 88.5 79.0 85.2 88.2 86.8 88.1 88.2 88.6 88.9 1.7
Utilities 86.6 92.9 84.3 93.3 79.2 83.2 82.1 80.0 79.6 80.6 78.8 79.5 3.2

Stage-of-process groups
Crude 86.4 87.7 84.3 89.6 77.6 84.5 87.2 86.2 87.3 87.1 87.0 87.2 1.4
Primary and semifinished 81.3 86.5 77.9 87.9 64.9 72.3 74.3 73.7 74.1 73.9 73.7 74.1 -.4
Finished 77.3 83.3 77.4 80.7 66.8 73.1 75.7 75.9 76.1 75.9 75.8 75.4 1.2
r Revised. p Preliminary.
Market Groups

Production recorded a mix of gains and losses across the major market groups in June. Output for the second quarter as a whole moved up in most of the major market groups, although the production of consumer goods decreased at an annual rate of 1.2 percent. Declines in the output of consumer goods occurred for both durables and nondurables. In June, the production of consumer goods was unchanged, with a decline of 0.5 percent in durables offsetting an increase of 0.2 percent in nondurables. Among consumer durables, lower production of automotive products; appliances, furniture, and carpeting; and miscellaneous goods more than offset a small gain in home electronics. Within consumer nondurables, the output of non-energy nondurables was unchanged; increased output of chemical products was offset by declines elsewhere. The index for consumer energy products moved up 0.8 percent, with gains in the indexes for fuels and for residential utilities.

The production of business equipment declined 0.7 percent in June, with transit equipment and information processing equipment recording decreases of 1.9 percent and 1.4 percent, respectively, and industrial and other equipment being little changed. The output of business equipment increased at an annual rate of only 1.2 percent in the second quarter after gains averaging more than 12 percent over the previous five quarters. An increase of 7.0 percent in the production of transit equipment accounted for most of the rise in business equipment in the second quarter; the output of information processing equipment fell, and the output of industrial and other equipment was little changed.

In June, the index for defense and space equipment decreased 1.4 percent after having registered gains in each of the previous five months.

The output of construction supplies increased for the fourth consecutive month in June and climbed at an annual rate of 6.4 percent in the second quarter. The production of business supplies rose in June after having declined in both April and May and was little changed for the second quarter as a whole.

The output of materials to be further processed in the industrial sector increased 0.5 percent in June. The output of durable materials rose 0.7 percent. The indexes for all of its major categories advanced; the largest gain was an increase of 1.7 percent for consumer parts following two consecutive monthly declines. The index for nondurable materials edged down in June, while gains in both oil production and electricity generation helped boost the index for energy materials 0.8 percent. For the second quarter, materials output increased at an annual rate of 1.3 percent. The production of durable materials rose 1.1 percent, with gains in equipment parts and other durable materials more than offsetting a sizable decline in consumer parts. The output of nondurable materials moved down 3.9 percent; declines in chemical materials and paper materials more than offset a large increase for textile materials. The index for energy materials rose 5.2 percent.

Industry Groups

Manufacturing output was unchanged in June. For the second quarter as a whole, the manufacturing index edged up at an annual rate of 0.2 percent, a notably smaller gain than in any quarter since the recession ended in the second quarter of 2009. Capacity utilization for manufacturing was unchanged in June at 74.4 percent, a rate about 10 percentage points above its trough in June 2009 but 4.6 percentage points below its average from 1972 to 2010.

The production index for durable goods manufacturing was unchanged in June. Among its major categories, the largest increases were for primary metals and fabricated metal products, whereas the most significant decreases were for furniture and related products, motor vehicles and parts, and wood products. For the second quarter, durable manufacturing rose at an annual rate of 1.4 percent. Robust gains were recorded in aerospace and miscellaneous transportation equipment, nonmetallic mineral products, and fabricated metal products. However, these gains were mostly offset by a large drop for motor vehicles and parts along with decreases for electrical equipment, appliances, and components and for wood products.

The index for nondurable manufacturing increased 0.1 percent in June; higher output of textile and product mills, petroleum and coal products, and chemicals slightly more than offset lower output in other nondurable categories. For the second quarter, nondurables output decreased at an annual rate of 0.2 percent. Production in the non-NAICS manufacturing industries (logging and publishing) decreased 0.5 percent in June and dropped at an annual rate of 9.4 percent for the second quarter as a whole.

In June, the production index for utilities increased 0.9 percent; its operating rate rose to 79.5 percent, but that rate remained 7.1 percentage points below its 1972--2010 average. Mining output increased for the fourth consecutive month in June and rose at an annual rate of 6.7 percent for the second quarter, primarily as a result of gains in natural gas extraction. Capacity utilization in mining climbed to 88.9 percent in June, a rate 1.5 percentage points above its average from 1972 to 2010.

Capacity utilization rates in June at industries grouped by stage of process were as follows: At the crude stage, utilization increased 0.2 percentage point to 87.2 percent, a rate 0.8 percentage point above its long-run (1972--2010) average; at the primary and semifinished stages, utilization rose 0.4 percentage point to 74.1 percent, a rate 7.2 percentage points below its long-run average; and at the finished stage, utilization decreased 0.4 percentage point to 75.4 percent, a rate 1.9 percentage points below its long-run average.

Note. The statistics in this release cover output, capacity, and capacity utilization in the U.S. industrial sector, which is defined by the Federal Reserve to comprise manufacturing, mining, and electric and gas utilities. Mining is defined as all industries in sector 21 of the North American Industry Classification System (NAICS); electric and gas utilities are those in NAICS sectors 2211 and 2212. Manufacturing comprises NAICS manufacturing industries (sector 31-33) plus the logging industry and the newspaper, periodical, book, and directory publishing industries. Logging and publishing are classified elsewhere in NAICS (under agriculture and information respectively), but historically they were considered to be manufacturing and were included in the industrial sector under the Standard Industrial Classification (SIC) system. In December 2002 the Federal Reserve reclassified all its industrial output data from the SIC system to NAICS.

G.17 Release Tables:

Summary: Industrial Production and Capacity Utilization

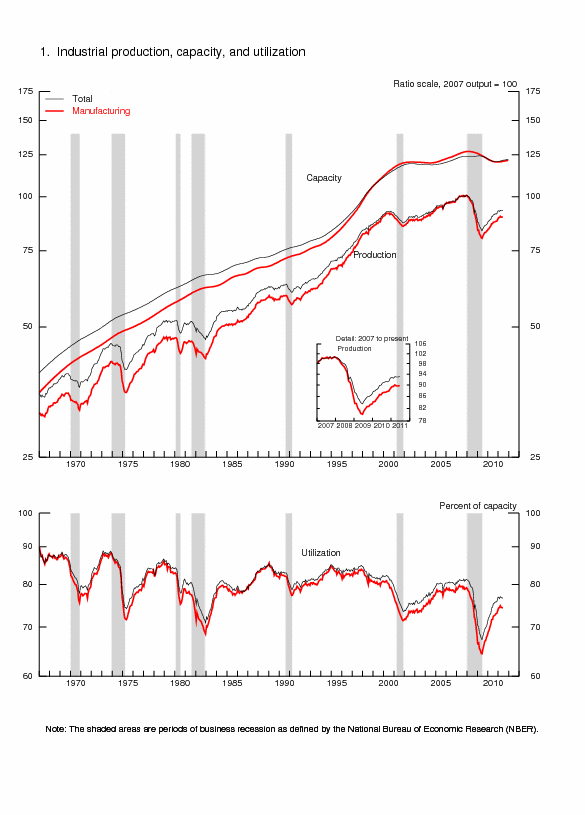

Chart 1: Industrial Production, Capacity, and Capacity Utilization

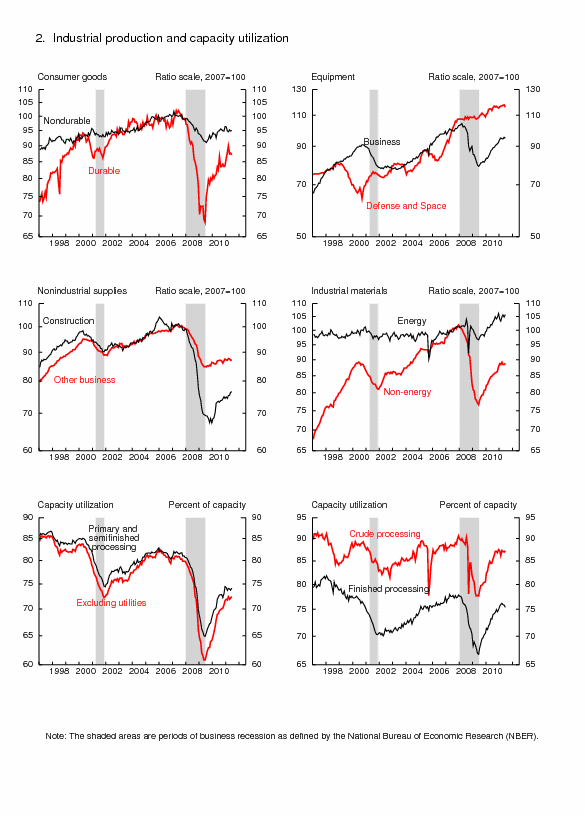

Chart 2: Industrial Production and Capacity Utilization

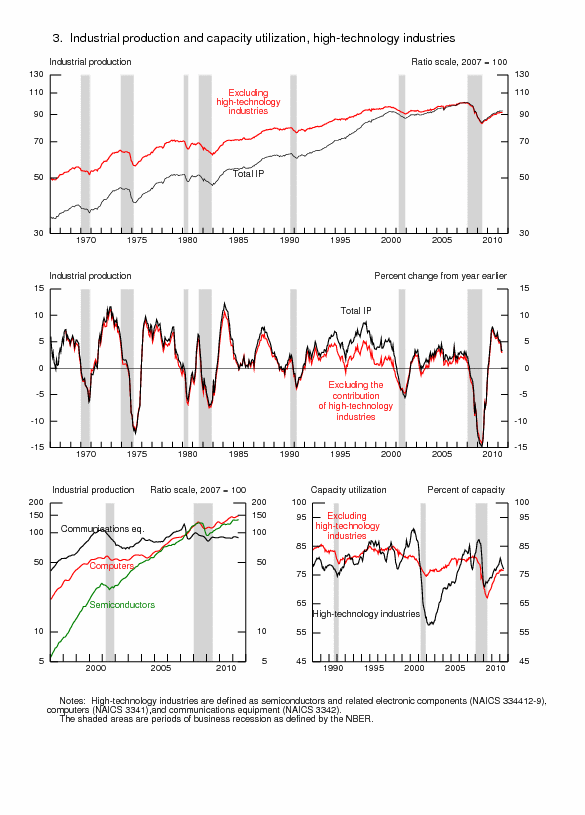

Chart 3: Industrial Production and Capacity Utilization, High Technology Industries
Table 1: Industrial Production: Market and Industry Groups (percent change)
Table 2: Industrial Production: Special Aggregates and Selected Detail (percent change)
Table 3: Motor Vehicle Assemblies
Table 4: Industrial Production Indexes: Market and Industry Group Summary
Table 5: Industrial Production Indexes: Special Aggregates
Table 6: Diffusion Indexes of Industrial Production
Table 7: Capacity Utilization: Manufacturing, Mining, and Utilities
Table 8: Industrial Capacity: Manufacturing, Mining, and Utilities (percent change)
Table 9: Industrial Production: Gross Value of Products and Nonindustrial Supplies
Table 10: Gross-Value-Weighted Industrial Production: Stage-of-Process Groups
Table 11: Historical Statistics for IP, Capacity, and Utilization: Total Industry
Table 12: Historical Statistics for IP, Capacity, and Utilization: Manufacturing
Table 13: Historical Statistics for IP, Capacity, and Utilization: Total Industry excluding Selected High-Technology Industries
Table 14: Historical Statistics for IP, Capacity, and Utilization: Manufacturing excluding Selected High-Technology Industries

Return to top

Last update: July 15, 2011
